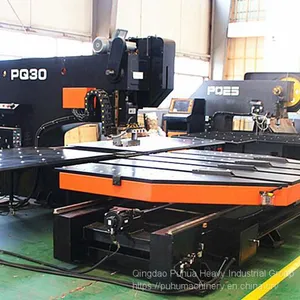

Mechanical CNC punch, Automatic programming positioning punch machine
Product Description
1. Industrial computer numerical control system, AMADA company development numerical control processing software, can achieve the field programming, backstage programming; 19 inch brand LCD monitor, the picture is more clear and beautiful; Software convenient operation, bring their own mould library management, can identify CAD drawings automatically generate CNC code, and realize the automatic programming, automatic feeding, automatic stamping, high speed, high accuracy.
2. Adopts our company independent research and development the in-line arrangement die-set, can realize the automatic changing mould, match the internationally used standard mould and easy to change.
3. Servo motor, linear guide rail, ball screw, coupling and pneumatic components and electrical parts were imported brand. To ensure the machines’ accuracy and stability
4. Use centralized lubricating system, automatic return oil, ball screw , guide and other major transmission parts are f centralized lubrication, prolong the machines’ service life.
No. |
Item Catalogry |
01 |
AMD-H thick plate CNC punching machine AMD-H |
02 |
AMD-PQ platform CNC punching machine |
Specification
Max. Length *Width |
1000*1000mm /1250*1000/2500*1250/4000*1250 |
Max. Process Thickness |
6mm |
Linear Feeding Speed |
20m/min |
Rated Power |
2KW |
Feeding Accuracy |
±0.15mm |
Machine Size (length*width*height) |
3200*1700*900 |
Environmental Conditions of the Machine | |
Power |
380V ± 10%, 50HZ |
Temperature |
5 - 40°C (for machine operation) |
Relative Humidity |
20 – 80%RH |
Note |
1. Keep this machine away from a strong shock source |
