AMD357 auto CNC punching installation for beam
Mechanical CNC punch, auto punch machine
AMD357 auto CNC punching installation for beam
Product Description

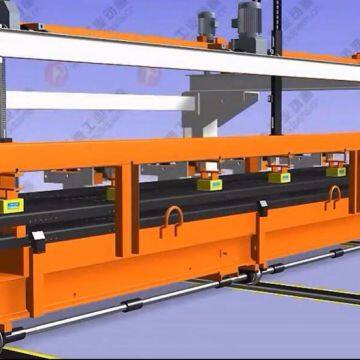

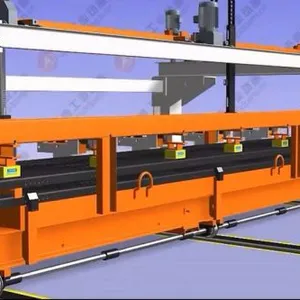

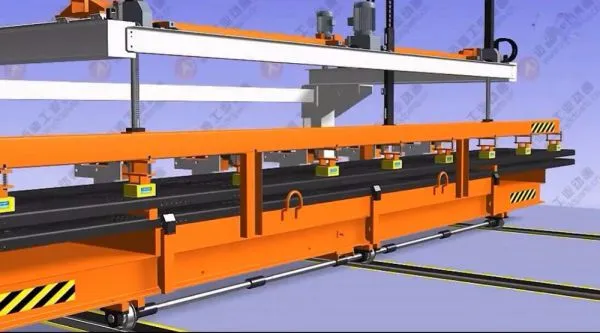

AMD-357CNC flexible metal-forming plant is producted in machining the fore-and-aft beam platform of vehicle frame. Main components of the plant are 3-column CNC punching unit with linear tool, auto-programed positioning system, mechanical positioning system(optional),material-loading device, material-unloading device, waste-discharging device and CNC system.
AM7-30 Mechanical |
AM8-30 Hydraulic |
AM10-30 Hydraulic |
|
Capacity(kn) |
300 |
300 |
300 |
Max. Machining Sheet (Repositioning)(mm) |
1250×2500 |
1250×4000 |
1250×5000 |
Punching Frequency(hpm) |
270 |
450/※600 |
450/※600 |
Max. Weight(kg) |
165 |
165 |
235 |
Max. Speed(m/min) |
106 |
106 |
106 |
Max. Plate Thk(mm) |
6.35 |
6.35 |
6.35 |
Max. Punching Dia.(mm) |
88.9 |
88.9 |
88.9 |
Die Qty. |
32/※24 |
32/※24 |
32/※24 |
Outline Size |
5340×2700×2150 |
5340×2700×2150 |
6100×4200×2200 |
Our Service
1. Installation and commissioning issue:
We will send 1-2 technicians to assist with machine installation and commissioning,
customer pays for their tickets, hotel and diet, etc Customer need arrange
3-4 skilled worker and prepare insallation machinery and tools.
2. Warranty time:
12 months from date of commissioning completion, but no more than 18 months from date of delivery.
3. Supply full English documents:
including foundation drawings, manual book, electric wiring diagram, electric manual book and maintenance book,etc.
