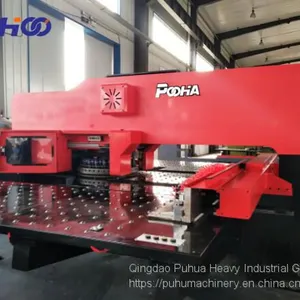

Help CenterAMD-357 2 Auto-index Hydraulic Cnc Turret Punch Machine
Related Products
-
Platform Cnc Punch MachineUS$ 1 - 100000MOQ: 1 Set -
Car Girder Cnc Punching Production LineUS$ 1 - 100000MOQ: 1 Set
-
Hydraulic Thick Plate Cnc Punching MachineUS$ 1 - 100000MOQ: 1 Set
-
Servo Type Cnc Turret Punching MachineUS$ 1 - 100000MOQ: 1 Set
-
AMD-357 Closed Type Hydraulic Cnc Turret Punch MachineUS$ 1 - 100000MOQ: 1 Set

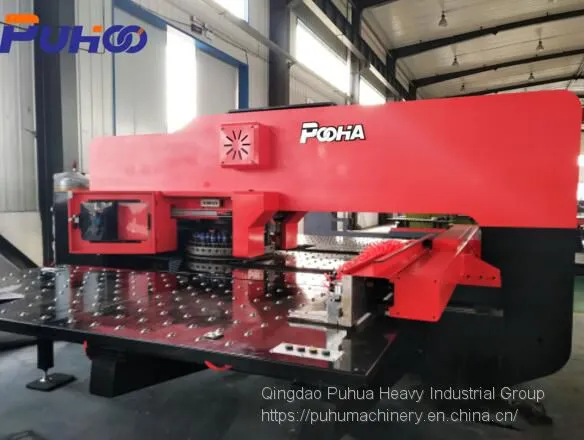

auto index punch machine
Item No.: 14
Our company mainly produces CNC punch press machine
Feature:
1. Adopts Siemens 3/4 axis CNC special system and match up digital AC servo motor to make it fast and reliable;
2. Fuselage is O type Steel welding, the whole pass by tempering treatment to own good rigid and hardly deformation;
3. With the second positioning function, can achieve without dead zone processing;
4. The transmission system use the international brand with high precision, big guide the ball screw, linear guide rail are high precision and good performance;
5. Main pneumatic components, electric components, hydraulic components and transmission adopt perfectly;
6. Use AMADA standards casting integrated thick turret mold disc and standards internationally general thick molds.
China auto index punch machine manufacturer:Qingdao Puhua Heavy Industrial Group
Technical parameters
Specification |
Unit |
AMD-357 |
Transmission mode |
/ |
hydraulic |
Punch force |
KN |
300 |
Power rating |
KW |
20 |
Processing sheet size |
MM |
2500*1250 |
Processing sheet thickness |
MM |
≤6 |
Max. Punch diameter |
MM |
Ø88.9 |
Sheet moving speed |
M/MIN |
60 |
Punching frequency |
HPM |
600 |
Hole accuracy |
MM |
±0.1 |
Number of stations in turret disc |
No. |
16/24/32 |
Turret rotational speed |
RPM |
300 |
Controlled axis |
No. |
3/4 |
Rotating location |
No. |
0/2 |
Air pressure |
Mpa |
≥0.8 |
Outline Dimension |
MM |
4490*5300*2110 |
Machine Weight |
T |
12/13 |
