NC hydraulic high-speed pipe punching machine
USD $5.00 - $15.00
/ Set
1 Set(Min.Order)
- 20 Set / Sets per Month
- ShenZhen/GuangZhou
- T/T Credit Card
You May Like
-
NC Hydraulic Stainless Steel pipe punching machine
-
Hydraulic Metal Pipe Notching Machine
-
CNC Iron Square/Rectangle Metal Pipe Punching and Cutting Machine
-
Iron Tube Hydraulic Automatic Notching Machine
-
NC Hydraulic Full Automatic Steel Pipe Notching Machine
-
Hydraulic Steel Pipe Notching And Cutting Machine
Product Details
| Brand Name | Chine Chern | Place of Origin | Guangdong, China | |
| Model Number | JC-CKJ-100-3 | After-sales Service Provided | Overseas service center available |
Product Description
NC hydraulic high-speed pipe punching machine
Characteristics:
1. Fully automatic pipe punching machine applied in shelf, guardrail ,round pipe ,square pipe .
2.Pipe size: 80mm & 40*80mm
3.We can change different mould for different shapes.Hydraulic system controlls clamping ,up and down.the location of work piece is controlled by servo motor (X axis),the whole machine adopts microcomputer ,we can set the parameters and change the operation by touch screen panel.
4.We can punch holes for same hole distance and different hole distance as per request .
Technical parameters:
| Main Technical Parameter: | |||||||
| Item | JC-CKJ-100-3 | ||||||
| Max pipe specification | 8040*80mm | ||||||
| Max process wall thickness | 2.0mm(Steel pipe) | ||||||
| Punching hole size | 5mm-10mm(Customise as per the request) | ||||||
| Max feeding length once | 1500mm | ||||||
| Continously process hole quantity | Not limited | ||||||
| Max work piece length | 6000mm | ||||||
| Work efficiency | 2-3seconds/Hole | ||||||
| Max feeding speed | 1000mm/seconds | ||||||
| Rectilinear accuracy(servo motor) | ±0.05mm | ||||||
| Operation mode | Automatic/Manual/Touch screen | ||||||
| Load/Unload Material mode | Manual | ||||||
| Machine weight | 900kg | ||||||
| Power supply | 380° ±10V ,50HZ | ||||||
| Total power | 8.5KW | ||||||
| Max work pressure | 140Mpa | ||||||
| hydro-cylinder diameter | 100mm×3pieces | ||||||
| Machine dimension | L2500×W650×H1300mm | ||||||

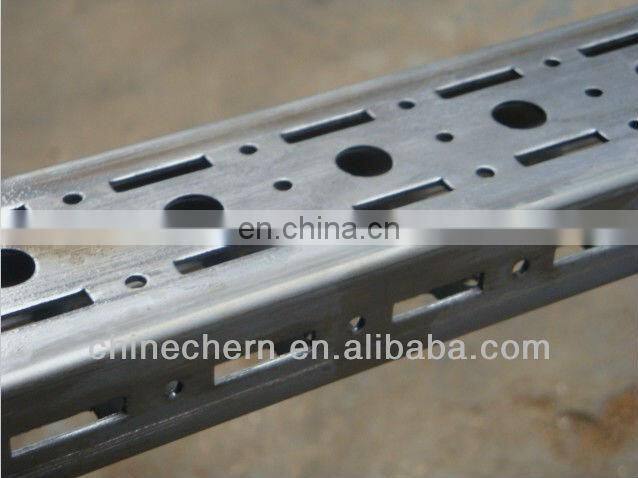

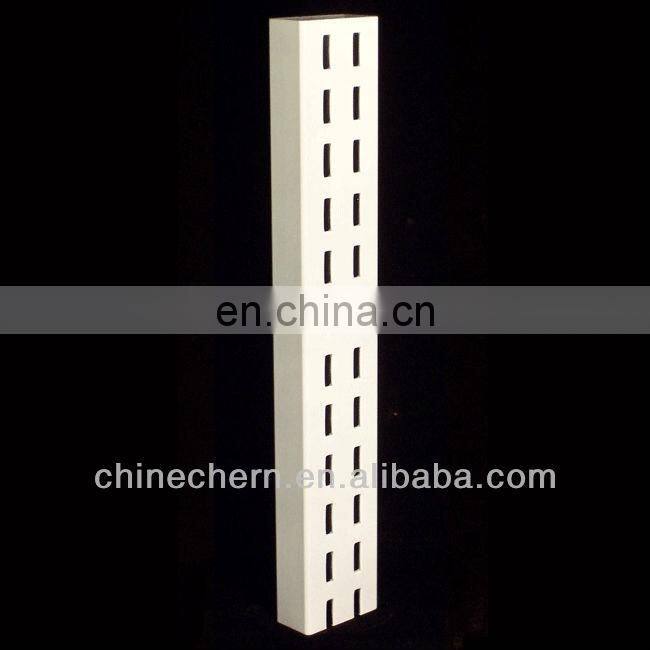

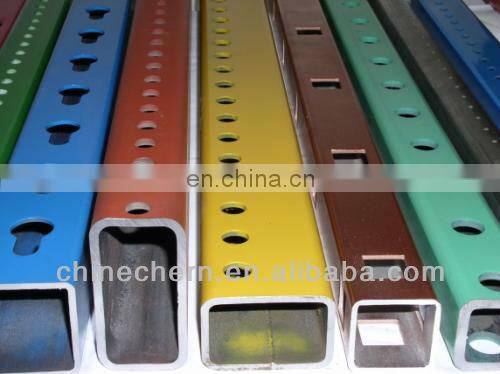

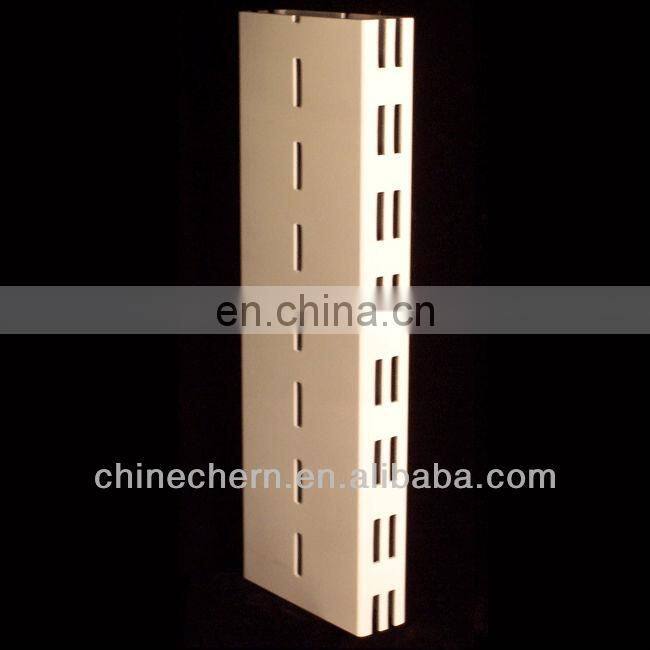

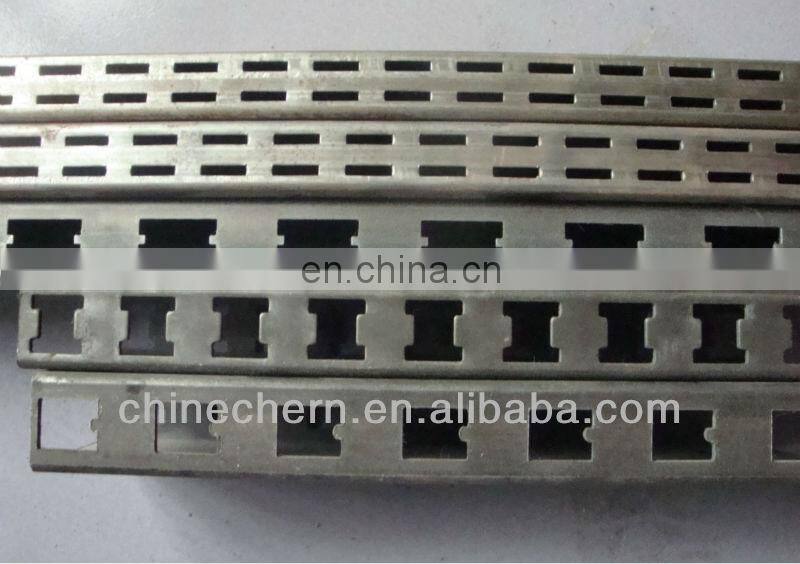

Samples:
Machine Picture :
