NC Hydraulic Stainless Steel Pipe Punching Machine

NC Hydraulic Stainless Steel Pipe Punching Machine thumbnail-1
NC Hydraulic Stainless Steel Pipe Punching Machine thumbnail-2
NC Hydraulic Stainless Steel Pipe Punching Machine thumbnail-3
NC Hydraulic Stainless Steel Pipe Punching Machine thumbnail-4
NC Hydraulic Stainless Steel Pipe Punching Machine thumbnail-5
NC Hydraulic Stainless Steel Pipe Punching Machine photo-1
NC Hydraulic Stainless Steel Pipe Punching Machine photo-2
NC Hydraulic Stainless Steel Pipe Punching Machine photo-3
NC Hydraulic Stainless Steel Pipe Punching Machine photo-4
NC Hydraulic Stainless Steel Pipe Punching Machine photo-5
US$ 5.00 - 15.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Chine Chern
Place of Origin:
Guangdong, China
Model Number:
JC-CKJ-150-1
Contact Supplier Request Quote Chat Now
Smarting Import&Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen/GuangZhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Chine Chern
Place of Origin Guangdong, China
Model Number JC-CKJ-150-1
After-sales Service Provided Overseas service center available

NC Hydraulic pipe punching machine



Characteristics:



  • Hole  distance is controlled by oil cylinder (Feeding oil cylinder ) NC Hydraulic Stainless Steel pipe punching machine
  • Hole  quantities are controlled by operataion panel
  • Puch same distance of hole only
  • Puch one side or two sides of the pipe(optional)





Technical parameters:





Item JC-CKJ-150-1
Max pipe specification 80mm×80mm( Steel pipe,Zinc steel pipe,stainless steel pipe)
Max process wall thickness 3.0mm
Punching hole size 4mm-20mm/4.5mm×16mm(Customise as per the request)
Max feeding length once 125mm
Continously process hole quantity Not limited
Max work piece length 6000mm
Work efficiency 2.5-3.5seconds/Hole
Max feeding speed 800mm/seconds
Rectilinear accuracy(Oil cylinder feed ) ±0.1mm
Operation mode Automatic/Manual/Touch switch
Load/Unload Material mode Manual
Machine weight 500kg
Power supply 380° ±10V ,50HZ
Voltage 3-phase 380V 50HZ
Total power 10KW
Max work pressure 170Mpa
hydro-cylinder diameter 150mm
Machine dimension L1650×W700×H1450mm
Packing dimension L1800×W800×H1450mm

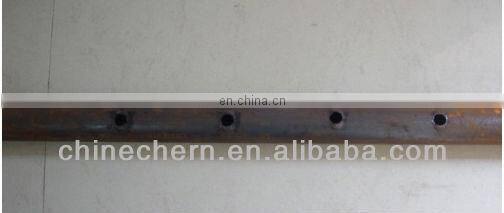

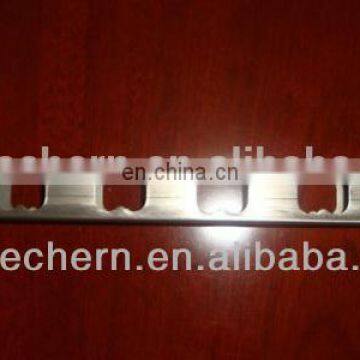

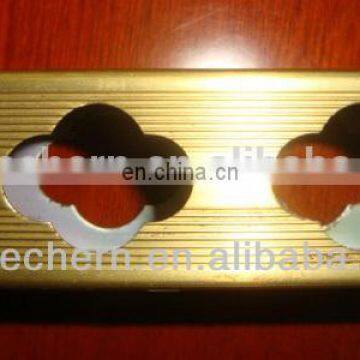

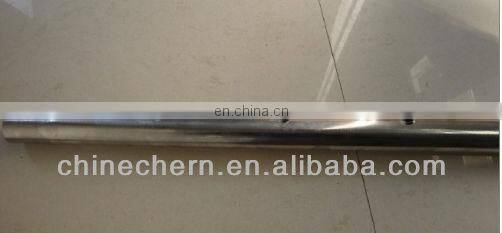

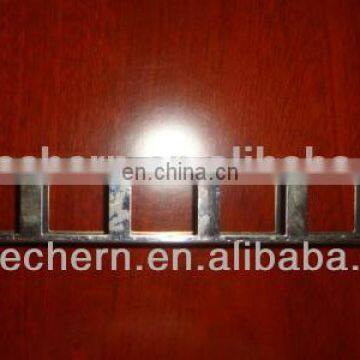

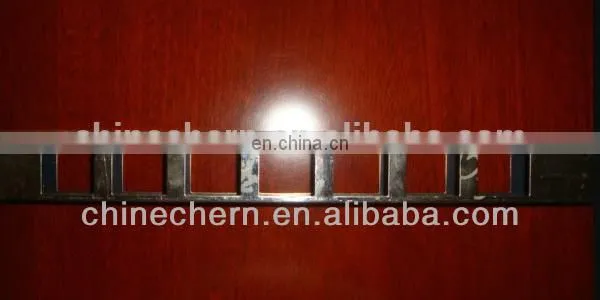

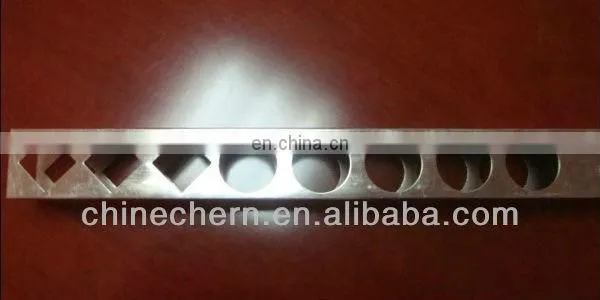

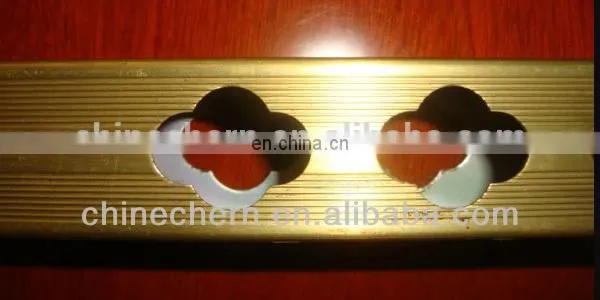

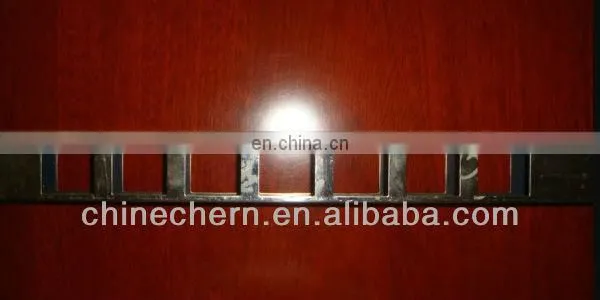

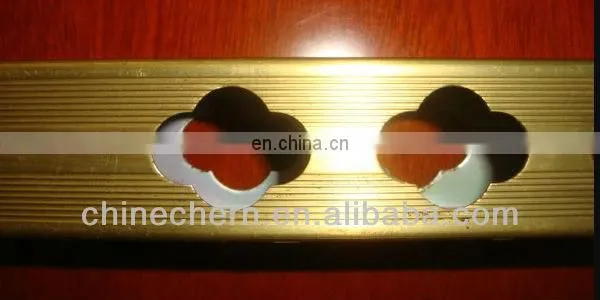

Puching Samples:



 NC Hydraulic Stainless Steel pipe punching machineNC Hydraulic Stainless Steel pipe punching machineNC Hydraulic Stainless Steel pipe punching machineNC Hydraulic Stainless Steel pipe punching machineNC Hydraulic Stainless Steel pipe punching machineNC Hydraulic Stainless Steel pipe punching machine



Machine Picture :



NC Hydraulic Stainless Steel pipe punching machine
