CNC Iron Square/Rectangle Metal Pipe Punching and Cutting Machine
Main Features:
1. Fully automatic pipe punching machine applied in shelf, guardrail ,round pipe ,square pipe .
Servo Motor feed, Hydrau-Cylinder punch holes . High accuracy .
2.Pipe size: 80mm & 80*80mm,Stainless steel pipe wall thickness: Max 1.5mm.
Iron Pipe size: 80mm & 80*80mm,Iron pipe wall thickness: Max 3mm(As per requirement )
3.We can change different mould for different shapes.Hydraulic system controls clamping ,up and down.the location of work piece is controlled by servo motor (X axis),the whole machine adopts microcomputer ,we can set the parameters and change the operation by touch screen panel.
4.We can punch holes for same hole distance and different hole distance as per request .
5. The punching hole is not be deformation,Smooth surface,The shape can be customised as per the drawing .
6. Servo Motor feed is more accurate. Step motor & servo motor keep same step.
7. Changing Mould is Simple. Even though Not professional staff can unload it and fix it by screws.
Parameters:
| Item | JC-CKJ-100-4 | ||||||
| Max pipe specification | 80/80mm×80mm( Iron pipe) | ||||||
| Max process wall thickness | 3mm(Iron Pipe ) | ||||||
| Punching hole size | As per drawing | ||||||
| Max feeding length once | 1500mm | ||||||
| Continously process hole quantity | Not limited | ||||||
| Max work piece length | 6000mm | ||||||
| Work efficiency | 2-3Seconds/Hole | ||||||
| Max feeding speed | 1000mm/seconds | ||||||
| Linear Motion accuracy(Servo Motor feed ) | ±0.05mm | ||||||
| Operation mode | Automatic/Manual/Touch switch | ||||||
| Load/Unload Material mode | Manual | ||||||
| Machine weight | 900kg | ||||||
| Power supply | 380° ±10V ,50HZ | ||||||
| Voltage | 3-phase 380V 50HZ | ||||||
| Total power | 9KW | ||||||
| Max work pressure | 170Mpa | ||||||
| hydro-cylinder diameter | 100mm×4 | ||||||
| Machine dimension | L3000×W1300×H1900mm | ||||||
| Standard fittings | 1. One set punching tool 2.One HSS Saw Blade 3.One tool box | ||||||
Metal Pipe Samples :

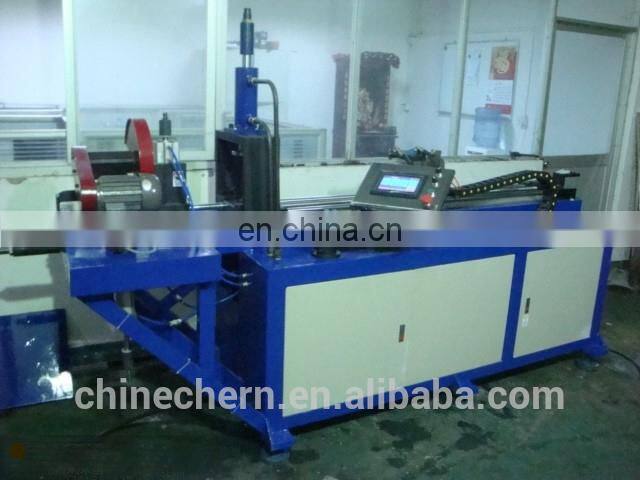

Machine Picture :
