Iron Tube Hydraulic Automatic Notching Machine
Main Functions :
- Hole quantities are controlled by operataion panel
- Puch same distance of hole only
- Puch one side or two sides of the pipe(optional)
- It is suitale for iron pipe,stainless steel pipe and carbon steel pipe ,aluminum pipe and so on.
- All kinds of shapes can be processed by special mould.
- We can customise the machine as per the corresponding drawing .
Technological Parameters :
| Item | ZD-CKJ-100-2 | ||||||
| Max pipe out diameter | 80mm/80mm×80mm( Steel pipe) | ||||||
| Max process wall thickness | 3.0mm | ||||||
| Punching hole size | 4mm-20mm/4.5mm×16mm(Customise as per the request-14mm) | ||||||
| Max feeding length once | 125mm | ||||||
| Continously process hole quantity | Not limited | ||||||
| Max work piece length | 6000mm | ||||||
| Work efficiency | 2.5-3.5seconds/Hole | ||||||
| Max feeding speed | 800mm/seconds | ||||||
| Rectilinear accuracy(Oil cylinder feed ) | ±0.1mm | ||||||
| Operation mode | Automatic/Manual/Touch switch | ||||||
| Load/Unload Material mode | Manual | ||||||
| Machine weight | 500kg | ||||||
| Power supply | 380° ±10V ,50HZ | ||||||
| Voltage | 3-phase 380V 50HZ | ||||||
| Total power | 10KW | ||||||
| Max work pressure | 140Mpa | ||||||
| hydrau-cylinder diameter | 100mm × 2 | ||||||
| Machine dimension | L1650×W750×H1450mm | ||||||

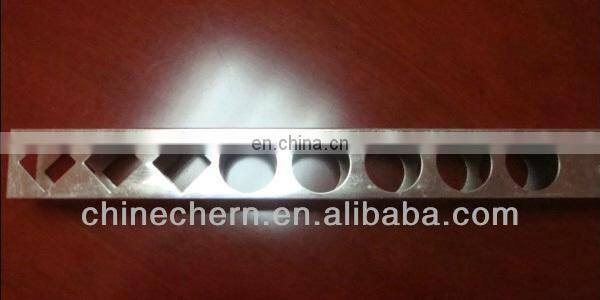

Samples :
Machine Picture :
