High Speed HSS Saw Blade Sharpening/Grinding Machinery
- 20 Set / Sets per Month
- ShenZhen/GuangZhou
- T/T Credit Card
- Full-Automatic HSS Circular Saw Blade Sharpening Machine
- Slitting Knife and Circular Knife Grinding Machine
- Circular saw blade teeth modification small grinding machine
- CNC High Accuracy HSS Saw Blade Grinding Machine
- TCT Saw Blade Sharpening Machine For Woodworking Industry
- Hydraulic Semi-automatic Pipe tapering machine
Product Details
Brand Name: | Chine Chern | Place of Origin: | Taiwan | Model Number: | JC-500CNC |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
High Speed HSS Saw Blade Sharpening/Grinding Machinery
Features:
JC-500 CBN.CNC full automatic computer numerical control circular saw machine is made by the innovated technology; it is full automatic CNC processing center controlled and is with precise structure, its speed is faster than other equipments of the same rank.
JC-500, the CNC saw blade grinder, its foundation is made of spheroid graphite ductile iron FCD-45, that is with good vibration state damping and well movement performance, it may improve the finishing, and its thermal conductivity is low, so that the affection that caused by the environmental temperature change is little, and it does not distort. Therefore, it can maintain the stability of the machine and promote the precision and the service life.
JC-500 CBN saw blade grinder is mainly suitable for the customer such as pipe & tube machinery manufacturer, pipe making manufacturer, pipe cutter manufacturer, saw blade manufacturer, and saw blade sharpening manufacturer, furniture manufacturer, bicycle manufacturer and automobile manufacturer.
Novel design and perfect streamline enhance JC-500 CBN on its unique outstanding style. There is a fine view to watch the working situation from the large window, and it is also very convenient to open the arc gate to replace the saw blade.
JC-500 CNC saw blade grinder is a four axle servo-control CNC saw blade grinder; the outer diameter, the number of teeth (gears), the attrition quantity, the angle of cutting, the back clearance cutting angle can be automatically set up and controlled.
The CNC saw blade grinder adapts 10.4” TFT-LCD monitor; it is outfitted with the dialogue type operation screen, the machine will automatically finish the gridding job only by inputting simple data.
Advanced software design: The outer diameter, the number of teeth, the tooth depth, cutting angle, back clearance angle, feeding rate and the grinding wheel rotation speed can be all numerically input. Easy operation, even if you are not the senior technician.
The functional CNC controller may provide you the ideal processing performance according to the majority demands. Ultra strong memory storing function: it can be inputted 9999 set of saw blade attrition parameter, it will show you the saw blade records on the screen within few seconds, it will save a lot of time on reset.
The JC-500CNC series of circular cold saw blade sharpener is the perfect complement for the customer who has multiple automatic or semi-automatic CNC cold saw blades that for higher production runs.
Bringing cold saw blade sharpening in house allows the manufacturer to reduce sharpening costs allowing for quick turnarounds (compared to outsourcing cold saw blade sharpening).
By eliminating time consuming adjustments, the productivity is increased on account of the simplicity designed into our sharpeners. The manufacturer or fabricator can sharpen the saw blades economically and quickly right in their own shop. Furthermore, It also increases efficiency due to the saw blades can be sharpened to the exact specifications without delay.
Parameters:
Saw Blade Diameter: Ø35 ~ Ø500mm(35-65 optional) | Saw Blade Clamp Ø130mm(1set) | Saw Blade Adjusting Sest Ø35mm(1 set) |
Chamfering Range:200 - 450 mm | Saw Blade Clamp Ø180mm(1set) | Saw Blade Adjusting Sest Ø65mm(1 set) |
Number of Teeth: 10 ~ 998 Teeth | Saw Blade Clamp Ø210mm(1set) | Saw Blade Clamp Ø35mm(1 set) |
Saw Blade Thickness: Max. 8mm | Saw Blade Clamp Ø260mm(1set) | Saw Blade Clamp Ø65mm(1 set) |
Cutting Angle: 0° ~ 30° | Saw Blade Clamp Ø310mm(1set) | Saw Blade Clamp Ø90mm(1 set) |
Grinding Speed: 1 ~ 60 Teeth / Min | Saw Blade Adjusting Sest Ø90mm(1set) | Saw Blade Clamp Ø360mm(1 set) |
Wheel Diameter: Ø200mm | Fully Enclosed Splash Guard(1pc) | Saw Blade Clamp Ø410mm(1 set) |
Wheel Bore: Ø32mm | Quartz Work Light(1pc) | Saw Blade Clamp Ø460mm(1 set) |
Wheel Thickness: Max. 8mm | High Pressure Coolant System(1set) | Automatic Voltage Stabilizer A.V.R.(1pc) |
Wheel Motor: 4.0kw | Automatic Lubrication System(1set) | Stainless Steel Splash Guard(1pc) |
Wheel Rotation Speed: 2,500 ~ 6,000rpm | Heat Exchanger for Electrical Cabinet(1set) | Diamond Dressing Bar(1pc) |
X-axis Motor: AC Servomotor | Tool Kit(1set) | Grinding Wheel Dresser(1pc) |
Z-axis Motor: AC Servomotor | Oil Mist Collector(1set) | Cutting Oil(1pail) |
B-axis Motor: AC Servomotor | Cutting Oil(1pail) | Slide Lubrication Oil(1pail) |
Y-axis Motor: AC Servomotor | CBN Grinding Wheel Ø200x1.6x32(1pc) | CBN Gringind Wheel Ø200x1.0x32(1pc) |
Coolant Pump Motor: 1.5kw | CBN Grinding Wheel Ø200x2.0x32(1pc) | CBN Gringind Wheel Ø200x1.2x32(1pc) |
Oil Mist Recycle Device:0.55kw | - | CBN Gringind Wheel Ø200x1.3x32(1pc) |
Magnetic Filter:25w | - | CBN Gringind Wheel Ø200x1.4x32(1pc) |
Power Required: 8.6kw | - | CBN Gringind Wheel Ø200x1.5x32(1pc) |
Net Weight:1100kg | - | CBN Gringind Wheel Ø200x1.6x32(1pc) |
Gross Weight:1460kg | - | CBN Gringind Wheel |
Packing Dimensions: 1,760 x 1,830 x 1,980mm (W x H x D) | - | Ø200x1.75x32(1pc) |
- | - | CBN Gringind Wheel Ø200x1.8x32(1pc) |
- | - | CBN Gringind Wheel Ø200x2.0x32(1pc) |
- | - | CBN Gringind Wheel Ø200x2.25x32(1pc) |
- | - | CBN Gringind Wheel Ø200x2.5x32(1pc) |
- | - | CBN Gringind Wheel Ø200x4.0x32(1pc) |
- | - | CBN Gringind Wheel Ø200x5.0x32(1pc) |
- | - | CBN Gringind Wheel Ø200x5.5x32(1pc) |
- | - | CBN Gringind Wheel Ø200x6.0x32(1pc) |
- | - | CBN Gringind Wheel Ø200x6.5x32(1pc) |
HSS Saw Blade :

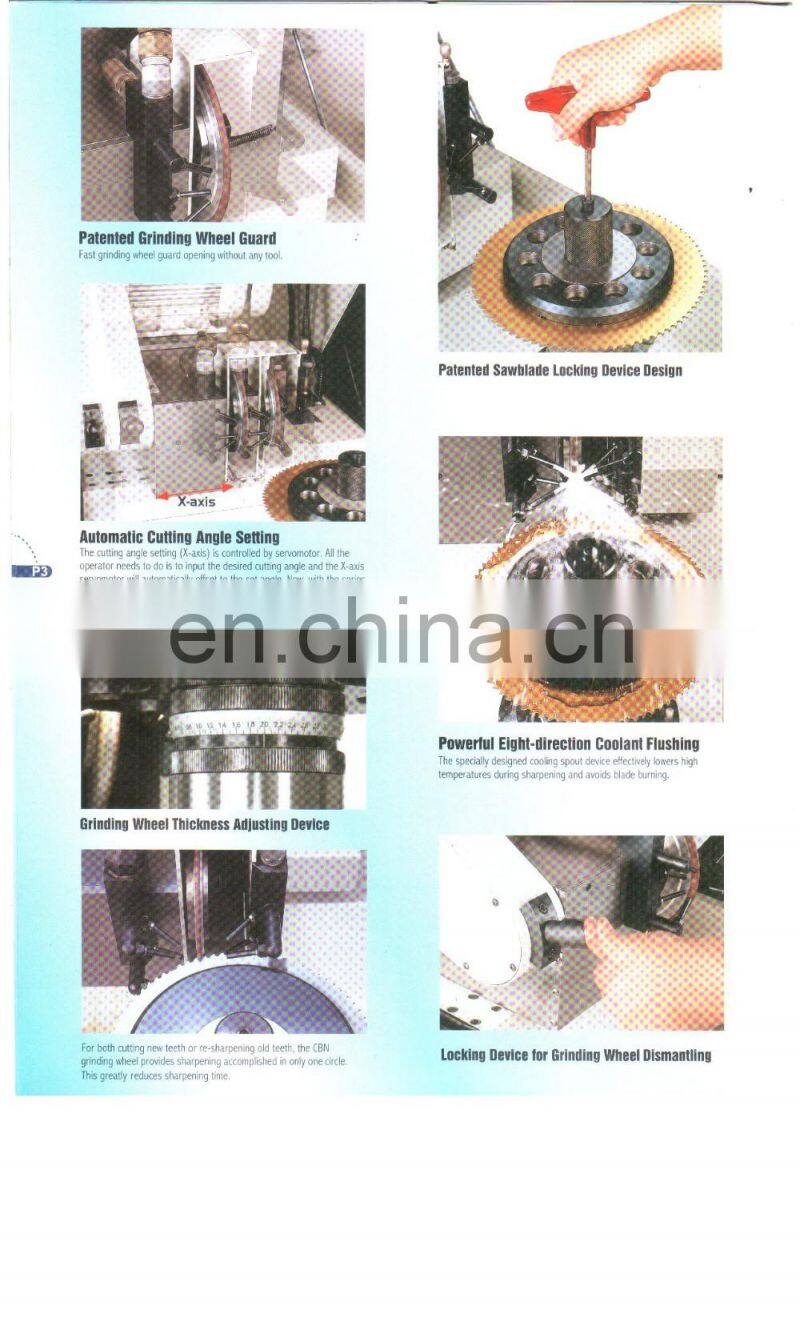

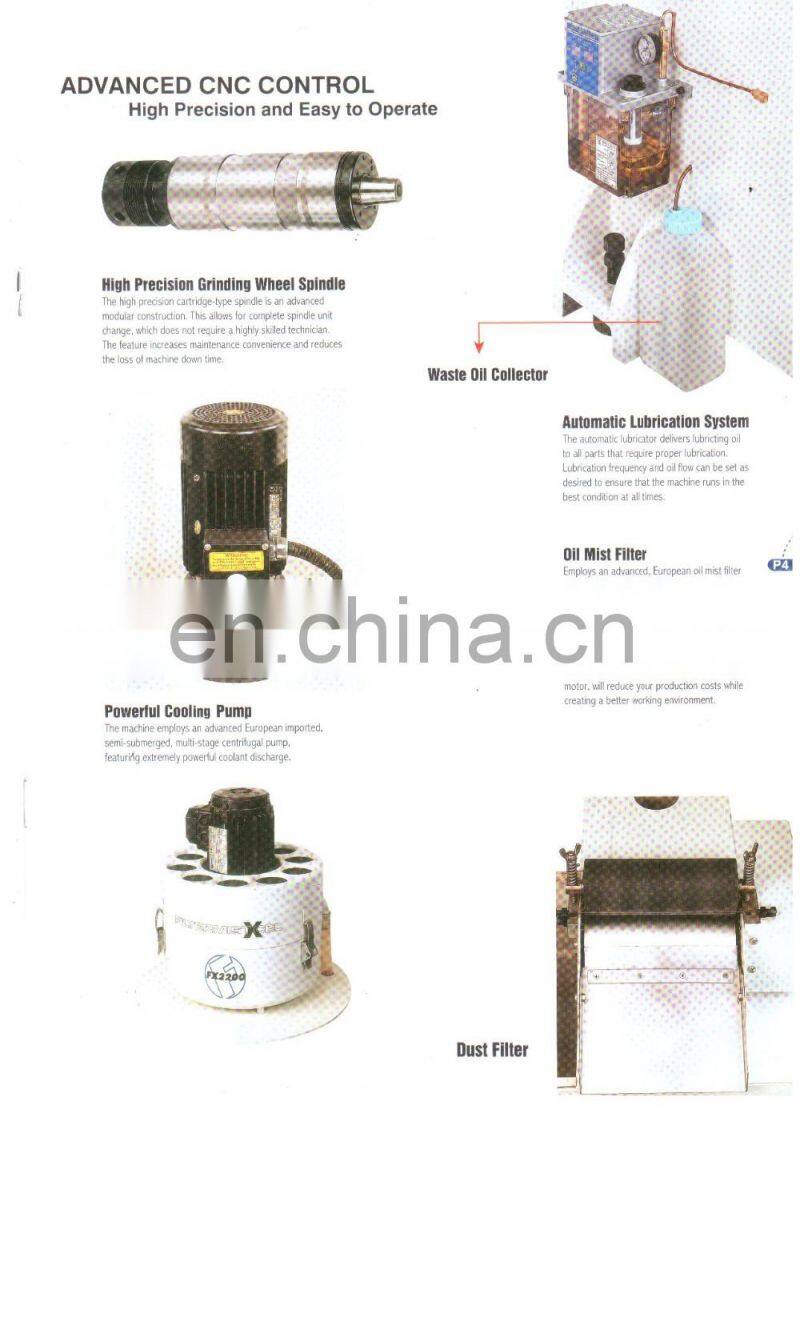

Structures :
'

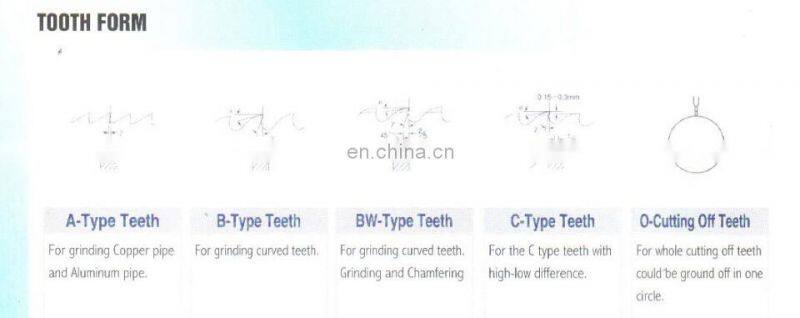

Teeth Form:

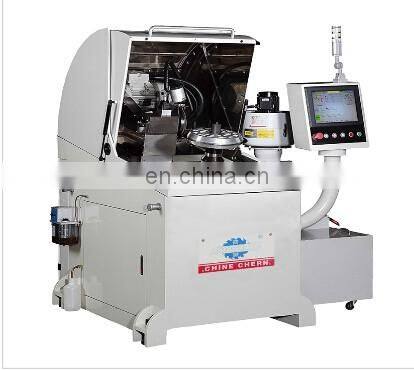

Machine Picture :
