Single-head Pipe Reducing Machine

Single-head Pipe Reducing Machine thumbnail-1
Single-head Pipe Reducing Machine thumbnail-2
Single-head Pipe Reducing Machine thumbnail-3
Single-head Pipe Reducing Machine thumbnail-4
Single-head Pipe Reducing Machine photo-1
Single-head Pipe Reducing Machine photo-2
Single-head Pipe Reducing Machine photo-3
Single-head Pipe Reducing Machine photo-4
US$ 5.00 - 15.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
chine chern
Place of Origin:
Taiwan, China
Model Number:
JC-1-40
Contact Supplier Request Quote Chat Now
Smarting Import&Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen/GuangZhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name chine chern
Place of Origin Taiwan, China
Model Number JC-1-40
After-sales Service Provided Overseas service center available

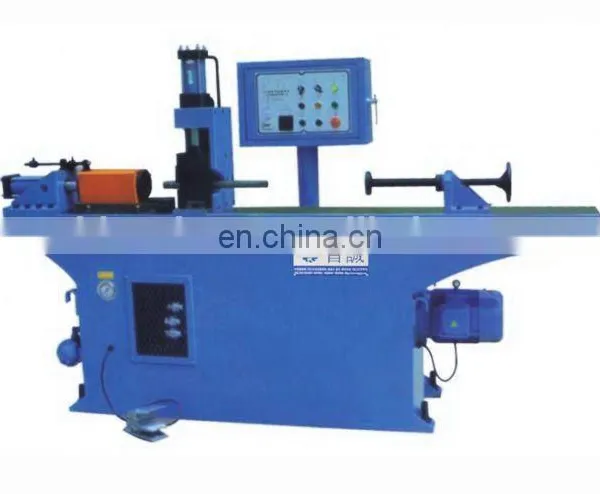

Single-head pipe reducing machine



Functions:





Suitable for various metal pipe processing
processing shape shrinkable pipe ,pepe expanding flare opening heading tendon suita



 automatic pipe terminal shaping machine
·Automatically control hydraulic drive, divided into manualsemi automationcomplete automation function, that could be selected at will.
·Having function of automatically designing number, which can perform stopping machines work automatically in way of setting up number.
·Could perform process in ways of pipe contractingenlargingpurifying . process shape includes: concavebulgeling and flattetragonalobliqueV shapetapping elbowevening-hole elbow, it will manufacture mould according to process product change demand of user.
·With characteristic of five-work once shaping.







Main technical parameter:





model JC-1-40 JC-1-50 JC-1-80
Max tube diameter 38 50 80
thickness 2 2 2.5
power of electric machine 4kw 4kw 5.5kw
hydralic power 5.2t 9.5t 21t
speed 100/3-4min 100/3-4min 100
machine dimension 260*55*130 260*60*140 260*65*146
working stroke 100 100 100

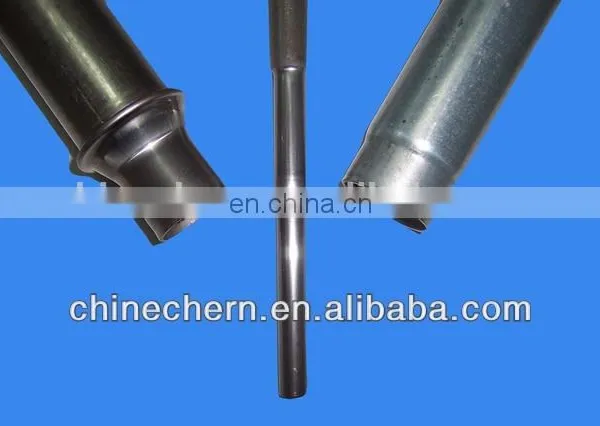

Samples:







Single-head pipe reducing machineSingle-head pipe reducing machine



                     Single-head pipe reducing machine





                        Single-head pipe reducing machine







                        Single-head pipe reducing machine







We have three size of tube end forming machine.

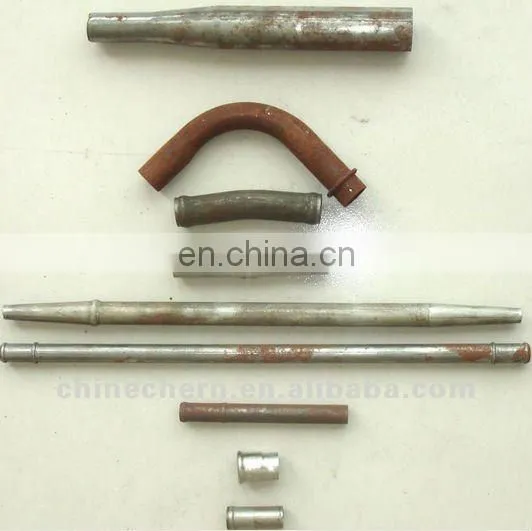

The follow is some forming product

Certificate :



                                     Single-head pipe reducing machine



                                   Single-head pipe reducing machine


 Company Profiles :

with decades hard  work  and  accumulated  experiences,  We have  acquired  fourty  invention



patent,Utility model and appearance patent.Meanwhile, We  have  passed  ISO9001:2008 quality system certificate, Government-issued  Guangdong  Province  private technology enterprises, high-

tech  enterprises, private enterprises and other honors.



The products  include Super hard metal bar cold saw machine series, Chipless  metal pipes circular saw machine series,Copper aluminum non-ferrous high-speed precision circular saw machine series,Metal pipe/bar end chamfer machine series,Circular saw blade sharpening machine series,Automatic pipe bending and forming Machine series , Six categories eighty models , Also provide customized complex process

Machine , all kinds of circular saw blade . Wide  Application  range  contains Nautical



aviation and aerospace industry, military industry, high-speed rail and rail transportation



industry, auto industry, precision parts, medical and fitness equipment industry, mechanical and electrical and electronic industry, lighting and furniture decoration forty industries .
