Manual Feeding Hydraulic Stainless Steel Tube Swaging Machine for Taper Reducing
US$ 7,000 - 8,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
CARE
Place of Origin:
Jiangsu, China
Model Number:
ZSG-40 stainless steel tube swaging machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DSG-II-40 Twin Head Aluminum Pipe Squeeze Machine for 2 Sides FlangeUS$ 6,500 - 7,500MOQ: 1 Set -
ZSG-60 Manual Tube End Forming Machine for Taper ReducingUS$ 7,000 - 8,000MOQ: 1 Set
-
Horizontal Hydraulic Metal Pipe End Arc Punching MachineUS$ 5,800 - 6,800MOQ: 1 Set
-
SG-80 Automatic Hydraulic Steel Pipe End Flanging Machine, Copper Tube End Expanding Machine, Hot Sale Hydraulic Pipe ExpanderUS$ 7,800 - 8,000MOQ: 1
-
SG-I-60 Single Head Square Tube Swaging Machine/tube Shrinking Machine/tube End Expansion MachineUS$ 5,600 - 6,500MOQ: 1 Set
Brand Name
CARE
Place of Origin
Jiangsu, China
Model Number
ZSG-40 stainless steel tube swaging machine
After-sales Service Provided
Engineers available to service machinery overseas
Manual feeding hydraulic stainless steel tube swaging machine for taper reducing
Main specification
1.Applicable material of the machine:carbon steel, stainless steel, aluminum , alloy, copper, brass etc.
2.Microcomputer controlling; Hydraulic driving.
3.Automatic and manual operations are available.
4.English or Chinese subtitles; man-machine conversion operation, easy.
5.Adopting linear slider rail, stable propulsion.
6.High accuracy and efficiency.
Technical parameter
Model/Name | ZSG40 | ZSG60 |
Max. reducing capacity mm | Φ40×2.0 | Φ60×2.5 |
Max. reducing length mm | 260 | 320 |
Molding time m | 10-60 | 10-60 |
Motor power KW | 5.5 | 7.5 |
Cooling oil pump W | 40 | 90 |
Rotate speed of main shaft r/min | 175 | 286 |
Overall dimension mm | 1020×620×1200 | 1300×880×1300 |
Weight T | 1.4 | 1.6 |

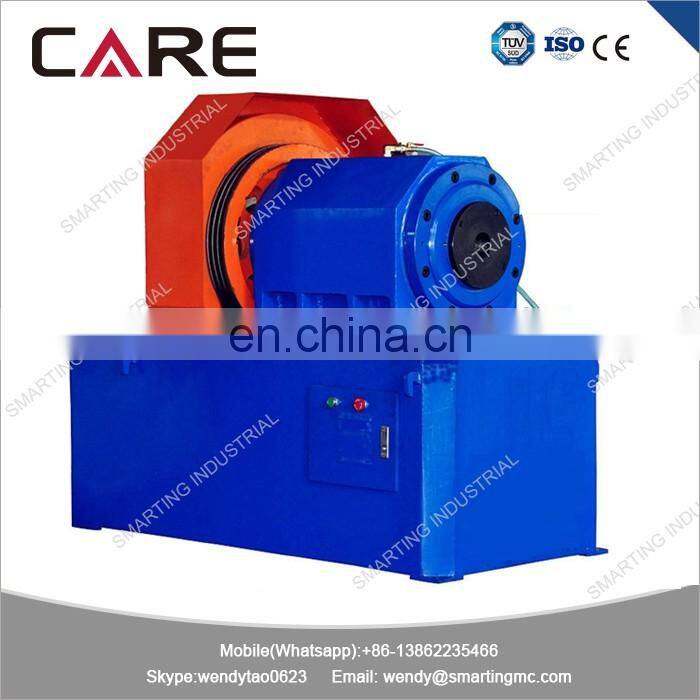

Machine photo
Reducing mold

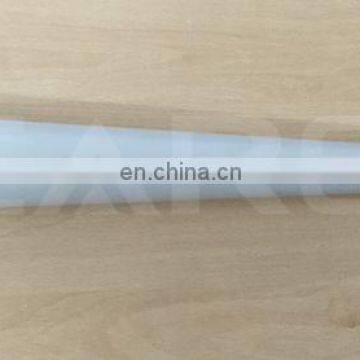

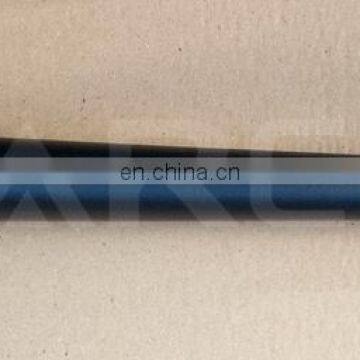

Pipe sample
To know more information, please contact us at any time.
