DSG-II-40 twin head aluminum pipe squeeze machine for 2 sides flange
- Shanghai China
- T/T Credit Card
You May Like
-
ZSG-60 Manual tube end forming machine for taper reducing
-
Horizontal hydraulic metal pipe end arc punching machine
-
SG-80 Automatic hydraulic steel pipe end flanging machine, copper tube end expanding machine, hot sale hydraulic pipe expander
-
SG-I-60 Single head square tube swaging machine/tube shrinking machine/tube end expansion machine
-
SG-II-60 hydraulic copper tube end forming machine, square tube reducing machine, pipe end forming machine
-
SG-I-40 Oil pressure SS pipe squeezing machine, stainless steel tube reducer, tube end edit machine
Product Details
| Brand Name | CARE | Place of Origin | Jiangsu, China | |
| Model Number | DSG-II-40 aluminum pipe squeeze machine | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
DSG-II-40 twin head aluminum pipe squeeze machine for 2 sides flange
Application: Tube end forming machine is widely used in numerous end forming applications and industries, such as automotive exhausts, furniture, air conditioning, among others. Forming controlled by hydraulic, clamping controlled by hydraulic. Microcomputer controller with English or any other language
Main specification
1) NC Control Unit: Easy Operation and Maintenance
2) Suitable for the shrinking of various metal pipes with different material and different shape
3) Equipped with emergency stop device. Both manual and automatic operations are available
4) Shrinking stroke 100mm. The max. workpiece length is 450mm, with no minimum workpiece length
5) This machine can make pipe end reducer, expander, flange and flare depend on different forming molds
Technical parameter
Type | SG-40 | SG-60 | SG-80 | SG-100 |
Max tube(mm) | φ40*2.0 | φ60*2.0 | φ80*3.0 | φ100*3.5 |
Max processing length(mm) | 110 | 130 | 150 | 180 |
Oil pressure(Mpa) | 14 | 14 | 14 | 14 |
Working speed | 100mm in3-4/s | 100mm in3-4/s | 100mm in3-4/s | 100mm in3-4/s |
Size(cm) | 180*45*120 | 200*50*130 | 290*70*140 | 300*75*150 |
Weight(kg) | 600 | 950 | 1600 | 1800 |
Remark | 1.The max processing length can according to customers requirement. | |||

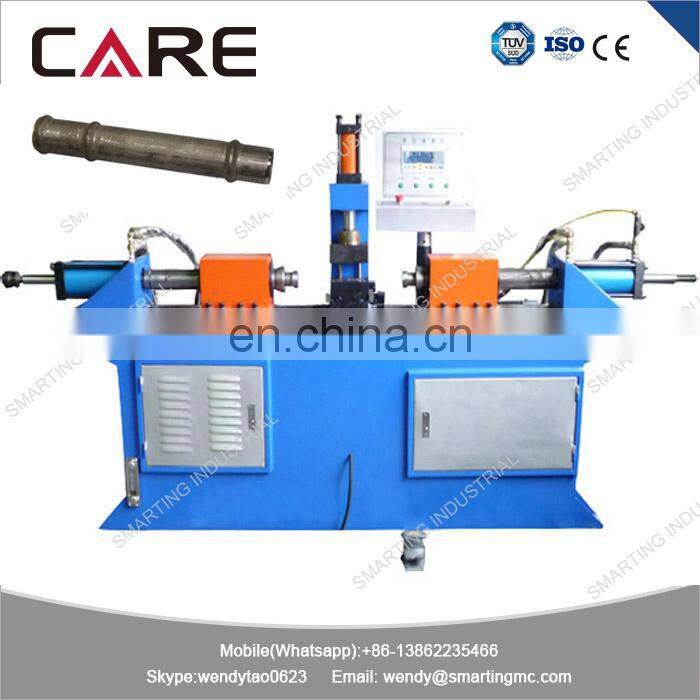

Machine photo
Forming molds

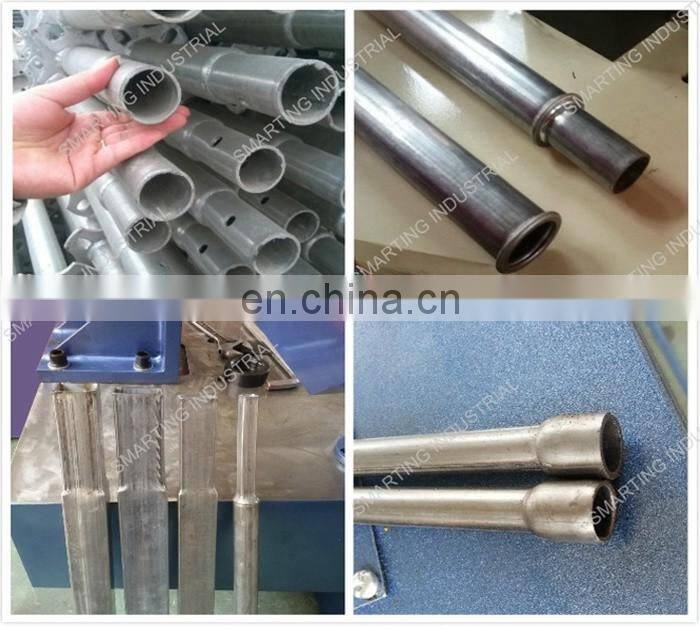

Pipe samples
To know more information, please contact us at any time.
