Home > Products > Pipe end forming machine > Horizontal Hydraulic Metal Pipe End Arc Punching Machine

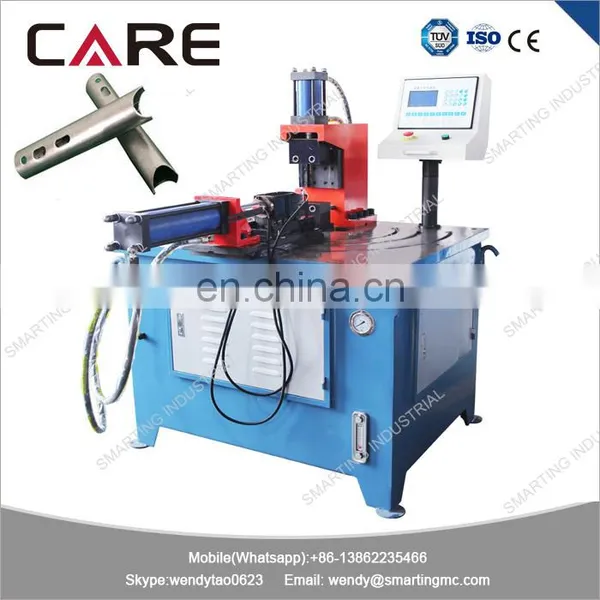

Horizontal Hydraulic Metal Pipe End Arc Punching Machine
US$ 5,800 - 6,800
/ Set
1 Set(Min. Order)
- Shanghai China
- T/T Credit Card
You May Like
-
SG-80 Automatic Hydraulic Steel Pipe End Flanging Machine, Copper Tube End Expanding Machine, Hot Sale Hydraulic Pipe Expander
-
SG-I-60 Single Head Square Tube Swaging Machine/tube Shrinking Machine/tube End Expansion Machine
-
SG-II-60 Hydraulic Copper Tube End Forming Machine, Square Tube Reducing Machine, Pipe End Forming Machine
-
SG-I-40 Oil Pressure SS Pipe Squeezing Machine, Stainless Steel Tube Reducer, Tube End Edit Machine
-
Automatic Pipe End Notching Machine, Pipe Notchers for Sale, Metal Pipe Notching Machine
-
Automatic Tube/pipe Arc Punching Machine, Pipe Tube Notcher, Metal Pipe Notching Machine
Product Details
| Brand Name | CARE | Place of Origin | Jiangsu, China | |
| Model Number | CH-50 pipe end arc punching machine | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Horizontal hydraulic metal pipe end arc punching machine
Main specifications:
1.It can punch in 0°-180°.
2.This machine may punch in clockwise or in counterclockwise.
3.Both straight and curving pipe can be processed.
4.Compared with punch, it has wider machining scope, is safer to operate, easier to change mould and has lower noise.
Technical parameters:
Host Motor | 5HP 380V 5HP 380V |
Machining Range | 12.7-60*2.0t A3 material tube, (round, oval tube) |
Power | Hydraulic |
Appearance | 2050*1150*1450mm |
Weight | 850kg |
Capacity | 500-600/h (depending on diameter size) |
Accessories | Clamping mold*1, Notching cutter mold*1 |

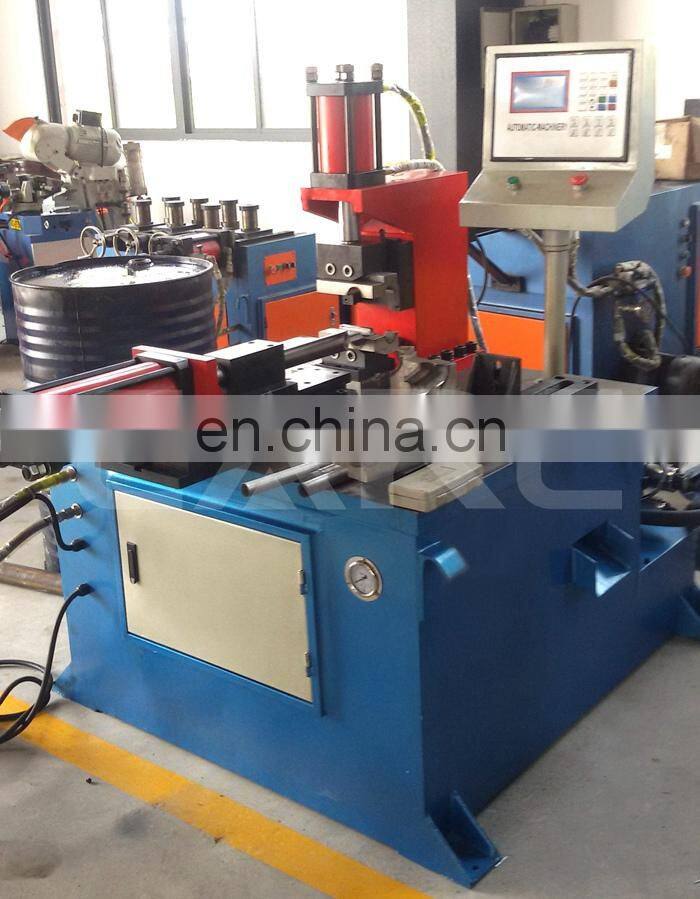

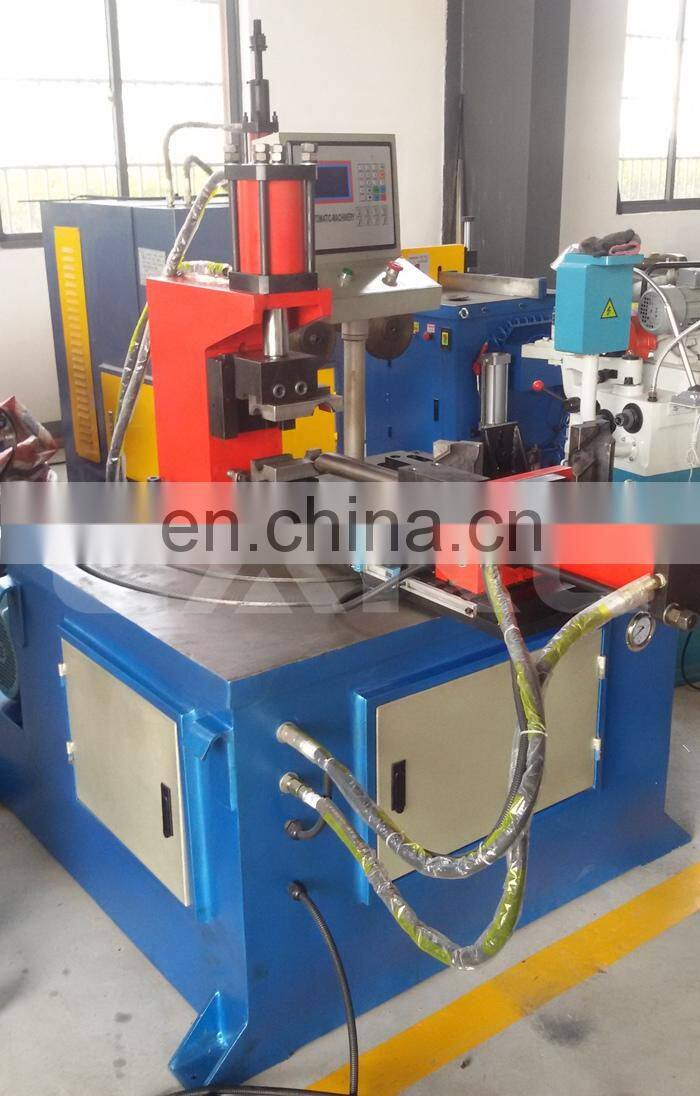

Machine photo

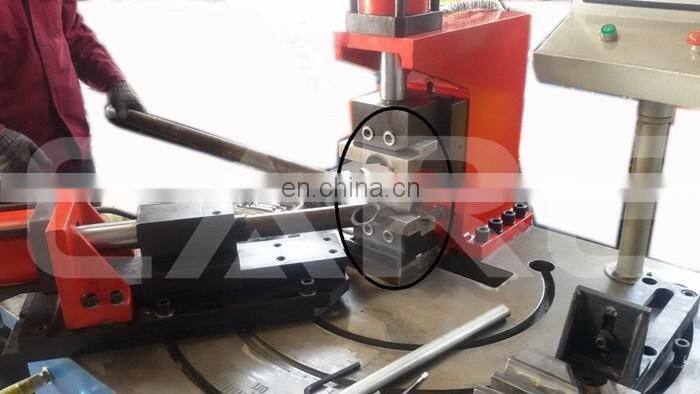

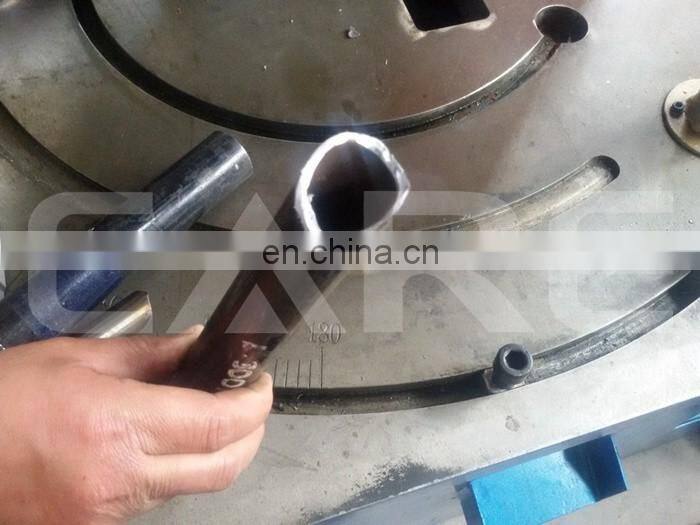

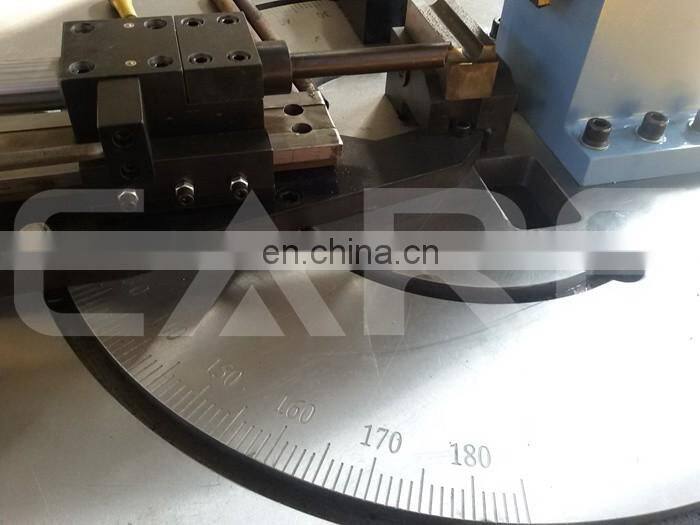

Main parts
To know information, please contact us at any time.
