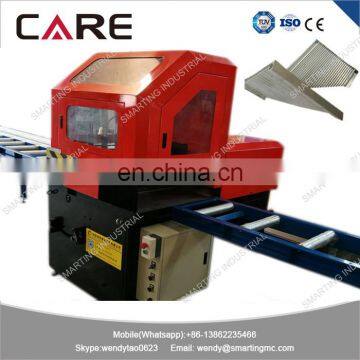

MC-650L Aluminum Profile Cutting Saw Machine for Max Profile 460*230mm
- Shanghai China
- T/T Credit Card
You May Like
-
MC-360 Semi-automatic Hydraulic Heavy Duty Steel Tube Cutting Machine With Ange Cutting
-
MC-455CNC Automatic Cnc Aluminum Circular Sawing Machine With Newest Design and Customized Color
-
MC-455CNC Automatic Aluminum Tube Cutting Machine With Aluminium Scrap Vacuum Cleaner Facility
-
Semi Pneumatic/aluminium Profile Cutting Machine for 45 Degree
-
MC-455CNC Automatic Feeding Aluminum Frame Cutting Machine for Window Door
-
Popular Model MC-455CNC Automatic Aluminum Door and Window Frame Cutting Machine
Product Details
| Brand Name | CARE | Model Number | MC-650L aluminum profile cutting saw machine |
Product Description
MC-650L aluminum profile cutting saw machine for max profile 460*230mm
Main features
1. Strong structure, small vibration. High cutting precision.
2, high horsepower design, horsepower can be cut according to the needs of matching.
3, equipped with digital display positioning device, simple and easy to adjust the size.
4, rapid die design, high efficiency.
5, can be equipped with automatic material rack, high degree of automation.
6, suitable for cutting aluminum, Aluminum Alloy, copper, copper alloy and plastic, carbon fiber and other materials, and according to the different material selection for the spindle speed and tool.
PS: vacuum cleaner (optional)
Technical parameter
Spec. | MC-650L |
Sawing angle | 90 |
Max. sawing width | 460 |
Max. sawing thickness | 230mm |
Rotate speed of sawing shaft | 2200RPM |
Sawing speed | 10-15cyle/min |
Working area | 1350×1000mm |
Working height | 850mm |
Motor power | 5.5kw |
Needed pressure | 5-6kg/cm |
Length of feeding frame | May be made to order. |
Size of machine | 1350x1100x1370 mm |
Size of package | 1500x1200x1500 mm |
Net/gross weight | 800/830kgs |
Machine photo
Feeding frame is selectable
Pipe/profile sample
