Home > Products > Screening equipment > Ore dressing high frequency linear vibrating screen for sale

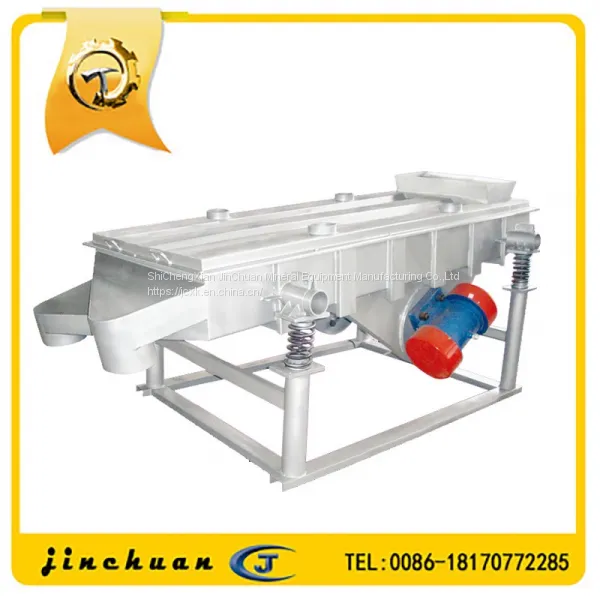

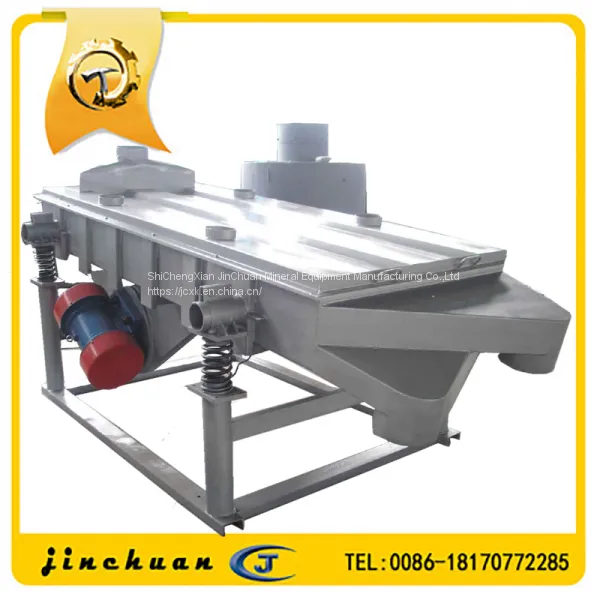

Ore dressing high frequency linear vibrating screen for sale
- 1 Set / Sets per Month
- Xiamen or as request
- T/T L/C Credit Card Other Cash Escrow
- 7 days
Product Details
Brand Name: | Jinchuan | Place of Origin: | China | Model Number: | SZF series |
Type: | Linear | Certification: | ISO:9001 | Application: | Ore |
After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 1 year | Weight: | Depend on model |
Dimension(L*W*H): | Depend on model | Voltage: | 380V or as request | Condition: | New |
Power(W): | 0.75/0.37kw |
Product Description
Linear Vibrating Screen use excellent vibrating motor as power source,that the materials can be thrown up on the sieve and forward to make a straight movement. It can be equipped with single or multi-screen to achieve the grading, removing impurity, removing dust, testing, washing selecting, dehydration etc.

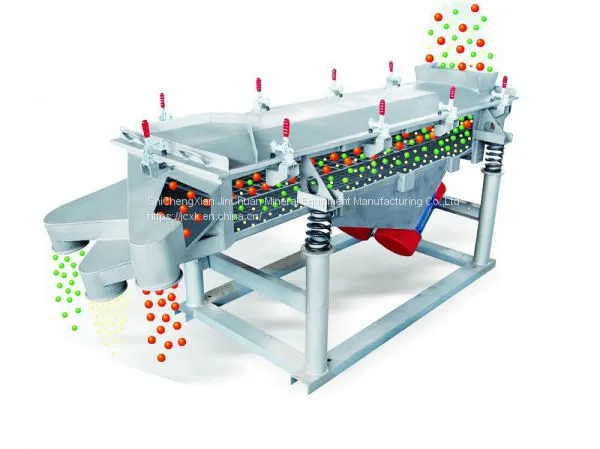

Linear vibrating screen using the excitation force of vibration motor as vibration source, its working principle is that two of the same type and specification do synchronous vibration motor reverse rotation, the line form, a periodic alternating exciting force to drive the sieve box, led screen surface, and then make materials was put up on screen, do jumping movement forward at the same time, several kinds of specifications of the screen by multilayer sieve on content and undersize content, finally respectively from their respective discharging mouth eduction, complete screening operation.
Main Features
1.Easy to operate and maintain.
2.Low consumption with high yield and low cost.
3.Fully enclosed structure, automatic layout, more suitable for pipeline operations.
4.Good sealing without dust flying.
5.Can be used for single or multi layer.
6.Material auto discharge, be able to continuous operation.
7.Every part of the screen box used copper plate and section welded toget

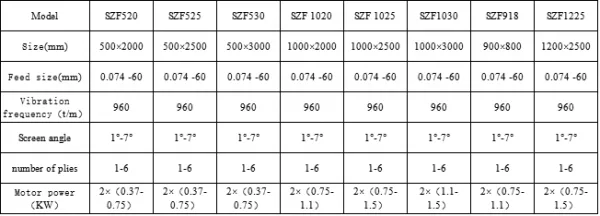

Main Specification
Product Pictures
