Chute feeder is generally hung at the discharging port of ore bin. Feeding is realized through reciprocation of the bottom plate of the chute, with 20-60 times/min, and stroke of 20-200mm.
The method of adjusting the stroke : make proper adjustment through adjusting the eccentricity of eccentric wheel of drive unit.
Simple structure, even feeding, good continues performance
2.Change and control flow and feeding volume at any time
3.Stable transmission, high efficiency
4.Compact structure, reasonable design
5.Excellent quality, wide applicationWorking PrincepleThe machine is usually installed underneath the discharging opening of ore bin. Minerals fall on the bushing. The bushing is located at the chute bottom, configured on idler wheel and via eccentric device connected with reducer which is linked to electric motor by coupler. When it works, electric motor drives reducer via coupler; eccentric disk and drain cap which is situated between chute frame bottom and roller begin to do reciprocal and linear motion so as to uniformly feed minerals.

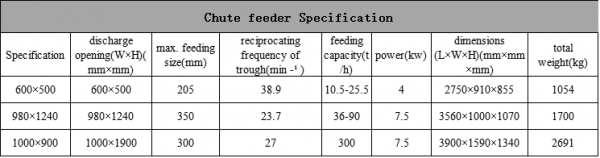

Specification

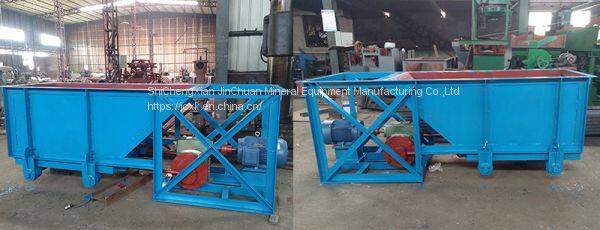

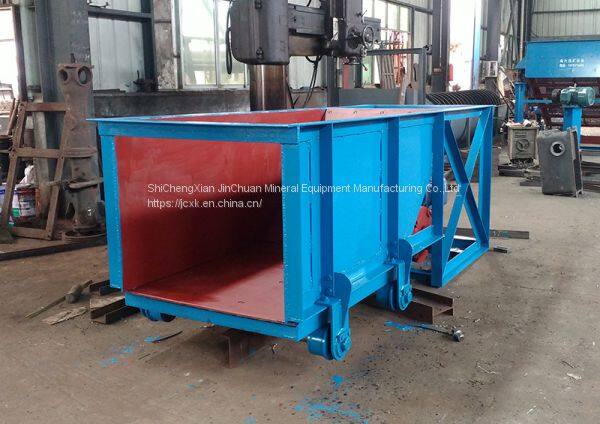

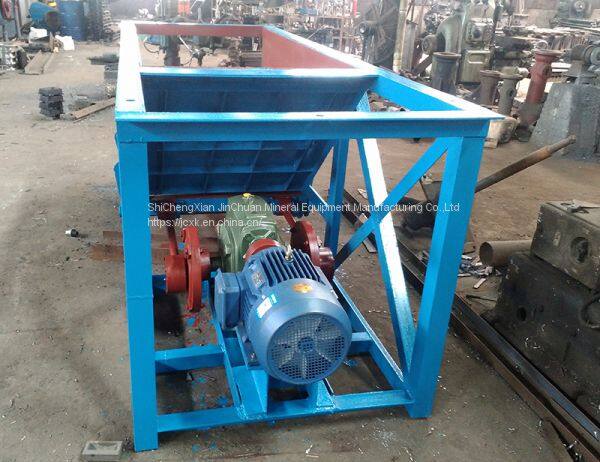

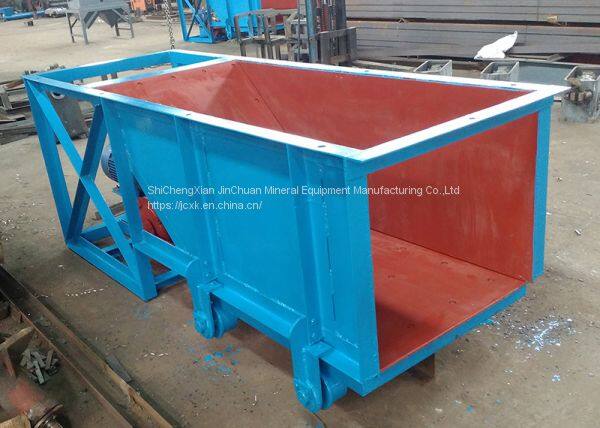

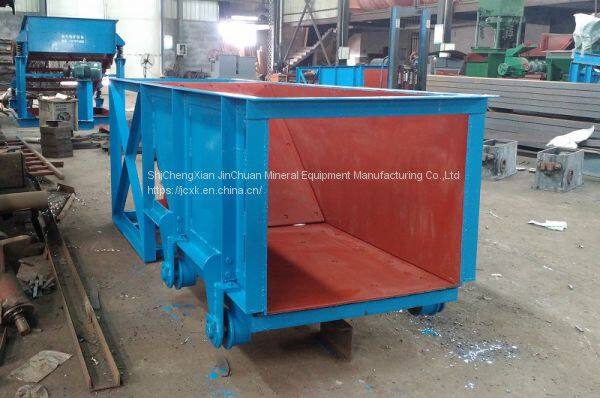

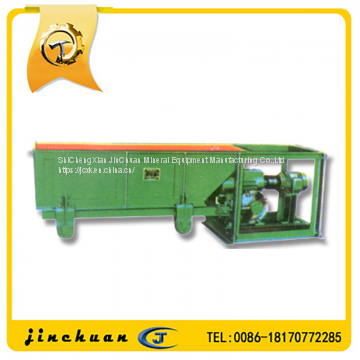

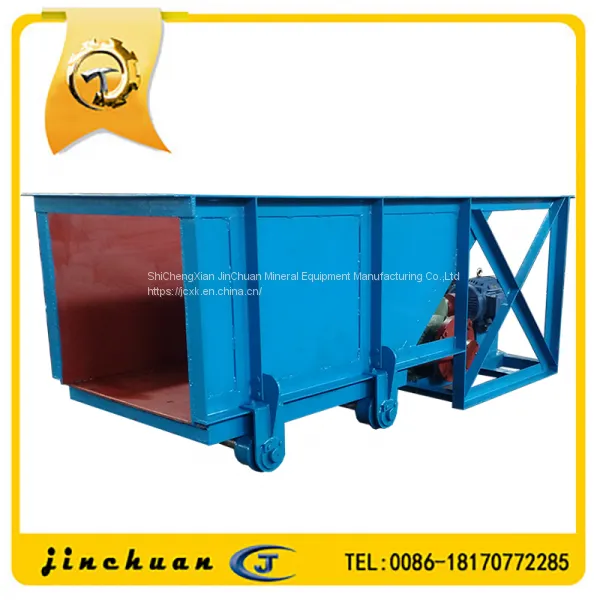

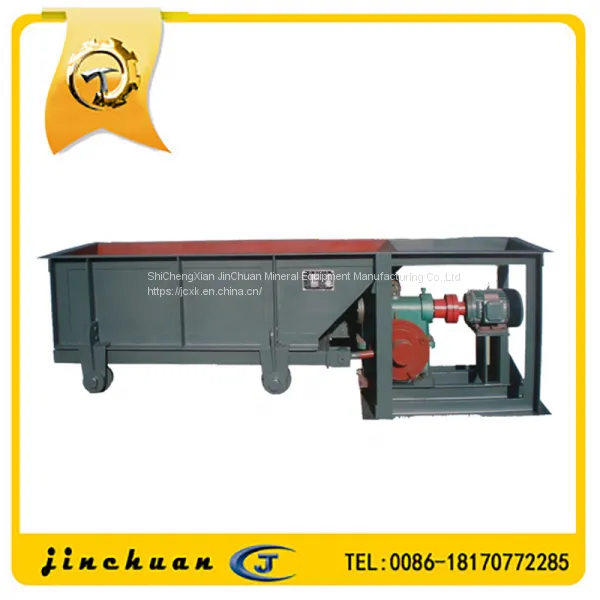

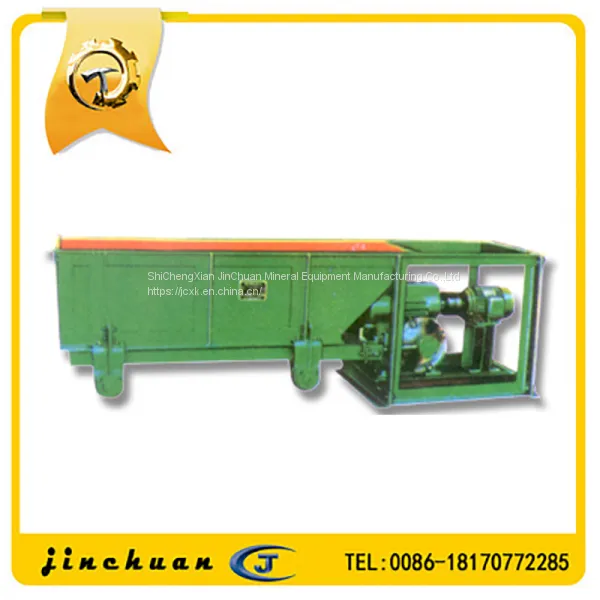

Product pictures
