Home > Products > Screening equipment > High frequency Fine Sand Recycling Machine and sand recovry equipment dewatering screen

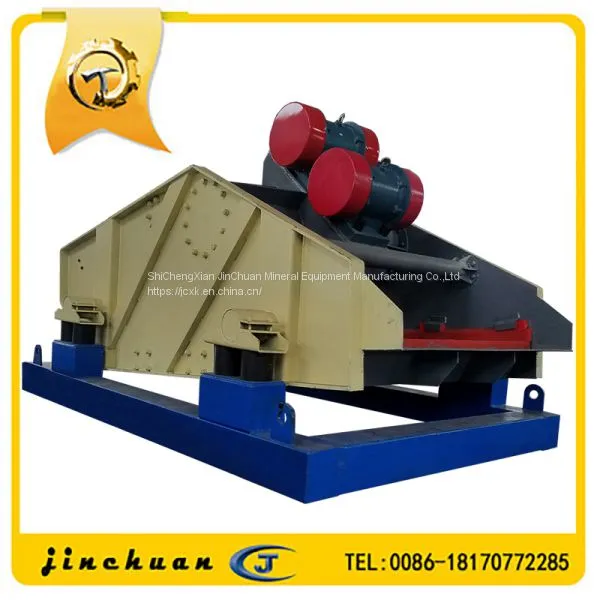

High frequency Fine Sand Recycling Machine and sand recovry equipment dewatering screen
- 1 Set / Sets per Month
- Xiamen or as request
- T/T L/C Credit Card Other Cash Escrow
- 7 days
You May Like
-
Sand screen machine vibrating screen
-
Ore dressing high frequency linear vibrating screen for sale
-
Trommel sand screening machine sand and stone separating equipment
-
Swage treatment high effect Inclined tube thickener
-
Through feeder,chute feeder machine
-
Conveying large rock machine vibrating feeder price
Product Details
| Brand Name | Jinchuan | Place of Origin | China | |
| Model Number | ZKR1022 | Type | Other, Dewater screen | |
| Certification | ISO:9001 | Application | Ore | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 1 year | |
| Weight | 2.2t | Dimension(L*W*H) | Depend on model | |
| Voltage | 380V or as request | Condition | New | |
| Power(W) | 3kw*2 |
Product Description
Dewatering screen is driven by two vibrating motors, which makes the screen sieve move to-and-fro on line to achieve the filtering purpose.With the vibration of the screen, the concentrated tailings materials are continuously threw up and down on the screen, the materials are loosen and crashed to the sieve, the small size materials are filtered away from the sieve holes. Finally it reaches the aim of classifying, dehydrating and desliming.
Main Features
1. High efficiency, strong vibrating force and large capacity.
2. Simple structure and easy operation and maintenance.
3. 45° angle install increases the dewatering area.
4. Vibrating frequency is adjustable to meet different ores.
5. Torsional shear type high strength bolts are used between side plates and beam, no weld gap that avoid side plates cracking during vibrating.

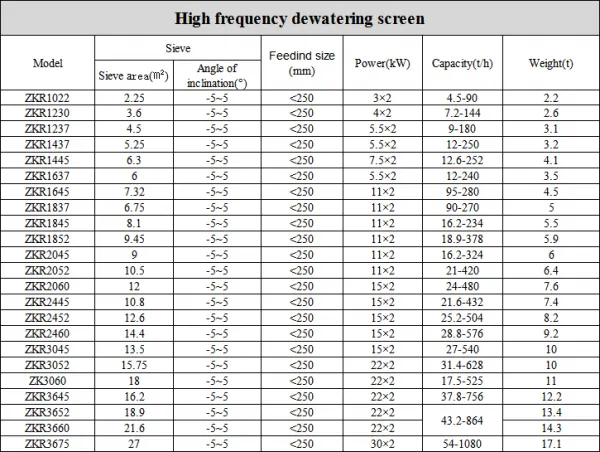

6. Polyurethane screen with better elasticity and less blocks. The PU side-push plates protect the equipment from the rushing material and guard the long life of the whole device.Main Specification

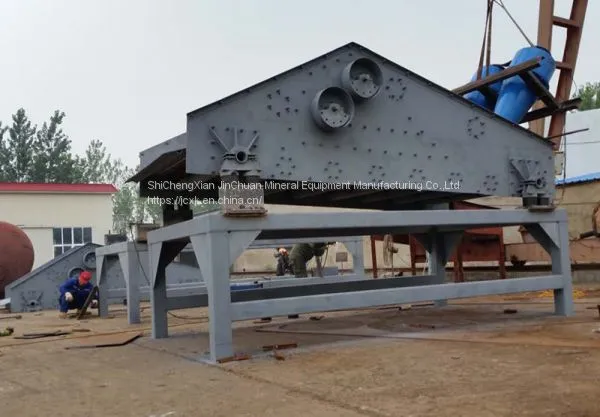

Application pictures
Dewatering screen can be widely used in discharging dried tailings, sand washing plant, fine mineral dewatering, chip removing, carbon-in-pulp separation etc. Screen mesh can be various type like polyurethane, nylon, stainless steel wire, manganese steel wire, industrial filter cloth, etc.
