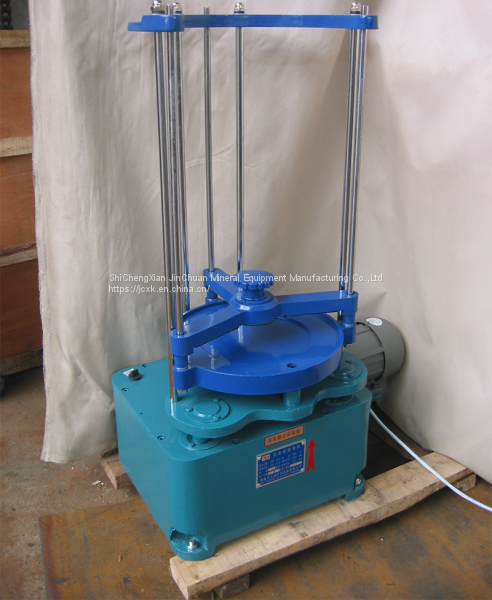

Lab Standard Test Shaker Sieve
US$ 800 - 3000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Jinchuan
Place of Origin:
China
Model Number:
200/300
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen or as request
Delivery Detail:
5 days
Related Products
-
China Trommel Screen for SortingUS$ 3000 - 30000MOQ: 1 Set -
High Frequency Fine Sand Recycling Machine and Sand Recovry Equipment Dewatering ScreenUS$ 3000 - 30000MOQ: 1 Set
-
Sand Screen Machine Vibrating ScreenUS$ 1000 - 30000MOQ: 1 Set
-
Ore Dressing High Frequency Linear Vibrating Screen for SaleUS$ 1000 - 30000MOQ: 1 Set
-
Trommel Sand Screening Machine Sand and Stone Separating EquipmentUS$ 1000 - 30000MOQ: 1 Set
Brand Name
Jinchuan
Place of Origin
China
Model Number
200/300
Type
Other, screening
Certification
ISO:9001
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
12 months
Weight
180kg
Dimension(L*W*H)
400*400*685
Production Capacity
/
Voltage
380V or as request
Condition
New
Power(W)
370w
Introduction
The product is a special equipment for grading and screening granular materials. It has composite screening function with shaking and rapping. The sieve shaker has a reliable performance, convenient and flexible clamping and installing, reliable clamping and digital automatic control. Sccording to user's demand,it can screening a vatiety of sample. It mainly used in coal, electricity, metallurgy, chemical, building materials, geology and other sectors of the material screening analysis.
This machine is composed of motor through the transmission shaft, the turbine drives the swing frame side main eccentric shaft to rotate, and even drive the other two pair of eccentric shaft rotation, so that the entire screen group swing radius is obtained, the eccentricity of plane circle swing. At the same time by the same motor drives another of worm gear through the cam, a push rod, a swing frame screen group, periodically from the top by gravity down swing frame, the swinging rack swing at the same time get the plane circular vibration.

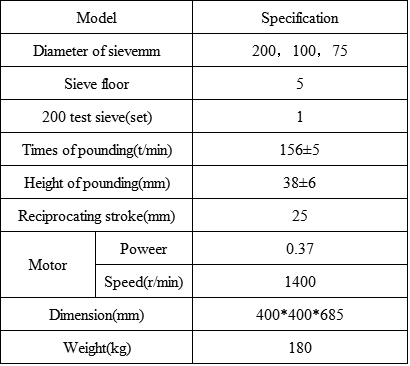

Specification

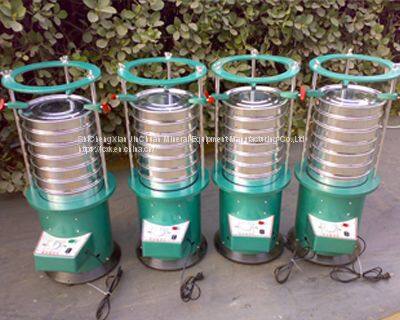

Application Pictures
