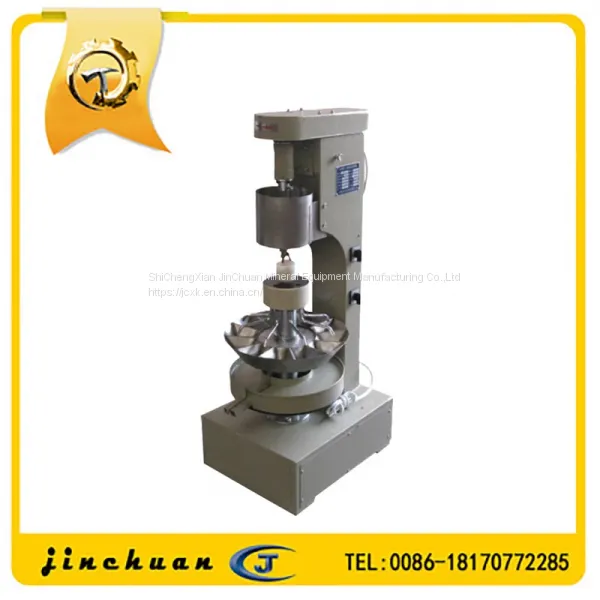

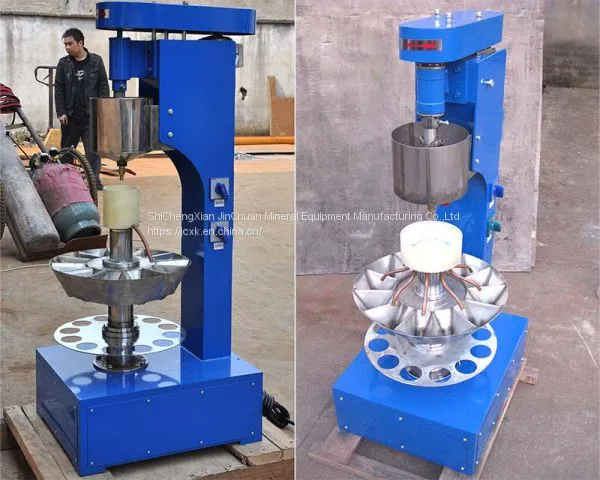

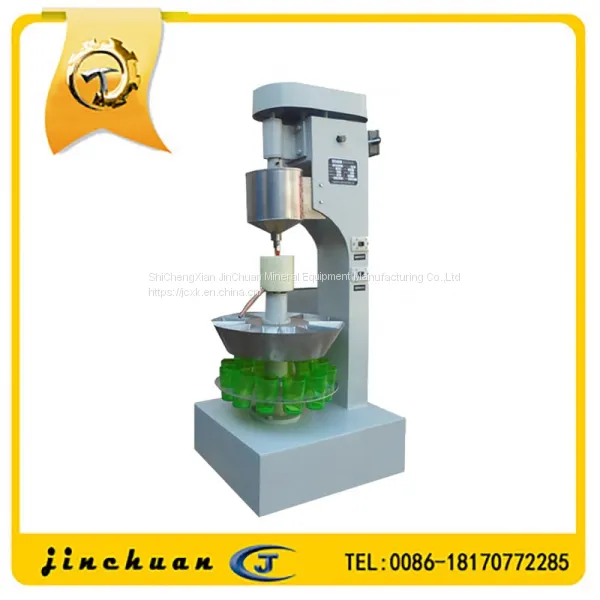

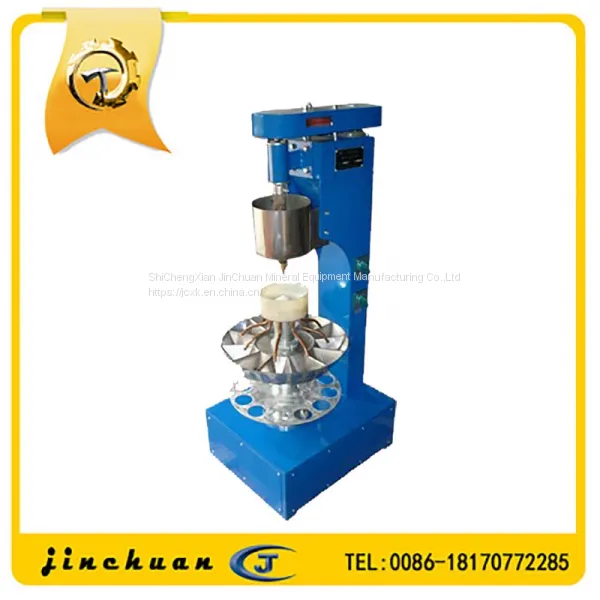

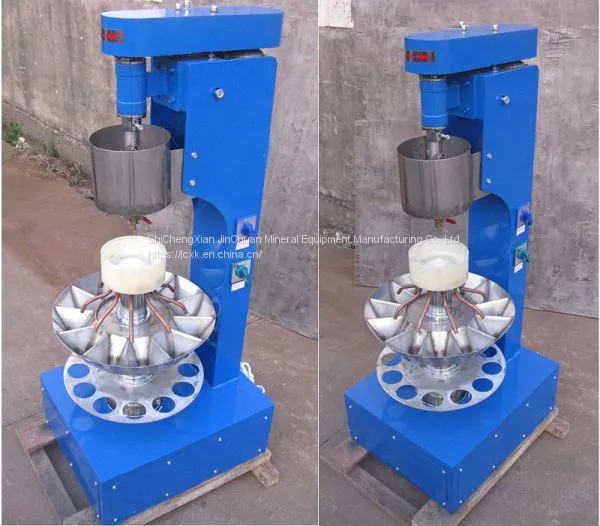

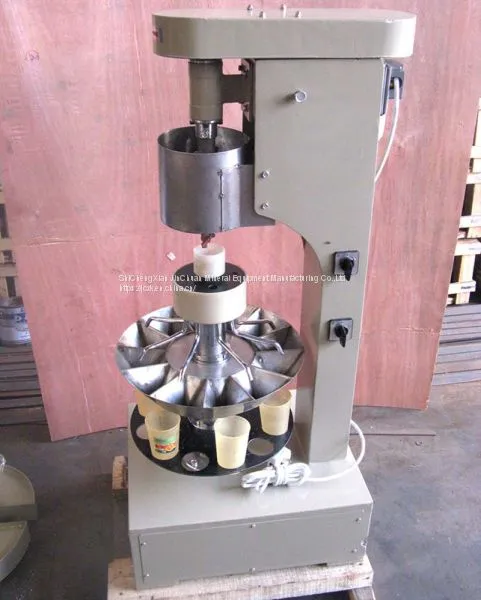

Help CenterXSHF2-3 Lab Wet Sample Separator for Testing
Related Products
-
Lab Standard Test Shaker SieveUS$ 800 - 3000MOQ: 1 Set -
China Trommel Screen for SortingUS$ 3000 - 30000MOQ: 1 Set
-
High Frequency Fine Sand Recycling Machine and Sand Recovry Equipment Dewatering ScreenUS$ 3000 - 30000MOQ: 1 Set
-
Sand Screen Machine Vibrating ScreenUS$ 1000 - 30000MOQ: 1 Set
-
Ore Dressing High Frequency Linear Vibrating Screen for SaleUS$ 1000 - 30000MOQ: 1 Set
XSHF2-3 wet-type sample divider is applied to pulp equivalent division and wet test sample division in laboratory. The product is capable of dividing in small representative samples in solid content,particle size and chemical composition.
The main parts of XSHF2-3 Wet Splitter are:
(1) feed hopper;
(2) slurry conditioning drum;
(3) slurry distributing part;
(4) slurry intercepting part;
(5) slurry gathering and containing part;
(6) lathe bed;
(7) control switch for slurry conditioning drum;
(8) control switch for distributor. The plate distributor rotates counterclockwise.
1. Structure of Transmission System
The moving system of splitter transmits slurry in two ways:
(1) stirring transmission and
(2) distribution transmission, both of which are driven by one single motor.
(3) The motor for stirring transmission feeds slurry to the driven shaft through belt pulley, getting the stirring impeller to rotate at constant speeds.
(4) The distributing transmission system is directly driven by high-precision reducing motor imported from Germany, which gets the distributor to operate counterclockwise at a constant speed.

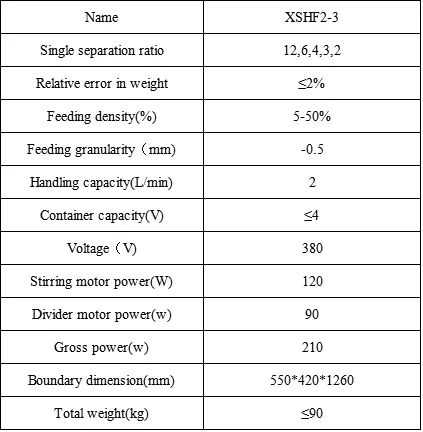

Specification
Application
New model XSHF2-3 Wet Splitter is applicable to labs for geological, metallurgical, building material, coal and other industries for ore slurry reduction and wet sampling for product tests. Minor representative samples in terms of solid content, particle size fraction and chemical composition can be made by the splitter.
