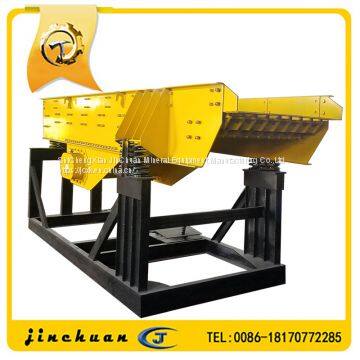

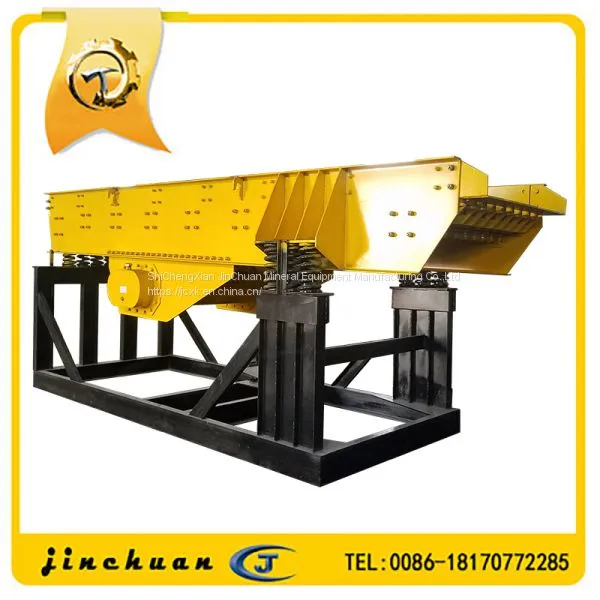

Conveying Large Rock Machine Vibrating Feeder Price

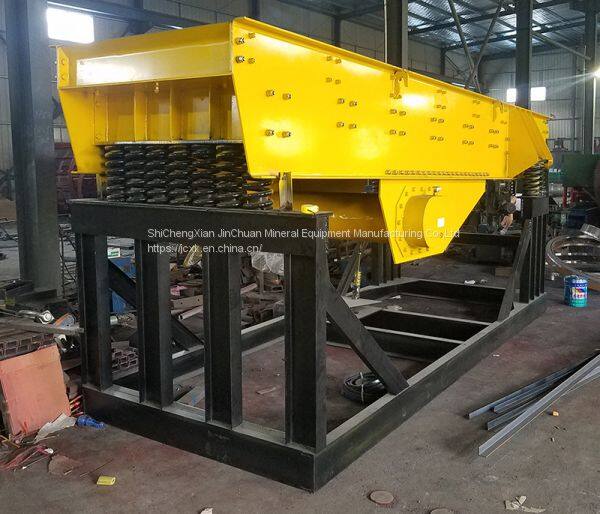

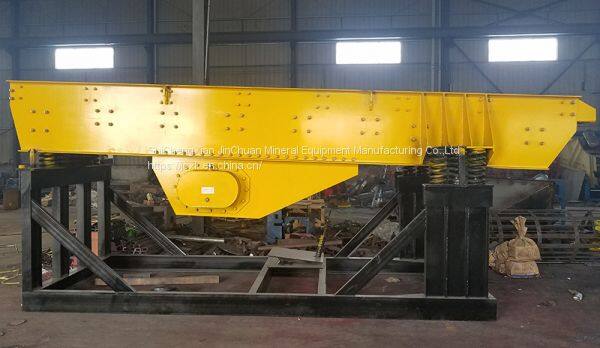

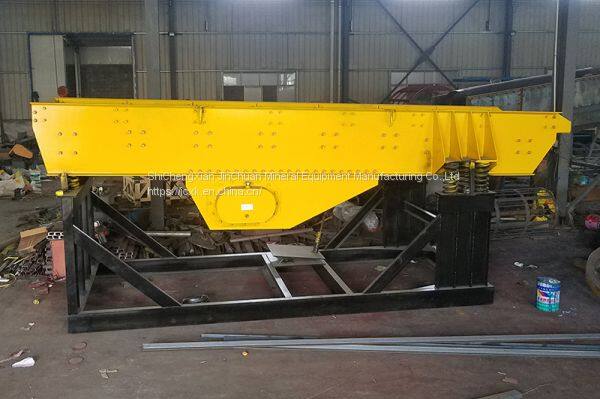

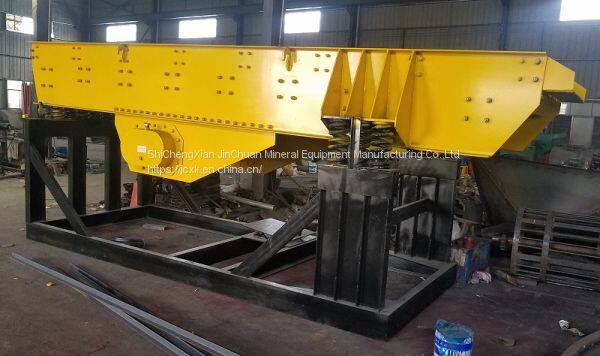

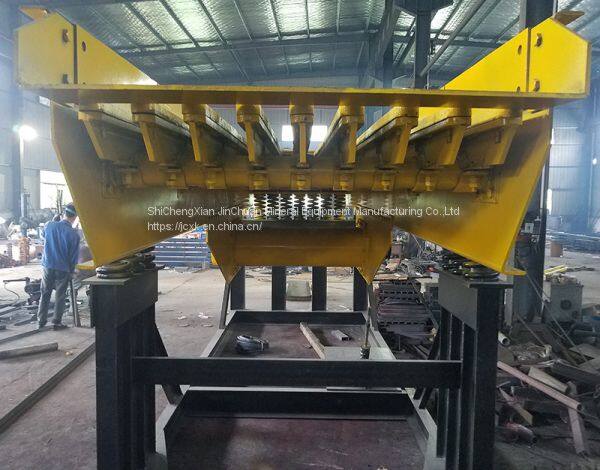

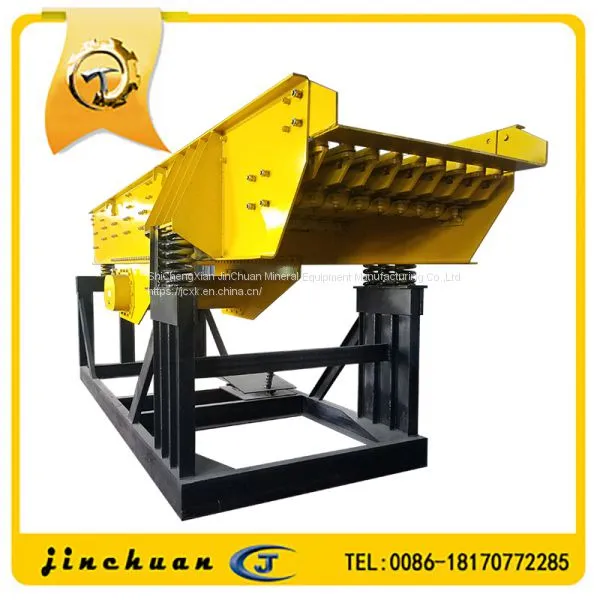

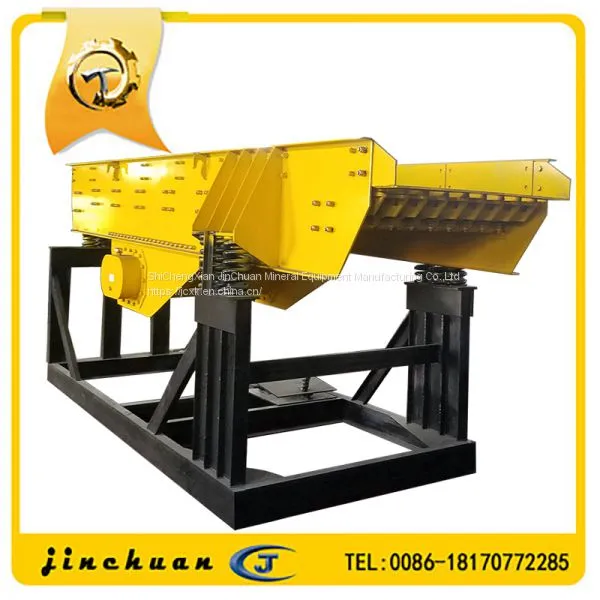

GZD vibrating feeder series is a new type of vibrating feeder designed for evenly conveying large pieces of material before crushing the coarse crusher in the screening. The vibrating feeder adopts the structural characteristics of the double eccentric shaft vibration exciter to ensure that the equipment can withstand the impact falling of large materials, and the feeding capacity is large. In the production process, the block and granular materials can be uniformly, regularly and continuously fed from the storage bin to the receiving device, thereby preventing the receiving device from colliding due to uneven feeding, and prolonging the device. Service life. The vibrating feeder can be divided into a steel plate structure and a purlin structure. The feeder of the steel plate structure is mostly used in the sand and gravel production line, and the materials are all uniformly fed into the crushing equipment; the feeder of the purlin structure can roughly screen the materials. It makes the system more economical and reasonable in preparation, and has become an indispensable equipment in crushing and screening. Therefore, the vibrating feeder is widely used in the combined equipment of feeding, crushing and screening in metallurgy, mineral processing, building materials, chemical industry, abrasives and other industries.

Main Features

   As a new type of feeding equipment, this product has the followingfeatures:
1) Reasonable and compact structure, light weight, small offset of the center of gravity of the whole machine, convenient installation and maintenance, no rotating parts, no lubrication, low operating cost.
2) The design theory is reasonable and the energy consumption of the whole machine is low.
3) Uniform quantitative feeding, high feeding precision.
4) Stepless adjustment of the feed amount for automatic control and centralized control.
5) When the material is fed, the material runs according to the parabolic trajectory, and the wear of the material is small.
6) This machine is not suitable for hot materials above 300 °C and occasions with explosion-proof requirements

Working Princeple
