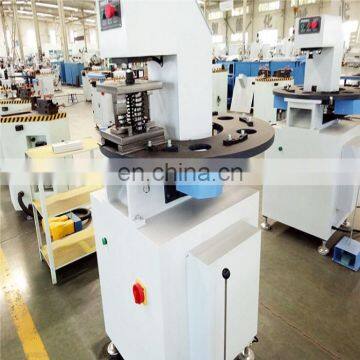

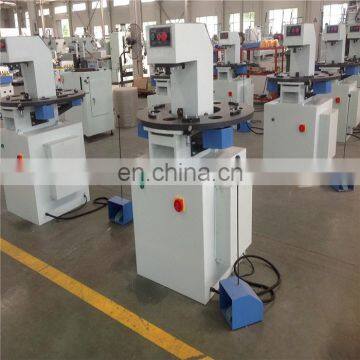

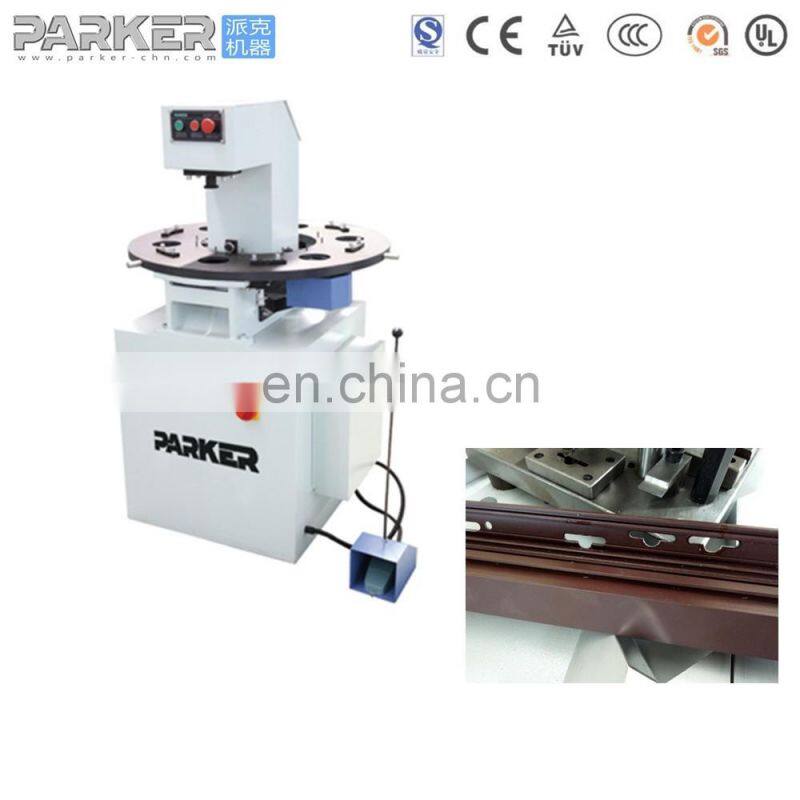

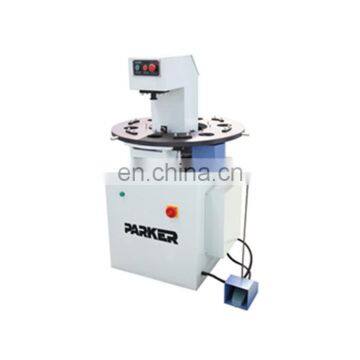

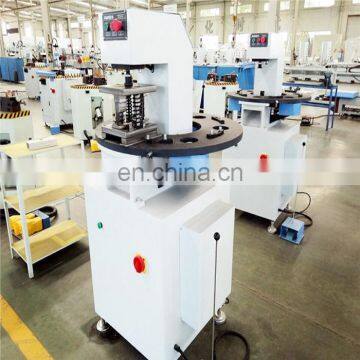

LLZC-50 Aluminium Profile Variable Punching Machine
- Qingdao
- T/T Credit Card
You May Like
-
LDX-250 Aluminium Profile Automatic End Milling Machine
-
LDX-350 Aluminium Multi-profile Automatic End Milling Machine
-
Alu-alloy Automatic End Milling Machine
-
LJMJ-CNC-500B Aluminium Profile Auto Feeding Corner Key Cutting Saw
-
Alu-window-door Hydraulic Crimping Machine
-
Alu-alloy Automatic End Milling Machine With Four Cutters
Product Details
| Brand Name | PARKER |
Product Description
Feature:
1.Used for punching processing in the manufacture of aluminium window and door.
2.Every combination punching die equipped with the machine can achieve various punching process, by-changing processing position, various types profiles can be processed.
3.Adopt disk worktable equipped with six dies. Each die be used at any time by the worktable rotating, which greatly increased the production efficiency
Parameter:
Voltage: 380V 50HZ
Power: 2.2KW
Rotary: 1400rpm
Rated oil pump pressure: 16Mpa
Capacity of box 20L
Rated pressure: 50KN
Punching travel times: 30 Times/min
Overall dimension: 900mmx900mmx1400mm
Weight: 500Kg
One:PARKER Introduce
1.PARKER Machinery Co.,LTD was founded in 2003,since the entry into the window door curtain wall machinery manufacturing field,peck with the best team and most stringent manufacturing standards,has been committed to the global supply of machinery and the best service.Today,with more than 300 employees,PARKER Industrial Park covers an area of 70000 m^2,Parker has become Chinese and even the world's window door curtain wall and insulating glass high-end machinery manufacturing base.
2.PARKER products include aluminium,PVC window and doors machinery,aluminium curtain wall processing machinery,industrial aluminium processing machinery and insulating glass series production line machinery.
3.PARKER machinery expotrs to the world more than 80 countries and regions,and has firstly established branches in USA,India,UAE,Brazil,has more than 15 patents.
4.PARKER machinery are all passed through high standard European CE certification,American UL certification and Canadian CSA certification.
5.PARKER manufacturing creates ecological management system of 9M that is unique and most proud of,and the human resources,raw materials,technology methods,environment,information etc. Have been ongoing ascension,and improves the overall quality and core competitiveness of parker.Customers around the world are actively popularize and apply it,benefit a lot from it.
6.PARKER machine core parts procurement achieved internationalization,and established a cooperative partnership with ABBA,OMRON,SCHNEIDER,OPTIMA.
7.PARKER people are always follow the core concept,it is "PARKER is developing with the world",it is PARKER peoples' strict implementation of ecological system of PAREKR and of "zero defect" stern pursuit,which makes the PARKER machine perfect implement unique global standard,achieves improvement value and sustainable innovation!
8.PARKER machinery,leads the era of intelligence,create the strategy of globalization!
9.PARKER machinery,contribution to the world culture of windows and doors!
Two:PARKER Core Concept
1,The core concept of PARKER: PARKER is developing with the world
2,Parker's mission: Making machines to be partners
3,Parker's spirit:High-quality being the aim, foresight win the world
4,Parker's strategy:Open intelligent era and create world famous brand

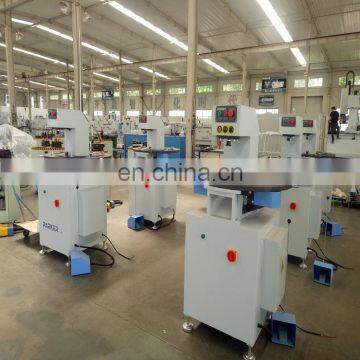

Three:PARKER Factory
Four:PARKER Factory Store Room
Five:PARKER Family
Six:PARKER Meeting Room
Seven:PARKER Cooperative Partner
Eight:PARKER CE Certification
