Product Details
Brand Name: | Parker |
Product Description
Aluminum window and door machine
Corner Key Cutting Saw machine
If the above product is not your cup of tea?
Never mind,please click here,leave product name you need
You will find more solutions.
Introduction of Aluminum cutting saw machine

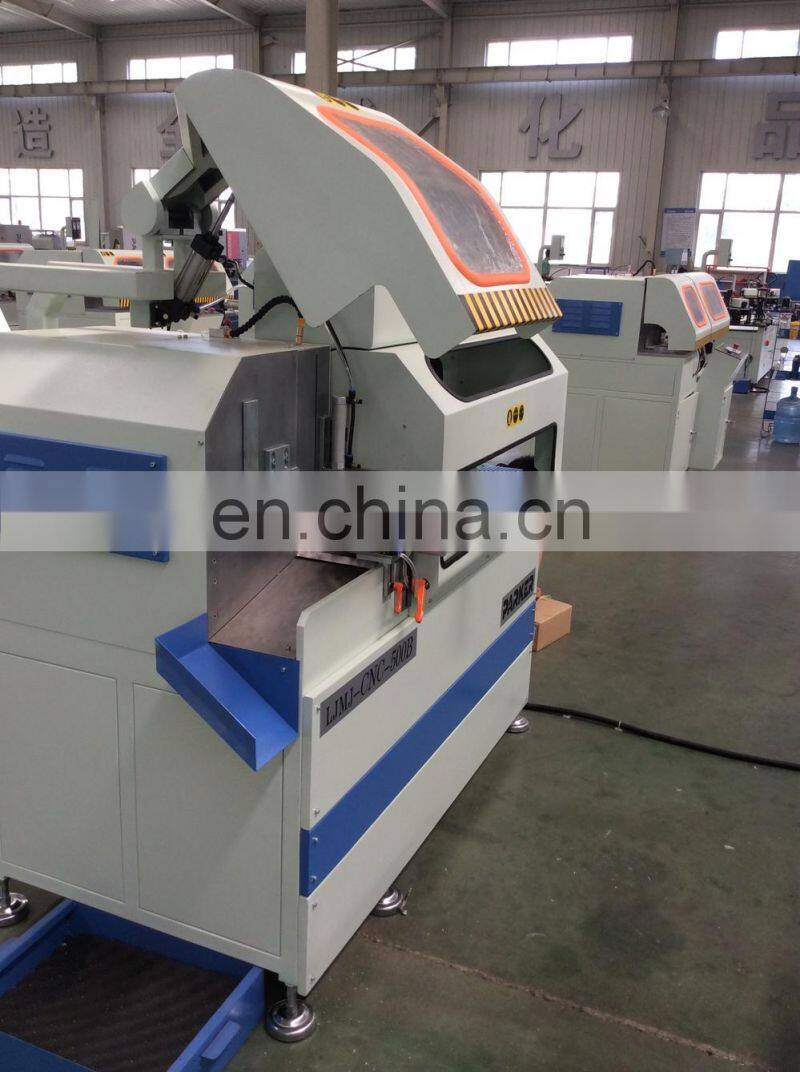

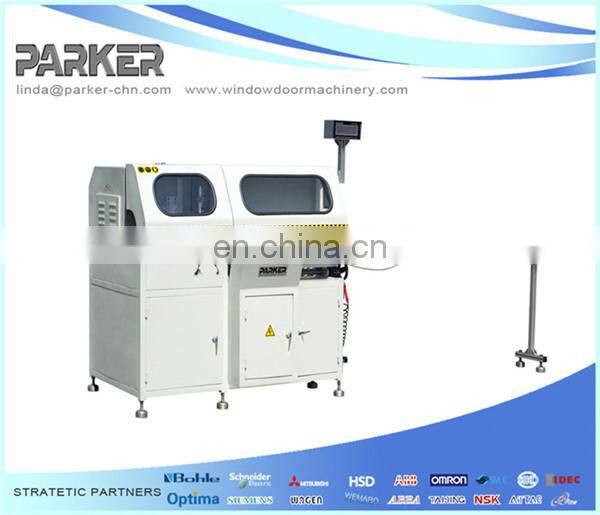

LJMJ-500PS digital display corner key cutting saw is a corner-key cutting machine equipped with digital display system. It is often used for aluminum corner connector cutting into right pieces, aluminum and curtain wall profile cutting, and plastic profile cutting. With Micro PC CNC control system, man-machine interface operation, and touch screen input and control, it is convenient for the corner key cutting saw to set the data. Parker has been engaged in producing corner-key cutting machines for over ten years. Our products are exported to many countries and regions, such as North America, East Europe and the Middle East.
Features of Aluminum cutting saw machine
1. LJMJ-500PS digital display corner key cutting saw is suitable for large volume production.

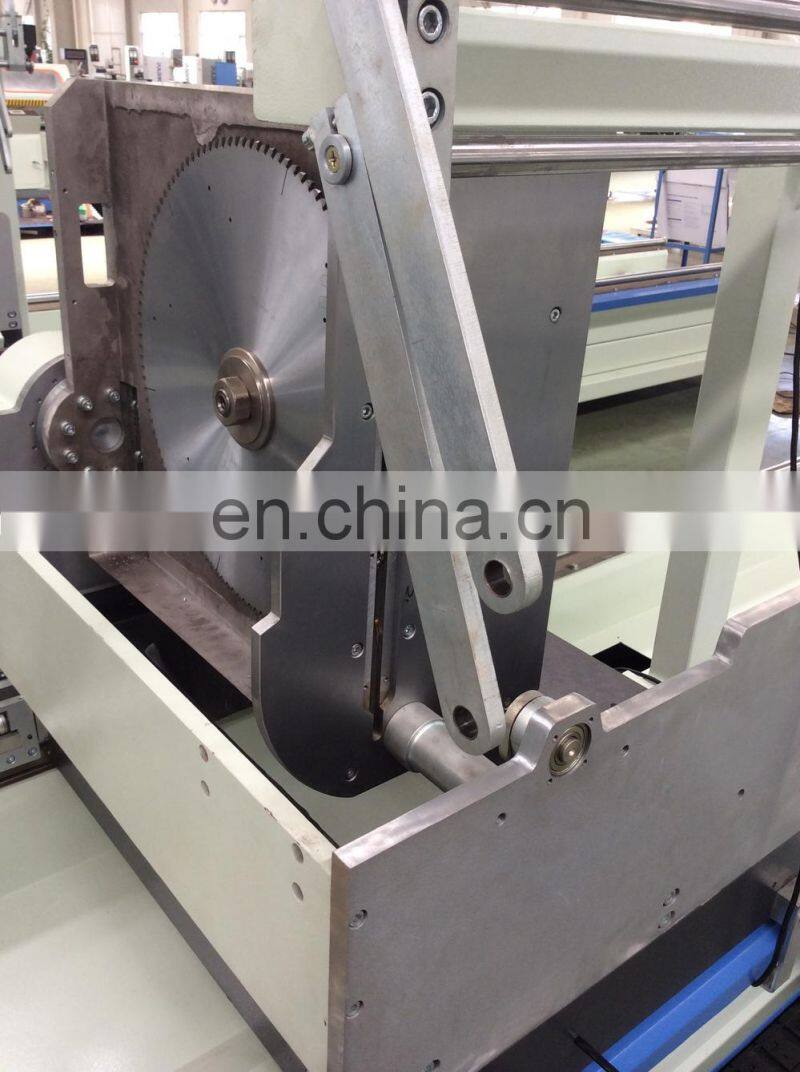

2. It adopts the imported carbide saw blade that ensures accurate processing and high endurance.

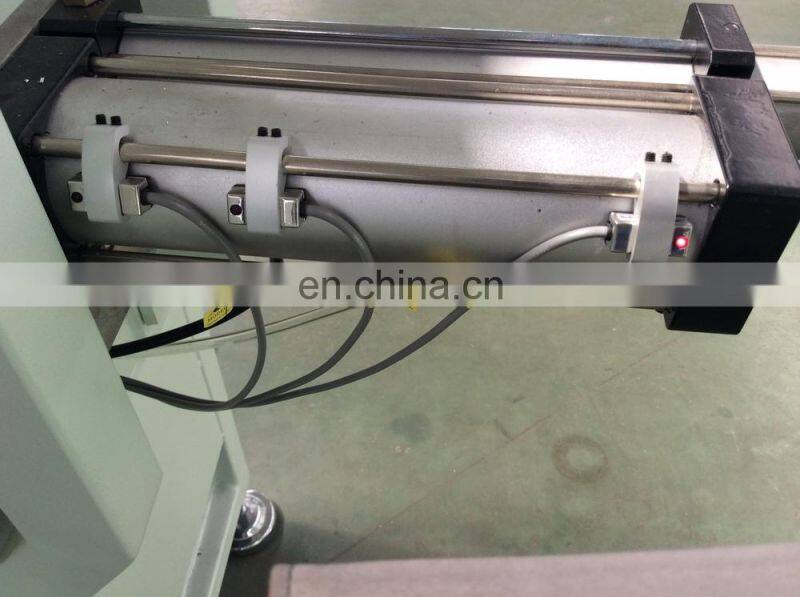

3. This corner-key cutting machine is equipped with automatic profile feeding device.
4. Linear motion bearing produces less resistance force and ensures high processing accuracy.
5. Parker corner key cutting saw possesses features of high automation, reliability and high production efficiency.
6. Clamping and feeding process adopt pneumatic control.
7. Our digital display corner-key cutting machines adopt automatic counters.
Parameters Data of Aluminum cutting saw machine
Model | LJMJ-500PS |
Type | Digital Display Corner Key Cutting Saw |
Cutting Sag | 0.1 mm |
Cutting Plainness | 0.1 mm |
Cutting Harshness | Ra12.5 µ m |
Power Supply | 380V 50 Hz (Three Phase, Four Wire) |
Saw Blade Diameter | Φ500 mm |
Rotary Speed | 2800 r/min |
Feeding Speed | 0 to 3 m/min |
Feeding Profile Length | 0 to 600 mm |
Air Pressure | 0.5 to 0.8 Mpa |
Air Consumption | 200 L/min |
Weight of Corner-Key Cutting Machine | 800 kg |
1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement
Founded in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment. With over ten years' production experience, Parker has become a leading manufacturer of window door machinery in China. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality window and door equipment for customers.
During the past few years, Parker has made great progress and has become well known and outstanding in domestic fairs for window door machinery. With advanced technological equipment, tremendous technical strength and reliable product quality, our window and door equipment has been well received by customers from Russian, Kazakhstan, Vietnam, Iran, etc. We have a perfect sales network and complete service system in China. We are also taking a leading role in setting branch companies abroad.
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? Can I visit there?
Our factory is located in Jinan City, Shandong Province, China, near to Jinan and Qingdao. You are warmly welcomed to visit us!
3. Q: How does your factory do regarding quality control?
We have strict control in testing of raw material, production process and final process. Only qualified products can be sent out.And we have passed ISO,CE certificate.
4.Q:What you can do if my machines have problems?
a.We can send you free components to you if your machines are in guarantee time.
b.We can send our engineers to repair your machines
5. Q: If OEM available?
Answer: Yes, as we usually do.
6. Q: What are your company normal payment Terms?
Answer: We accept T/T (30% T/T prepaid before production, 70% T/T prepaid before shipment)
