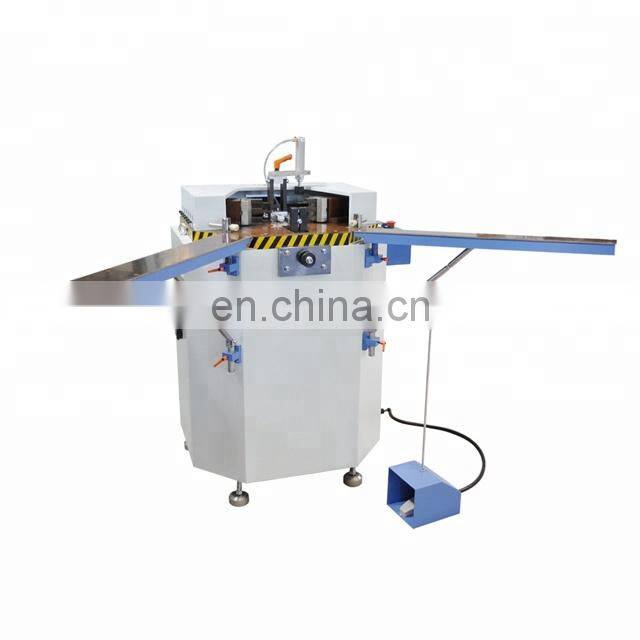

Aluminum Door Window Frame Single Head Corner Crimping Machine

Aluminum Door Window Frame Single Head Corner Crimping Machine thumbnail-1
Aluminum Door Window Frame Single Head Corner Crimping Machine thumbnail-2
Aluminum Door Window Frame Single Head Corner Crimping Machine thumbnail-3
Aluminum Door Window Frame Single Head Corner Crimping Machine thumbnail-4
Aluminum Door Window Frame Single Head Corner Crimping Machine thumbnail-5
Aluminum Door Window Frame Single Head Corner Crimping Machine thumbnail-6
Aluminum Door Window Frame Single Head Corner Crimping Machine photo-1
Aluminum Door Window Frame Single Head Corner Crimping Machine photo-2
Aluminum Door Window Frame Single Head Corner Crimping Machine photo-3
Aluminum Door Window Frame Single Head Corner Crimping Machine photo-4
Aluminum Door Window Frame Single Head Corner Crimping Machine photo-5
Aluminum Door Window Frame Single Head Corner Crimping Machine photo-6
US$ 4,500 - 4,500 MOQ: 1 set
Key Specifications
Get Latest Price
Brand Name:
PARKER
Place of Origin:
Shandong, China
After-sales Service Provided:
Overseas service center available
Contact Supplier Request Quote Chat Now
Haijinna CNC Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name PARKER
Place of Origin Shandong, China
After-sales Service Provided Overseas service center available

aluminum door window frame making machine /aluminium corner crimping machine / window door manufacturing





 aluminum door window frame single head corner crimping machine







Model:  LJJ-120

Feature:

  • ♦ Used for connection of 90°angle structure of aluminium doors and windows.

    ♦ The new linkage structure makes corner-assembling synchronous.

    ♦ Left and right punching heads feed synchronous to avoid deforming in corner-assembling procedure to make window corner connection more solid.

    ♦ Synchronously feeding structure makes the adjustment simple and easy.

    ♦ The blades can be adjusted up and down relatively by the threads.

    ♦ It can be equipped with single-blade multipoint blades, making the corner-forming more reliable, the work more efficient, the manufactures more precision and the quality more excellent.

Parameters:



♦ Voltage:

380V 50HZ

♦ Power:

1.5KW

♦ Air pressure:

0.5-0.8MPa

♦ Air consumption:

60L/min

♦ Hydraulic system pressure:

15MPa

♦ Oil tank capacity:

20L

♦ Max. width of profile:

120mm

♦ Seam of crimping error:

≤0.15mm

♦ Overall dimension:

1000mmx1200mmx1200mm
