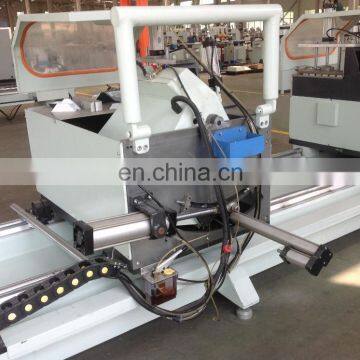

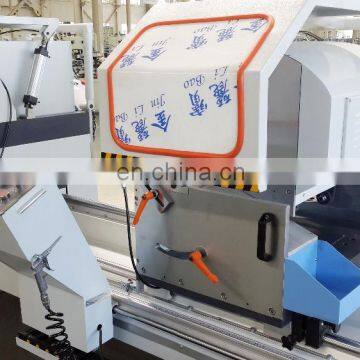

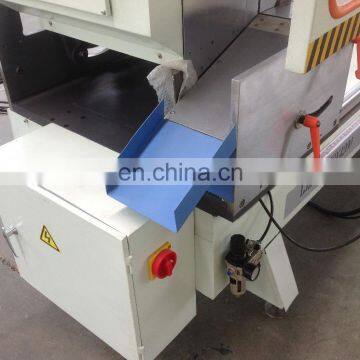

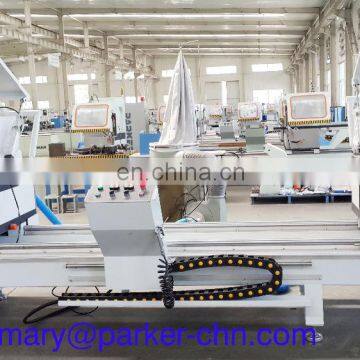

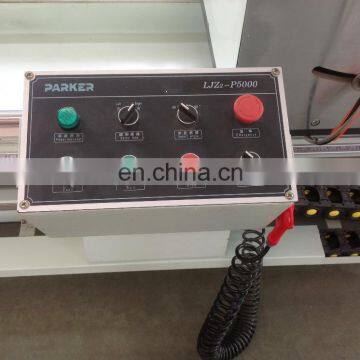

Multi-profile Double Saw For Aluminum

LJZ2-P5000

Equipment feature

1-    The whole machine body is welded by high tensile square tube, and has passed strength bearing assessment.

2-    The machine body is painted after pickling, phosphate and artificial aging treatment.

3-    The electric components with high quality and reliability and it can cut alu-alloy window-door profiles in certain length at one time.

4-    The whole control system wire lines are treated with safeguard for safe maintenance.

5-    Pneumatic system adopts imported pneumatic components so they have long life and easy to maintain, and it owns the function of automatic filtering water, drainage and lubricating cylinder. It is the important machine which produces high quality alu-alloy window -doors.

Technique parameter

Voltage: ……………….380V (3P+N) 50Hz

Motor power: …………2× 2.2Kw

Motor speed: …………2800r/min

Cutting length: ……….Max 4200mm    Min400mm

Cutting width: ………..Max 320mm

Cutting height: ……….Max 110mm

Air pressure: …………0.5-0.8Mpa

Air consumption: …….80L/min

Cutting angle: ………..90°, 45°

Feeding speed: ………0—3m/ min (variable-speed)

Saw blade size: ……..Φ500×4.4×Φ30×Z120

Overall dimension: …..5500mm×1750mm×1990mm

Weight: ……………….1800Kg

Q: How can I get the best machine for our business?

A: Just let us know your cutting material, size, thickness, and working area needed, we will suggest the most suitable machine and professional solution.

Q: When can we arrange shipment?
We usually arrange shipment in 15 days after getting deposit, but customized machines should be more than 25 days.

Q: This is my first time using this kind of machine, is it easy to operate?
A: Of course the machine is easy to operare. We will send you the English version user manual and install video which shows how to assamble and use the machine clearly, almost all the customers can operate the machine easily. No need to worry about this, after all, Parker will always be here to help!

Q: If the machine has problem in my place, how could I do?
A: Usually there won't be any problem under "normal use" as per the user manual. But in case you have any problem, our professional after-service team will provide you any support you need any time!

B.We can send you free components to you if your machines are in guarantee time.
C.We can send our engineers to repair your machines.

Q: This machine is not suitable for me, do you have more models available?
A: Sure, in order to meet different customers' different requirments, we reserched many other different machines.
