Home > Products > Aluminium Win-door machine > Aluminum Window Door Mullion Making Machine/ Aluminum Multi-Profiles End Milling Machine
Aluminum Window Door Mullion Making Machine/ Aluminum Multi-Profiles End Milling Machine
- Qingdao
- T/T Credit Card
You May Like
-
LJZ -CNC-E500-Automatic Double Mitre Saw Cutting Machine/Automatic Aluminum Section Double Head Cutting Machine
-
LJJ-120-Automatic Single Corner Crimping Machine/ Semiautomatic One Head Aluminum Window Frame Combining Section
-
Aluminum 4 Axis Curtain Wall CNC Machining Center
-
4 Axis Aluminium Profile Cnc Machining Center
-
High-speed 3 Axis Aluminum Profile Cnc Drilling Milling Machine
-
Aluminum and PVC Double Head Saw Cutting Machine
Product Details
| Place of Origin | Shandong, China | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

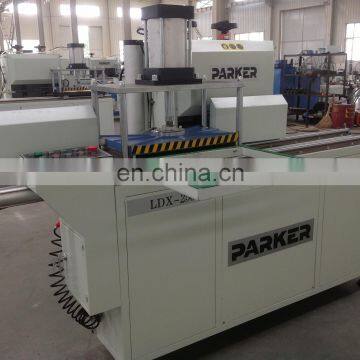

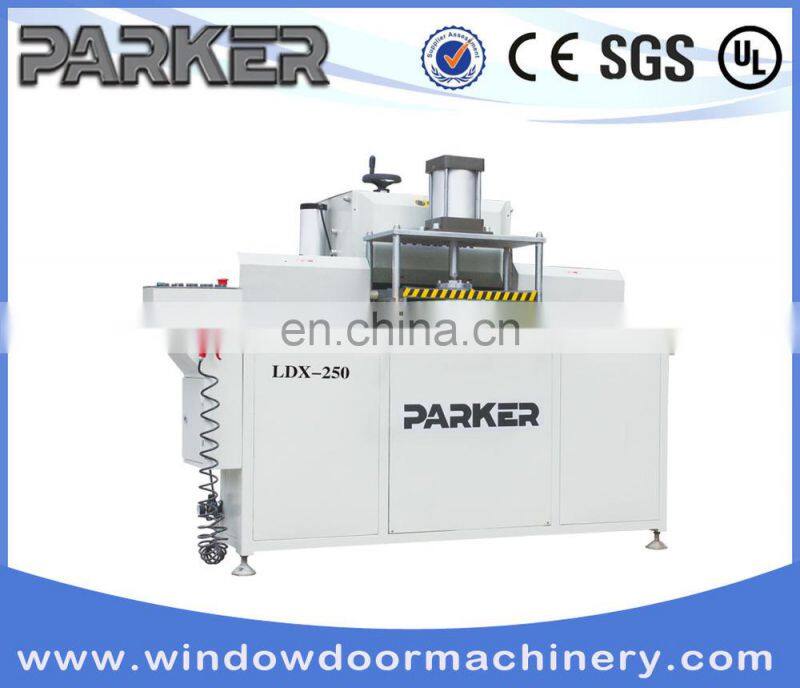

Aluminum Window Door Mullion Making Machine/ Aluminum Multi-Profiles End Milling Machine
Equipment Feature:

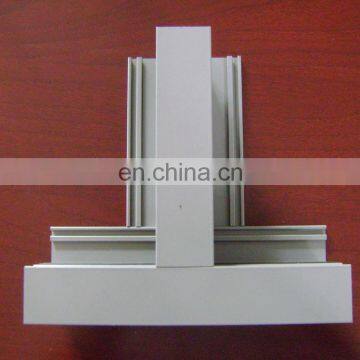

1.Used for aluminium profile end processing, and suitable for various profiles.
2.Clamp one time can process multi-piece profiles, which increased the processing efficiency.
3.Convenient tool adjustment to meet different processing requirement.
4.Need not ordering tools when process various profiles, thus can decrease cost and save time.

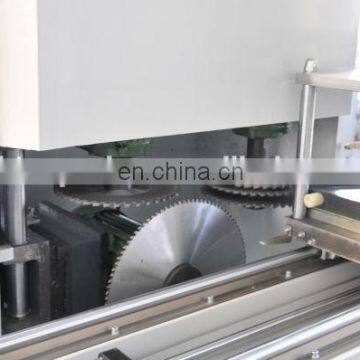

5.Large tool diameter, high milling speed and good processing result.
6.Our machine is specially designed with safe guards, and they clip the profiles tight, even when electricity is cut off suddenly. So it can ensure the operators’ safety.
Paremeters:
Rotary speed | 2800rpm |
Air pressure | 0.5-0.8Mpa |
Power supply | 380V(3P+N) 50Hz |
Feed speed | 0-1050mm |
Max diameter of principal axis | 32mm |
Max diameter of milling cutter | 250mm |
The dimension of the worktable | 530×320mm |
Maxm size of opening wedge | 40mm |
Motor restructuring program | 0-80mm |
Overall dimension | 2400×970×1640mm |
Weight | 1000Kg |
1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement
1. When can we arrange shippment?
We usually arrange shippment in 15 days after getting deopsit, but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
a.We can send you free components to you if your machines are in guarantee time.
b.We can send our engineers to repair your machines
