Product Details
| Brand Name | Better | Model Number | LXD-250 |
Product Description
Full automatic mullion end milling machine for Aluminum and PVC profile window door
Full automatic heavy duty end milling machine for PVC/UPVC/Plastic/Vinyl and Aluminum window door mullion making (Model:LXD-250)
Brief description
This machine is for milling the mullion/transom reinforced mullion profile end step face and end notch slot etc. It is used for milling the PVC/UPVC/Plastic/Vinyl and Aluminum profile and to connect the mullion profile and frame profile, suitable for screwing connection type mullion.
Features
1).Universal milling cutters (also say saw blades or cutting tools) can be adjusted in up/down,left/right directions to fit for different processing requirement and ensure the efficient working.
2).Large milling capacity, multi-pieces profile in one cutting/milling cycle cycle. With a large-sized work bench and long milling feed travel, it can mill 6--10 profiles in one operation with adjustable multiple cutting tools.
3).It is unnecessary to replace the milling cutters in case of product change so as to save the production setup period and cost ofmilling cutters.
4).Multiple sets of milling cutters can work simultaneously or separately based on different profiles.
5).With bigger diameter of milling cutters, the quality of machining surface is better.
6).Adopted the electrical motor protect device to improve the safety. It is specially designed with safe guards, and they clip the profiles tight, even when electricity is cut off suddenly, so it can ensure the operators' safety.
7).The hydraulic damping cylinder is used to push the feed of milling cutters to enable more stable operations. The thickened clamping plate can prevent the profiles from deforming.
8).This Model LXD-250 is the full automatic type, it can be installed with 4 milling cutters, 5 milling cutters. When it is with 4 milling cutters, the machine has 3 motors, total power is 6.6kw; When it is with 5 milling cutters, the machine has 4 motors, total power is 8.8kw.
9).If customer choose this full automatic Model LXD-250, customer will not post profile sample to us to make milling cutters when change profile, because this Model LXD-250 milling cutters can process all kinds of profile.
Parameters | |
Model | LXD-250 |
Power supply | 380V/50Hz or as required |
Input power | 6.6kw (or 8.8kw) |
Working air pressure | 0.5~0.8Mpa |
Motor rotational speed | 2840r/min |
Main shaft diameter | Ø32mm |
Milling cutter diameter | Ø250mm |
Max. processing hole size | 40mm |
Motor adjustment distance | 0-85mm |
Worktable dimension | 530x320mm |
Worktable feeding journey | 1500mm |
Cutting surface roughness | 12.5μm |
Overall dimensions (LxWxH) | 2400x1250x1900mm |
Net weight (about) | 700kg |
Main parts brand name | |
Electrical button and switcher | Schneider (France brand) |
AC contactor | Schneider (France brand) |
Cylinder | Baidi (China Taiwan brand) |
Solenoid valve and air filter device | STNC (China Taiwan brand) |
Linear bearing system | SBC (South Korean brand) |
Standard accessory | |
Certificate | 1 piece |
Complete tooling | 1 set |
Operation manual | 1 piece |

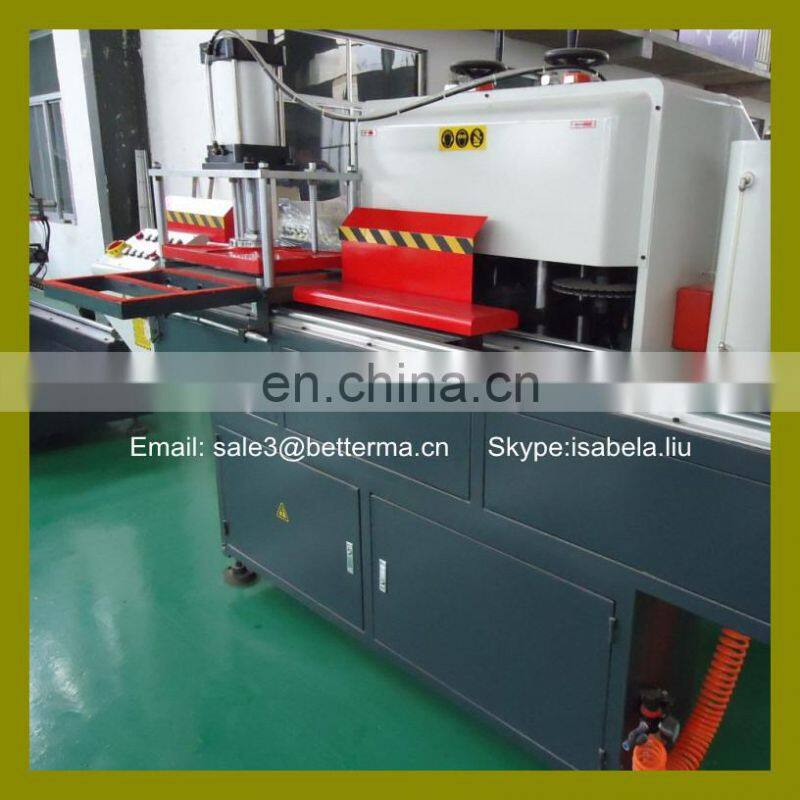

Common type Model LXD-250 pictures
This common type, the cutters are fixed, the working table is movable on the bearing motion pair (guide rail) to process the profiles.(Many customers often choose this common type.)




Our other type Model LXD-250
This type, the working table is fixed, the cutters is movable on the bearing motion pair (guide rail) to process the profiles.




End milling machine (Model LXDA-200)

Our company workshop and machines certificates
Our machines in foreign customer workshop pictures
