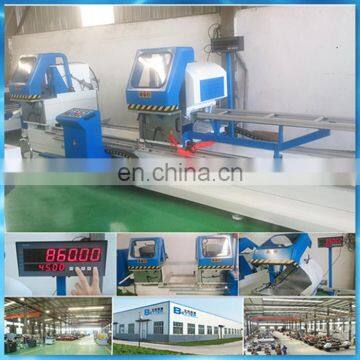

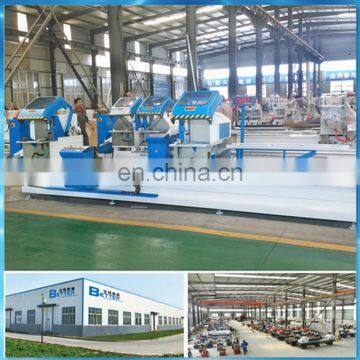

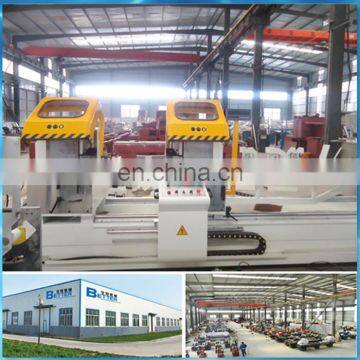

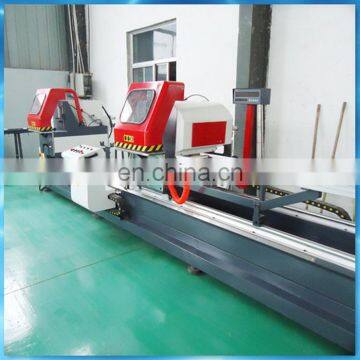

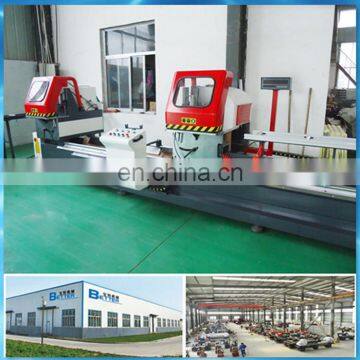

Double heads cutting saw aluminum window door machine,LJZY-500*4200
Machine detailed images
This is one new designed machine which is used for cutting profile of aluminum window and door,curtain wall and corner connector.Imported carbide saw blade gives accurate processing and high efficiency. Imported linear guide rails.Hydraulic damping cylinder.Adopt digital displayer show the cutting length and other parameters,ensuring high efficiency and accuracy.It has feature of easy operation,reliable performance,advanced technique and convenient maintenance.Two head can work together or single,one time can cut off the required length and angle.
Power supply |
As required |
Cutting motor power |
2*3kw |
Operation air pressure |
0.4 - 0.6Mpa |
Blade rotational speed |
3000 r/min |
Saw blade specification |
D=500mm d=30mm |
Cutting length |
Min380mm Max4200mm |
Cutting angle |
90°,45°,22.5°,67.5° |
Contour dimension(L*W*H) |
5500*1750*1990mm |
Weight(about) |
1500kg |
Different types mitre cutting saw machines
International standard ply wooden packing or as your required
