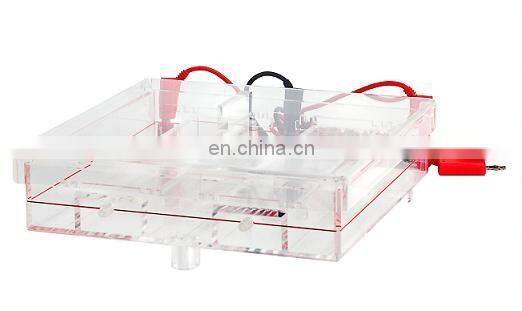

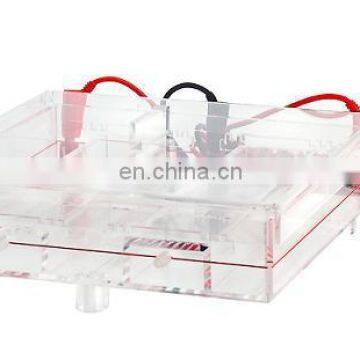

CA-SYS Cellulose acetate film (CAF) electrophoresis

CA-SYS Cellulose acetate film (CAF) electrophoresis

Introduction

CAF-electrophoresis is an electrophoresis technique with solid prop was made with CAF.

CAF has an uniform foam structure (thick 120μm) with strong permeability, which doesn`t have resistance to molecule`s movement, can be electrophoresis prop, doesn`t need too much sample, with clean separation, doesn`t have adsorption, an applied range is large, fast and useful, you can use the membrane after coloring with ethanol and glacial acetic acid for transparent, the membrane after transparent can be used for saving and quantitative analysis. Serum protein CAFelectrophoresis often uses in clinic for analyzing the protein in blood, urine etc., provides diagnosing of liver, kidneys etc. illnesses. For example patients with dropsical nephritis, among plasma protein there is an albumin with medium or small molecular weight, it leaks into urine and goes out from body, and you can see on the pictures from CAF-electrophoresis how albumin gets smaller and lighter.

Or there another one example, patients with chronic hepatitis or cirrhosis of the liver, because hepatocytes were damaged,  the ability of liver plasma protein fell down, that made plasmaalbumin relatively lower, butγglobulin increased. On the pictures of CAF-electrophoresis

of patients with multiple myeloma you can find abnormal globulin stripes.

Feature

1 CA-SYS was designed with consultation with experts:

NHS biology experts directed a film electrophoresis and a screening of MPS.

2 Effect electrophoresis interval:24.5*26cm(W*L) approaches big, small and standard membrane and big area size 145*192mm,

standard area size 78*150mm and small area size 78 x 75mm.

3 Variable sample loading guide: variable sample loading guide, it approaches to different preparation, you can fix them inside chamber, supports membrane or support gel.

4 Transparent top cover: effective control of lab process and keeping of unitized environment,

using light and handy fixed membrane or paper membrane.

Technical Parameter

System size(W*L*H): 30*32*65cm

Electrophoresis chamber size(W*L*H): 24.5 x 26 x 3.5cm

Recommended volume of buffer solution:1200ml

Max membrane length:230mm

Recommended power: 55V (10mA)

Recommended port:4cm

Recommended power model:EV243

 Apps include:

 Serum Proteins

Lipoproteins

Hemoglobin

Metabolites in Urine and Spinal Fluids

Electrophoresis chamber with its main block size 30*32cm(separate in the center)

2*variable type connector with clips(27cm length) -----CA-ABS

Transparent top cover 4mm power
