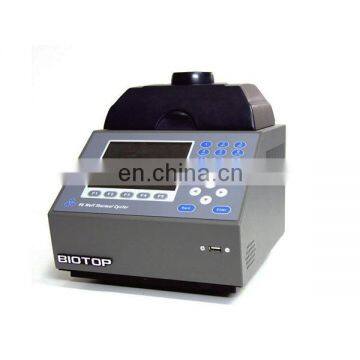

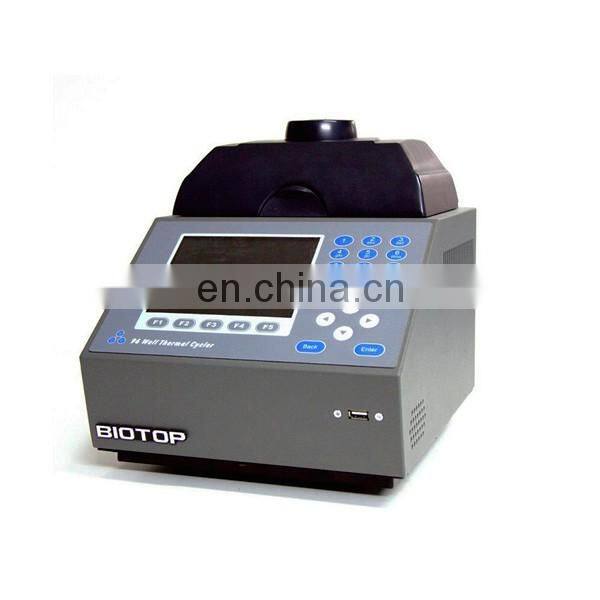

Gray-96G Thermal Cycler

Gray-96G Thermal Cycler

Introduction

Gray-96G is a premium product for PCR with a big color display. It has good thermal cycle function.Gray-96G is equipped with a semiconductor cooler which is a base of heating and cooling system, with

improved functions and stabilization, at the same time big display and curve programming interface were added.

Friendly user interface and extension functions of USB flash provide quicker, more practical and strong thermal cycle.

Feature

 1  It uses imported semiconductor chip, operation life is guaranteed, our company provides free service for 3 years.

 2 New 5.7 inch color liquid crystal screen, curve graphic display program

 3 A pressure corresponds to the thermal cover, that provides safety for PCR tubes.

 4 The newest USB port, with USB flash you can unlimited download programs.

 5 The speed of changing temperature is very fast, that saves experimental time.

 6 The temperature is equality, that provides the best result of your experiment.

Technical Parameter

ModelGray-96G

Block capacity:96*0.2ml+77*0.5ml

Heating-cooling systemThe newest semiconductor technology

Applicable material 0.2mlPCR tube,0.5mlPCR,discharge tube,96 wells, original load disk

LCD display5.7"TFTColor display,curve graphic display program

USB functionsUnlimited downloading

Communication portUSB2.0 and RS232

Original functionsYou can buy a set of original load disk.

Temperature function

Block temp range0℃-100℃

Max heating rate4℃/sec

Max cooling rate4℃/sec

Block uniformity≤±0.2℃(needs 30 sec for getting setting temperature)

Block accuracy≤±0.2℃ (30℃-100℃)

Block resolution0.1℃

Temp controllingSimulate tube + Block

Adjuster of speed of changing temperature Available

Gradient function

Gradient Temp accuracy≤±0.3℃(30℃-99.9℃)

Gradient Temp uniformity≤±0.3℃(needs 30 sec for getting setting temperature)

Gradient range30℃~99.9℃

Temp range≤30℃

Gradient Temp point distribution12

Programming function

Programming storageInternal storage includes 120 programs, you can download unlimited programs through USB

Max volume of series40, and you can make multinested loop

Max volume of loops100 standert loops(there are can be 60000 nested loop)

Time increment/decrease1-120 sec,you can also make a Long PCR experiment

Temp increment/decrease0.1-10.0℃,you can also make a Touchdown PCR experiment

Auto pause Available

Power-off protectionAvailable

4℃ heat preservationheat preservation time is unlimited

Status displayAvailable

Real-time clockRecording of program modification and working time

Thermal cover function

Thermal cover heightUnlimited regulation, a pressure corresponds to various kinds of PCR tubes and load disks
