Laser Measurement Sensor

Specifications

Product overview

Laser measurement sensor which uses laser to measure the phase comparison method, can be measured without contact with the surface or the reflective target surface.

The product structure design is reasonable, with adjustable mounting bracket, purge the lens unit, air cooling device, suitable for industrial applications, especially for high-precision, non-direct contact applications, such as crane operation locate and metallurgical production line control and so on.

Product features

1. Mm level measurement accuracy
2. Continuous detection of a moving object
3. For high temperature/dusty environment
4. Precision-heavy-no need to reflect board
5. With regional test ,control system and numeration function

Product type

ZYT-LDS-0061     10Hz  RS232/RS422

ZYT-LDS-0062      50Hz  RS232/RS422

Technical target

• Accuracy: ± 1mm
• Measuring temperature:800 °C
• Resolution rate: 0.1mm
• Repeatability: 0.5mm
• Measuring distance: 0.1 ~ 30m of any surface
                                        30 ~ 150m need to add reflectors
• Supply voltage: 10 ~ 24VDC
• Power consumption: 1W
• Laser Level: 650nm visible red
• 2 levels of security laser≤ 1mW
• Switch capacity: alarm output
• Simulation volume: 4 ~ 20Ma
• Protection class: IP65
• Dimensions: 195 × 55 × 115mm
• Housing: Aluminum
• Life: more than 50,000 h
• Weight: 2.0kg

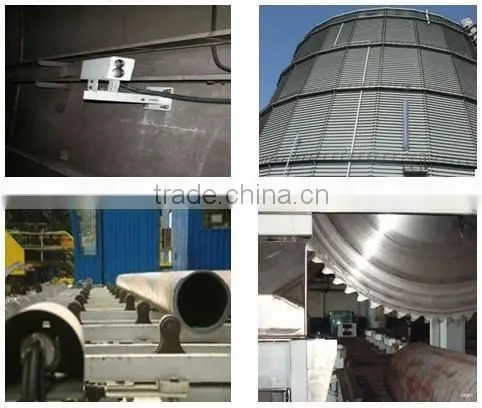

Application illustration
