DR-200Bc ELISA Analyzer

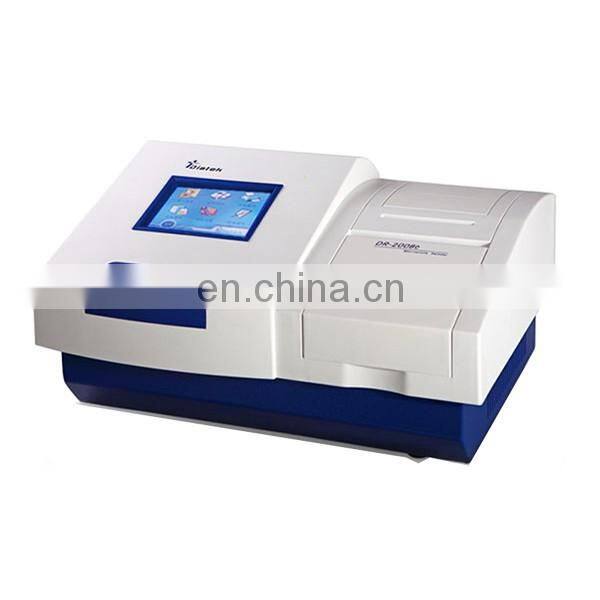

DR-200Bc ELISA analyzer

Introduction

  That enzyme immunoassay analyzer is a dedicated instrument, also known as ELISA microplate detector. Can be simply divided into two major categories of semi-automatic and fully automatic, but it works basically the same, its core is a colorimeter, which uses colorimetric analysis. General requirements for the determination of the final volume of test solution in 250μL or less, with the general photoelectric colorimeter can not complete the test, so the microplate reader photoelectric colorimeter with special requirements.

Features

Reference type channel design, fast 8-channel optical fiber testing, automatic centering, measuring more accurate

Intelligent light control and improve the efficiency of the light source, lamp life

Convenient touch screen input, and an optional external mouse and keyboard

Layout save and import functions, a substantial increase in the efficiency of commonly used test project

96 full-page full-screen display data, convenient visual layout settings

Veneer multiple test functions, the board can be performed 12 different tests at the same time

A variety of qualitative / quantitative analysis mode, you can project dynamics testing and data analysis

Printable Chinese comprehensive report, hospital name, patient name and the project can be entered Chinese

With perfect quality control function, QC data is automatically saved, you can print a variety of quality control charts

Optional external Found WordStation enzyme immunoassay workstation software, system is powerful

Technical parameters

Sample Parameters: 48/96 standard board or strip plate

Applicable hole: flat, U and V

Measuring range: 0.000 - 4.000 Abs

Resolution: ± 0.001Abs (display), ± 0.0001Abs (internal)

Accuracy: ≤ ± 0.008A

Repeatability: ≤ ± 0.2%

Stability: ≤0.003A

Channel Differences: ≤0.01A

Wavelength range: 330m - 1100m

Wavelength configurations: 405,450,492,630nm, can be equipped with four kinds of wavelength

Test Method: Quick Scan, precision scanning, dynamic scanning

Reading speed: single-wavelength ≤3 seconds / 96 seconds dual wavelength ≤6 / 96

Shock board features: programmable vibration plate speed and time

Light source: a single light source, halogen

Display: 5.7-inch high-brightness color LCD screen

Input: Touch screen, optional mouse, keyboard

Data storage: 200 000 test data, test items 500

Calculation Mode: Mode qualitative and quantitative mode, a variety of calibration curve equation

Best environment: 5 ℃ --40 ℃, the maximum humidity: 80%

Power supply voltage: 220VAC ± 10%, (50 ± 1) Hz

Volume: 460mm (L) × 350mm (W) × 197mm (H)

Weight: 7.5Kg
