Home > Products > Life science instruments and equipments > SO-100 OCT Scanner for Life Science
SO-100 OCT Scanner for Life Science
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Brand Name | SUONUOXING-Y | Place of Origin | Shaanxi, China | |
| Model Number | SO-100 |
Product Description

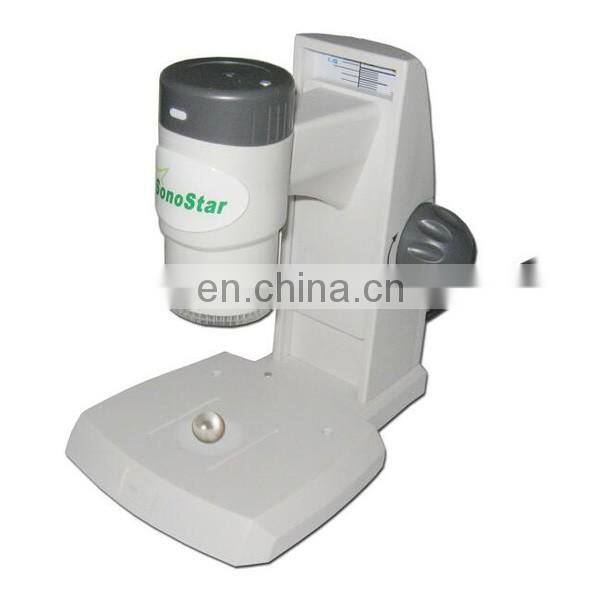

SO-100 OCT Scanner for life Science
Instroduction
OCT Scanner(Optical Coherence Tomography) Thin Layer Imaging Detector is equipment using optical coherence tomography (OCT) technology to detect and image pearls, coatings and other thin materials, technology innovation and product performance are in a leading position both at home and abroad. Broad product application scope and wide prospect of market, it has been adopted by numerous laboratory and testing organizations. Detection of pearl, coating materials and other thin translucent materials. Imaging depth up to 3 mm in highly scattering biological tissue.
Optical Coherence tomography (Optical Coherence Tomography, OCT) is an imaging technique rapidly developed in nearly ten years, it uses basic principle coherent of light interferometer to detect back reflection or several scattering signal to the incident weak coherent light of different depth levels. By scanning, it can get broken two-dimensional or three-dimensional structure image in real-time.
Features
High sensitivity and resolution: high resolution can achieve 5~15μm, clear and real image, detect data is very accurate.
Fast detection speed: imaging rate reaches 1 picture/s, can realize real-time imaging and online detection, scanning speed of frequency domain scanning system can reach 40000Hz/s, can realize real-time 3d imaging.
Nondestructive no radiation: no damage to the seized material to complete the detection, and exposure to the seized material’s optical power was only 1~2mW, cannot produce any damage and radiation.
Noncontact: The probe doesn’t need to contact with the surface of detection tissue
Technical Parameters
Light wavelengths: 1300nm
Light source power: 5mW
Sample area light power: 1~2mW
Vertical resolution: 20μm
Transverse resolution: 20μm
Scanning depth: 3mm
Imaging velocity: 1~2p/s
Working distance: 50~70mm
