Home > Products > Analytical instruments > BD- 1000 Ultra micro spectrophotometer

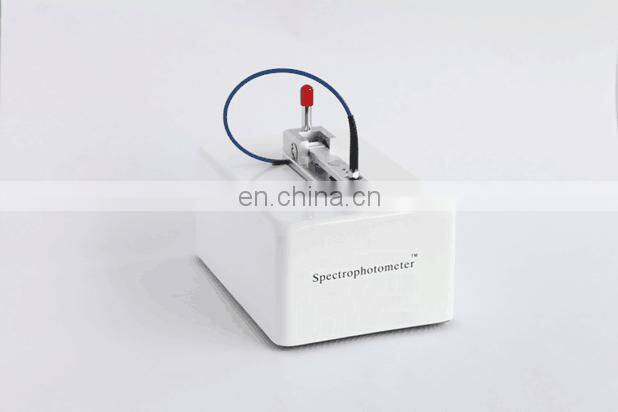

BD- 1000 Ultra micro spectrophotometer
- 30 Set / Sets per Month
- SHENZHEN
- T/T Credit Card
Product Details
Brand Name: | YIMA | Place of Origin: | Shaanxi, China | Model Number: | BD- 1000 |
Size: | 32*29*33cm | Weight: | 4kg | Measurement Range: | 190-850nm |
Wavelength Range: | 190-850nm | Focal Length: | Contat us |
Product Description
Introduction:
It is full wavelength, ultra micro spectrophotometer, can be used for measurement of nucleic acids, proteins, cells, microarray sample and regular full wavelength scanning, mainly used in the field of biology, medicine, pharmacy, microorganisms. It has high accuracy, fast measuring speed, small size and other excellent characteristics.
Fratures:
Surface tension technology, auto adjusting optical path
0.2-2uL sample volume, no need to dilute or measure container
Small volume, portable equipment, optional power supply module to meet site analysis and measurement in wild
For unknown sample, it shows automatically results of full wavelength scanning
Easy to use, 1 sample, 3-5 seconds for full range scanning( regular mode), 1 second( quick mode).
Connected with computer through USB interface, no need power supply switching, without warming.
Advanced system Structure
Light source: original American imported xenon lamp (full spectrum, no need warming, 100millions long life)
Light path: quartz fiber stainless steel package, 100um laser drilling, precision of 1um.
Optical splitter: diffraction grating (no rotating, no mechanical motion error,wavelength stabilization, excellent reproducibility)
Detector: 2048/3648 column pixel CCD (equivalent to 2048/3648 detectors for simultaneously measuring)
Professional application software
Easy to operate, many analysis module designed to meet kinds of filed.
1, Measuring concentration of A260 nm nucleic acids
2, Measuring concentration of protein
3, OD600 measuring concentration of cells and bacterium
convenient data management mode. Each user account and password can be set for individual use, also can use the default public accounts.
live image storage format and form, form a compatible Excel, facilitate the follow-up data processing, and can generate Word analysis report.
have diagnostic state instrument working module, abnormal automatic jump out of a message, and guide to solve common problems.
Technical parameters :
The instrument model | BD- 100 | BD- 200 | BD- 500 | BD- 1000
| |
The minimum sample volume | 2ul
| 1ul
| 0.5ul
| 0.2ul
| |
Optical path | 1mm (automatic adjustment of 0.2mm) | 1mm (automatic adjustment of 0.1mm) | 1mm (automatic adjustment of 0.05mm) | 1mm (automatic adjustment of 0.05mm) | |
Light source | Xenon flash lamp | ||||
The detector pixel | 2048 CCD array | 3648 CCD array | 2048 CCD array | 3648 CCD array | |
The wavelength range | 220-750nm | 220-840nm | 190-840nm | 190-850nm | |
Wavelength accuracy | 1nm | 0.4nm | 1nm | 0.4nm | |
Spectral accuracy | Less than or equal to 3nm (FWHM at Hg 253.7nm) | Less than or equal to 1.2nm (FWHM at Hg 253.7nm) | Less than or equal to 1.8nm (FWHM at Hg 253.7nm) | Less than or equal to 1.2nm (FWHM at Hg 253.7nm) | |
Optical absorption accuracy | 0.003 OD (1mm path) | 0.002OD (1mm path) | |||
The accuracy of the optical absorption | 2% (at 0.76 at 257nm) | ||||
The optical absorption range | 0.02-75 OD (10mm path) | 0.02-150 OD (10mm path) | 0.02-300 OD (10mm path) | 0.02-300 OD (10mm path) | |
The lower limit of detection | 2ng/ul (dsDNA) | ||||
Detection limit | 3700ng/ul (dsDNA) | 7500ng/ul(dsDNA) | 15000ng/ul(dsDNA) | ||
The detection time | <10 seconds | <3 seconds, fast mode: 1 | <5seconds | <3 seconds, fast mode: 1 | |
Bottom size | 14*20cm | ||||
Weight | 2kg | ||||
The sample base material | 303 stainless steel and quartz fiber | 316L stainless steel and quartz fiber | 303 stainless steel and quartz fiber | 316L stainless steel and quartz fiber | |
Operating voltage | 12V | ||||
Computer operating system | Windows 7, Windows 8 and other optional | ||||
Dear customer:
We ,Xi’an Yima Opto-electrical Technology Com.,Ltd. is an integrated economic entity of R&D,manufacturing and trading with over 20 years of history .
Our business scope covers various fields such as biochemical analysis,environmental protection,industrial testing, bioscience,medical apparatus and instruments,internet technology and some frontier science.
Through a long-time development,we own a national resources system of various professional talents , abundant supply for various components &parts and special materials, full producing &processing equipments , strong Technological standardization and a complete quality assurance system.
If you need OEM or ODM in manufacturing ,scientific research , market development and or you want to build your own brand in your country, it’s our honor to cooperate with you.In this way ,we have developed many products for our customers from the USA, Europe and South Africa and got good feedback on Alibaba.
We firmly believe that science and technology is no boundaries.
Our mission is to make every effort to contribute to all humanity.
