Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > FYS Fluorine Plastic Submerged Pump Corrosion Resistant Pump

FYS Fluorine Plastic Submerged Pump Corrosion Resistant Pump

FYS Fluorine Plastic Submerged Pump Corrosion Resistant Pump thumbnail-1
FYS Fluorine Plastic Submerged Pump Corrosion Resistant Pump thumbnail-2
FYS Fluorine Plastic Submerged Pump Corrosion Resistant Pump thumbnail-3
FYS Fluorine Plastic Submerged Pump Corrosion Resistant Pump thumbnail-4
FYS Fluorine Plastic Submerged Pump Corrosion Resistant Pump thumbnail-5
FYS Fluorine Plastic Submerged Pump Corrosion Resistant Pump photo-1
FYS Fluorine Plastic Submerged Pump Corrosion Resistant Pump photo-2
FYS Fluorine Plastic Submerged Pump Corrosion Resistant Pump photo-3
FYS Fluorine Plastic Submerged Pump Corrosion Resistant Pump photo-4
FYS Fluorine Plastic Submerged Pump Corrosion Resistant Pump photo-5
US$ 500 - 10000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
kenshine-pump
Place of Origin:
China
Model Number:
100FYS-32
Contact Supplier Request Quote Chat Now
Kenshine-pump
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name kenshine-pump
Place of Origin China
Model Number 100FYS-32
Application Submersible
Fuel Other, electric motor
Power Electric
Usage Other, chemical fluids transfer
Theory Centrifugal Pump
Standard or Nonstandard Standard
Structure Single-stage Pump
Pressure Low Pressure

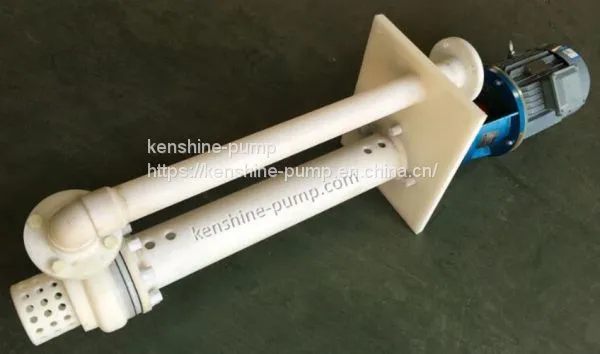

FYS Corrosion resistant submerged pump is the developed single stage single suction long shaft submerged pump with vertical structure. The flow parts for FYS corrosion resistant submerged pump is made of fluorine plastic alloy and the lower protection sleeve is made of silicon carbide with high quality.

FYS corrosion resistant submerged pump is suitable to transport corrosive liquids without solid particles and the temperature of liquids is at 0 to 120 degree Celsius.

FYS corrosion resistant submersible pump has the good corrosion resistance and abrasion resistance. The pump body and impeller are partly immersed into the liquid. So the pump occupies a small area and the shaft seal has no leakage. The liquid level must be higher than 180mm above the central line of the impeller. The pump should be started according to the direction indicated and can not be reversed.

50FYS-25

50 means pump inlet diameter(mm)

FY means corrosion resistance submerged pump

S means the pump material is for fluorine plastic alloy

25 means Head



Performance range:

Flow rate:2 to 460m3/h

Head:3-60m3/h

Pump material: fluorine plastic alloy

Data sheet:

Model Speed (rpm) Flow (m3/h) Head(m) Motor power (KW) Pump outlet (mm)
25FYS-6 2900 1.2 7 0.37/0.55 20
1.5 6
2.5 5
25FYS-16 2900 1.5 17.5 0.55/0.75 20
2.5 16
3.5 14.5
32FYS-20 2900 3.5 22 1.1/1.5 25
5.5 20
7.5 16
40FYS-20 2900 5 22 1.5/2.2 32
7.5 20
10 16
1450 2.5 5.5 0.37/0.55
3.75 5
5 4
50FYS-25 2900 12 28 3/4 40
17 25
25 16
1450 6 7 0.75/1.1
8.5 5
12.5 4
50FYS-50 2900 7.5 52 5.5/7.5 32
12.5 50
15 48
1450 3.75 13 1.1/1.5
6.3 12.5
7.5 12
65FYS-20 2900 15 21.5 4/5.5 50
25 20
30 18.5
1450 7.5 5.3 1.1/1.5
12.5 5
15 4.5
65FYS-32 2900 15 34 5.5/7.5 50
25 32
30 30
1450 7.5 8.5 1.5/2.2
12.5 8
15 7.5
65FYS-50 2900 15 53 7.5/11 40
25 50
30 47.5
1450 7.5 13 2.2/3
12.5 12.5
15 11.5
80FYS-20 2900 30 23 5.5/7.5 65
50 20
60 17
1450 15 6 1.1/1.5
25 5
30 4
80FYS-32 2900 30 36 7.5/11 65
50 32
60 28
1450 15 9 1.5/2.2
25 8
30 7
80FYS-50 2900 30 55 15/18.5 50
50 50
60 45
1450 15 13.5 3/4
25 12.5
30 11
100FYS-20 2900 60 24 11/15 80
100 20
120 16
1450 30 6 2.2/3
50 5
60 4
100FYS-32 2900 60 36 15/18.5 80
100 32
120 28
1450 30 9 3/4
50 8
60 7
100FYS-50 2900 60 56 18.5/22 65
100 50
120 44
1450 30 14 5.5/7.5
50 12.5
60 11
125FYS-50 2900 120 61 37/45 100
200 50
240 41
1450 60 15 7.5/11
100 12.5
120 10
150FYS-20 1450 120 24.5 18.5/22 125
200 20
240 15
200FYS-20 1450 240 23 37 150
400 20
460 18


Product Tags: centrifugal pump , chemical pump , submerged pump , fluorine plastic pump , vertical pump , corrosion resistant pump
