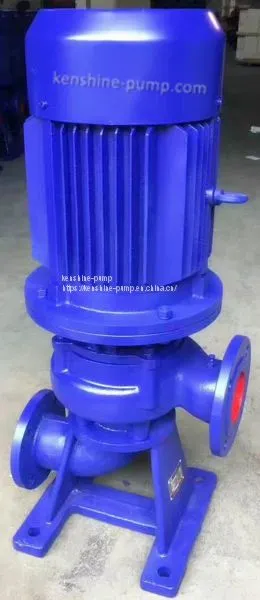

QW,WQ Submerged sewage pump
- 1000 Set / Sets per Month
- Shanghai
- T/T
- 7 days
- ISGB Vertical pipeline centrifugal booster pump easy disassembly installation
- JMZ,FMZ Stainless steel self priming alcohol pump
- FZB plastic self priming chemical transfer pump
- KCB,2CY stainless steel Gear oil oi transfer pump
- FB,AFB Stainless steel corrosion resistant centrifugal pump
- CQB Stainless steel magnetic drive pump
Product Details
Brand Name: | kenshine-pump | Place of Origin: | China | Model Number: | WQ100-100-15-7.5 |
Application: | Sewage | Fuel: | Other, electric motor | Power: | Electric |
Usage: | Other, wastewater handle | Theory: | Centrifugal Pump | Standard or Nonstandard: | Standard |
Structure: | Single-stage Pump | Pressure: | Low Pressure |
Product Description

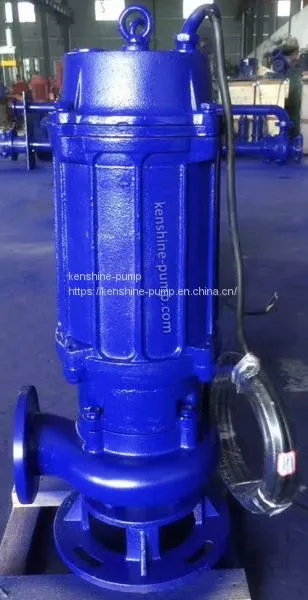

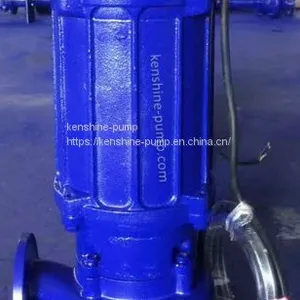

Submersible sewage pump

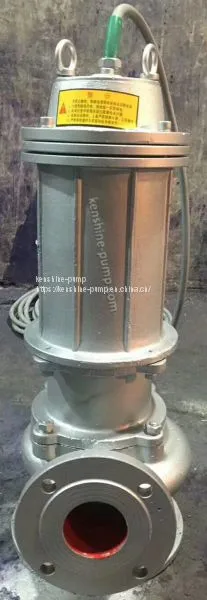

pump material:cast iron or stainless steel
motor: explosion proof motor or non explosion submersible motor IP68,F
Normal temperature to 45 degree celsius, High temperature up 100 degree C
The submersible sewage pump handles the wastewater or waste liquids with solid grain or fiber etc impurity.
QW,LW,GW,WQ Series submersible not-clogging sewage pump
Summary:

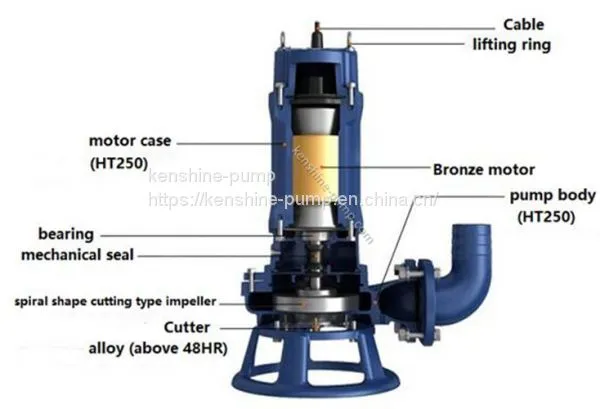

Submersible type and pipeline type and vertical type etc not-clogging sewage pump is the new ones with energy-saving and high effiiciency. The pumps adopt the impeller with single passage and hard alloy double rotary seals. Electric motor is devided by oil chamber. The pumps have the advantages such as not-clogging and wearable and convenient operation and energy-saving and hight efficiency.
The pumps are suitable to transport the industrial water and city waste water with solid grain and fiber. They can also be used as discharge water and paper pulp pump and filter and washing and cooling and circulation pump and gardening pump. They are widely used in mine and instructure and hospital and restaurant and waste water etc conditions.
Parameter:
Model | Characteristic | Power | Rotary speed | Voltage | ||
Outlet | Capacity | Head | ||||
25-8-22 | 25 | 8 | 22 | 1.1 | 2900 | 380 |
32-10-15 | 32 | 10 | 15 | 1.5 | 2900 | 〃 |
40-15-30 | 40 | 15 | 30 | 2.2 | 1900 | 〃 |
50-20-7 | 50 | 20 | 7 | 0.75 | 1450 | 〃 |
50-20-15 | 50 | 20 | 15 | 1.5 | 2900 | 〃 |
50-15-25 | 50 | 15 | 25 | 2.2 | 2900 | 〃 |
50-18-30 | 50 | 18 | 30 | 3 | 2900 | 〃 |
65-25-15 | 65 | 25 | 15 | 2.2 | 2900 | 〃 |
65-25-30 | 65 | 25 | 30 | 4 | 2900 | 〃 |
80-40-7 | 80 | 40 | 7 | 2.2 | 1450 | 〃 |
80-40-15 | 80 | 40 | 15 | 4 | 2900 | 〃 |
80-65-25 | 80 | 65 | 25 | 7.5 | 2900 | 〃 |
100-85-10 | 100 | 85 | 10 | 4 | 1450 | 〃 |
100-100-15 | 100 | 100 | 15 | 7.5 | 1450 | 〃 |
100-85-20 | 100 | 85 | 20 | 7.5 | 1450 | 〃 |
100-100-25 | 100 | 100 | 25 | 11 | 1450 | 〃 |
100-100-35 | 100 | 100 | 35 | 15 | 1450 | 〃 |
125-115-15 | 125 | 115 | 15 | 15 | 1450 | 〃 |
150-180-15 | 150 | 180 | 15 | 15 | 1450 | 〃 |
150-180-20 | 150 | 180 | 20 | 18.5 | 1450 | 〃 |
150-180-30 | 150 | 180 | 30 | 22 | 1450 | 〃 |
150-180-35 | 150 | 180 | 35 | 30 | 1450 | 〃 |
200-300-10 | 200 | 300 | 10 | 11 | 980 | 〃 |
200-300-15 | 200 | 300 | 15 | 22 | 1450 | 〃 |
200-300-20 | 200 | 300 | 20 | 30 | 1450 | 〃 |
200-300-25 | 200 | 300 | 25 | 37 | 1450 | 〃 |
250-600-10 | 250 | 600 | 10 | 30 | 980 | 〃 |
250-600-12 | 250 | 600 | 12 | 37 | 1450 | 〃 |
250-600-15 | 250 | 600 | 15 | 45 | 1450 | 〃 |
250-600-20 | 250 | 600 | 20 | 55 | 1450 | 〃 |
250-600-25 | 250 | 600 | 25 | 75 | 1450 | 〃 |
300-800-12 | 300 | 800 | 12 | 45 | 980 | 〃 |
300-480-15 | 300 | 480 | 15 | 45 | 1450 | 〃 |
300-600-20 | 300 | 600 | 20 | 55 | 1450 | 〃 |
300-800-20 | 300 | 800 | 20 | 20 | 1450 | 〃 |
