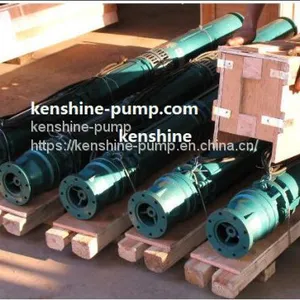

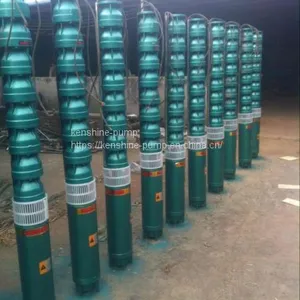

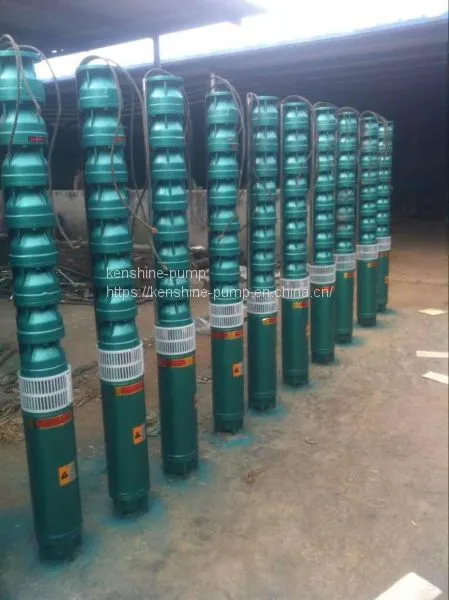

QJ Deep well pump submersible pump
QJ Deep well submersible pump is submerged into the water to extract groundwater from a deep well. The pump can also be used in rivers, reservoirs, canals and other water projects. QJ Deep well submersible pump is mainly used for farmland irrigation and feeding water in plateau mountainous area and water supply and drainage in cities, factories, railways, mines ,construction etc.
Features
Motor and pump are submerged into water to work and safe and reliable.
Steel pipe, rubber pipe, plastic pipe etc can all used as the discharging water pipe.
Easy installation, use and maintenance and small volume
Simple structure, saving raw materials, low cost.
QJ Deep well submersible pump consists of four parts: water pump,submersible motor(including cable),water pipe and control switch.
QJ Deep well submersible pump is a single suction multistage stage vertical centrifugal pump. The submersible motor is a sealed water filled wet type as a vertical three phases cage asynchronous motor with three cables of different specifications. The starting equipment is made of air switch of different capacity grade, self coupling reduced pressure starter. Output water pipe is for steel pipe of different diameter with flange connection. High lift electric pump is controlled by gate valve.
Model |
Head range |
Motor Power |
Rated current |
Outlet diameter |
150QJ10-50/7 |
40-55 |
3 |
7.9 |
2 |
150QJ10-100/14 |
80-110 |
5.5 |
13.7 |
|
150QJ10-150/21 |
120-170 |
7.5 |
18.5 |
|
150QJ20-24/4 |
19-29 |
3 |
7.90 |
|
150QJ20-30/5 |
24-36 |
3 |
7.90 |
|
150QJ20-36/6 |
29-43 |
4 |
10.26 |
|
34-50 |
4 |
10.26 |
||
150QJ20-48/8 |
38-58 |
5.5 |
13.74 |
|
150QJ20-54/9 |
43-65 |
5.5 |
13.74 |
|
150QJ20-60/10 |
48-72 |
7.5 |
18.5 |
|
150QJ20-66/11 |
53-79 |
7.5 |
18.5 |
|
150QJ20-72/12 |
58-76 |
7.5 |
18.5 |
|
150QJ20-78/13 |
62-94 |
7.5 |
18.5 |
|
150QJ20-84/14 |
67-101 |
9.2 |
22.12 |
|
150QJ20-90/15 |
72-108 |
9.2 |
22.12 |
|
150QJ20-96/16 |
77-115 |
9.2 |
22.12 |
|
150QJ20-102/17 |
82-122 |
11 |
26.28 |
|
150QJ20-108/18 |
86-130 |
11 |
26.28 |
|
150QJ20-114/19 |
91-137 |
11 |
26.28 |
|
150QJ20-120/20 |
96-144 |
13 |
30.87 |
|
150QJ20-126/21 |
101-151 |
13 |
30.87 |
|
150QJ20-132/22 |
106-158 |
13 |
30.87 |
|
150QJ20-138/23 |
110-166 |
13 |
30.87 |
|
150QJ20-144/24 |
115-173 |
15 |
35.62 |
|
150QJ20-150/25 |
120-180 |
15 |
35.62 |
|
150QJ20-156/26 |
125-187 |
15 |
35.62 |
|
150QJ20-162/27 |
130-194 |
15 |
35.62 |
|
200QJ20-40/3 |
35-45 |
4 |
10.1 |
|
200QJ20-54/4 |
45-58 |
5.5 |
13.6 |
|
200QJ20-67-5 |
58-72 |
7.5 |
18 |
|
200QJ20-81/6 |
72-86 |
7.5 |
18 |
|
200QJ20-93/7 |
86-98 |
9.2 |
21.7 |
|
200QJ20-108/8 |
98-115 |
11 |
25.8 |
|
200QJ20-121/9 |
115-128 |
13 |
29.8 |
|
200QJ20-133/10 |
120-140 |
15 |
33.9 |
|
200QJ20-148/11 |
140-158 |
15 |
33.9 |
|
200QJ20-175/13 |
153-190 |
18.5 |
41.6 |
|
200QJ20-202/15 |
199-215 |
22 |
48.2 |
|
200QJ20-243/18 |
220-250 |
25 |
54.5 |
|
200QJ20-270/20 |
250-282 |
30 |
65.4 |
|
200QJ20-297/22 |
280-315 |
30 |
65.4 |
2.5 |
200QJ20-338/25 |
315-350 |
37 |
79.7 |
|
200QJ20-350/26 |
335-370 |
37 |
79.7 |
|
200QJ20-363/27 |
350-385 |
37 |
79.7 |
|
200QJ20-400/30 |
375-420 |
45 |
96.9 |
|
200QJ20-450/34 |
425-470 |
45 |
96.9 |
|
200QJ32-26/2 |
23-30 |
4 |
10.1 |
|
200QJ32-39-3 |
35-45 |
5.5 |
13.6 |
|
200QJ32-52/4 |
45-55 |
7.5 |
18 |
|
200QJ32-52/4 |
45-55 |
7.5 |
18 |
|
200QJ32-65/5 |
55-73 |
11 |
25.8 |
|
200QJ32-78/6 |
70-84 |
11 |
25.8 |
|
200QJ32-91/7 |
80-105 |
13 |
29.8 |
|
200QJ32-104/8 |
95-110 |
15 |
33.9 |
|
200QJ32-130/10 |
120-137 |
18.5 |
41.6 |
|
200QJ32-156/12 |
140-162 |
25 |
54.5 |
|
200QJ32-195/15 |
180-215 |
30 |
65.4 |
|
200QJ32-234/18 |
224-247 |
37 |
79.7 |
|
200QJ32-247/19 |
234-255 |
37 |
79.7 |
|
200QJ32-260/20 |
250-275 |
45 |
96.9 |
|
200QJ32-286/22 |
275-300 |
45 |
96.9 |
|
200QJ40-26/2 |
23-30 |
5.5 |
13.6 |
|
200QJ40-39/3 |
35-45 |
7.5 |
18 |
|
200QJ40-52/4 |
45-55 |
9.3 |
21.7 |
|
200QJ40-65/5 |
55-73 |
11 |
25.8 |
|
200QJ40-78/6 |
70-84 |
15 |
33.9 |
|
200QJ40-104-8 |
95-110 |
18.5 |
41.6 |
|
200QJ40-117/9 |
105-120 |
22 |
48.2 |
|
200QJ40-143/11 |
130-145 |
25 |
54.5 |
|
200QJ40-169/13 |
160-175 |
30 |
65.4 |
|
200QJ40-208/16 |
200-215 |
37 |
79.7 |
|
200QJ50-13/1 |
10-16 |
4 |
10.1 |
3 |
200QJ50-26/2 |
23-29 |
5.5 |
13.6 |
|
200QJ50-39/3 |
35-43 |
9.2 |
21.7 |
|
200QJ50-52/4 |
43-58 |
11 |
25.8 |
|
200QJ50-65/5 |
58-75 |
15 |
33.9 |
|
200QJ50-78/6 |
70-90 |
18.5 |
41.6 |
|
200QJ50-91/7 |
80-110 |
22 |
48.2 |
|
200QJ50-104/8 |
90-118 |
25 |
54.5 |
|
200QJ50-117/9 |
100-130 |
30 |
65.4 |
|
200QJ50-130/10 |
115-148 |
30 |
65.4 |
|
200QJ50-156/12 |
142-180 |
37 |
79.7 |
|
200QJ50-182/14 |
165-206 |
45 |
96.9 |
|
200QJ50-195/15 |
185-220 |
45 |
96.9 |
|
200QJ63-12/1 |
8-15 |
4 |
10.1 |
|
200QJ63-24/2 |
19-30 |
7.5 |
18 |
|
200QJ63-36/3 |
28-44 |
11 |
21.7 |
|
200QJ63-48/4 |
38-58 |
15 |
33.9 |
|
200QJ63-60/5 |
47-75 |
18.5 |
41.6 |
|
200QJ63-72/6 |
56-88 |
22 |
48.2 |
|
200QJ63-84/7 |
68-105 |
25 |
54.5 |
|
200QJ63-96/8 |
76-118 |
30 |
65.4 |
|
200QJ63-108/9 |
86-130 |
30 |
65.4 |
|
200QJ63-120/10 |
95-142 |
37 |
79.9 |
|
200QJ63-144/12 |
112-168 |
45 |
96.9 |
|
200QJ80-11/1 |
8-13 |
4 |
10.1 |
4 |
200QJ80-22/2 |
16-25 |
7.5 |
18 |
|
200QJ80-33/3 |
28-42 |
11 |
25.8 |
|
200QJ80-44/4 |
40-50 |
15 |
33.9 |
|
200QJ80-55/5 |
50-60 |
18.5 |
41.6 |
|
200QJ80-66/6 |
60-70 |
22 |
48.2 |
|
200QJ80-77/7 |
70-80 |
30 |
65.4 |
|
200QJ80-99/9 |
95-110 |
37 |
79.7 |
|
200QJ80-121/11 |
110-140 |
45 |
96.9 |
|
250QJ32-138/6 |
124-151 |
22 |
47.9 |
2.5 |
250QJ32-161/7 |
145-176 |
25 |
53.8 |
|
250QJ32-184/8 |
166-202 |
30 |
64.2 |
|
250QJ32-207/9 |
186-227 |
37 |
77.8 |
|
250QJ32-230/10 |
207-252 |
37 |
77.8 |
|
250QJ32-253/11 |
227-277 |
45 |
94.1 |
|
250QJ32-276/12 |
248-302 |
45 |
94.1 |
|
250QJ32-300/13 |
270-328 |
55 |
114.3 |
3 |
250QJ32-322/14 |
290-352 |
55 |
114.3 |
|
250QJ32-345/15 |
310-370 |
63 |
130.9 |
|
250QJ32-368/16 |
332-395 |
63 |
130.9 |
|
250QJ32-391/17 |
352-420 |
63 |
130.9 |
|
250QJ32-414/18 |
373-445 |
75 |
152.3 |
|
250QJ32-437/19 |
394-468 |
75 |
152.3 |
|
250QJ32-460/20 |
414-495 |
75 |
152.3 |
|
250QJ32-483/21 |
435-510 |
90 |
182.8 |
|
250QJ32-506/22 |
455-543 |
90 |
182.8 |
|
250QJ32-529/23 |
476-568 |
90 |
182.8 |
|
250QJ32-552/24 |
498-588 |
90 |
182.8 |
|
250QJ50-20/1 |
18-22 |
5.5 |
13.6 |
|
250QJ50-40/2 |
37-45 |
9.2 |
21.7 |
|
250QJ50-60/3 |
55-65 |
13 |
29.8 |
|
250QJ50-80/4 |
75-85 |
18.5 |
41.6 |
|
250QJ50-100/5 |
93-107 |
22 |
47.9 |
|
250QJ50-120/6 |
113-127 |
25 |
53.8 |
|
250QJ50-140/7 |
120-160 |
37 |
77.8 |
|
250QJ50-160/8 |
151/170 |
37 |
77.8 |
|
250QJ50-180/9 |
170-190 |
45 |
94.1 |
|
250QJ50-200/10 |
190-210 |
45 |
94.1 |
|
250QJ50-220/11 |
208-230 |
55 |
114.3 |
|
250QJ50-240/12 |
220-260 |
55 |
114.3 |
|
250QJ50-260/13 |
245-271 |
63 |
130.9 |
|
250QJ50-280/14 |
265-291 |
63 |
130.9 |
|
250QJ50-280/15 |
288-312 |
63 |
152.3 |
|
250QJ50-320/16 |
308-332 |
75 |
152.3 |
|
250QJ50-340/17 |
320-360 |
75 |
182.8 |
|
250QJ50-360/18 |
355-380 |
90 |
182.8 |
|
250QJ80-20/1 |
17-22 |
7.5 |
18 |
4 |
250QJ80-40/2 |
35/44 |
15 |
33.9 |
|
250QJ80-60/3 |
52-66 |
22 |
47.9 |
|
250QJ80-80/4 |
70-80 |
30 |
64.2 |
|
250QJ80-100/5 |
87-110 |
37 |
77.8 |
|
250QJ80-120/6 |
105-131 |
45 |
94.1 |
|
250QJ80-140/7 |
122-153 |
55 |
114.3 |
|
250QJ80-160/8 |
150/170 |
63 |
130.9 |
|
250QJ80-180/9 |
170-197 |
63 |
130.9 |
|
250QJ80-200/10 |
184-219 |
75 |
152.3 |
|
250QJ80-220/11 |
210-230 |
90 |
182.8 |
|
250QJ80-240/12 |
230-253 |
90 |
182.8 |
|
250QJ100-18/1 |
15-22 |
7.5 |
18 |
|
250QJ100-36/2 |
30-44 |
15 |
33.9 |
|
250QJ100-54/3 |
44-60 |
25 |
53.8 |
|
250QJ100-72/4 |
66-78 |
30 |
64.2 |
|
250QJ100-108/6 |
110-116 |
45 |
94.1 |
|
250QJ100-126/7 |
118-136 |
55 |
114.3 |
|
250QJ100-144/8 |
136-152 |
63 |
130.9 |
|
250QJ100-162/9 |
156-170 |
75 |
152.3 |
|
250QJ100-198/11 |
188-208 |
90 |
182.8 |
|
250QJ125-16/1 |
14-19 |
9.2 |
21.7 |
5 |
