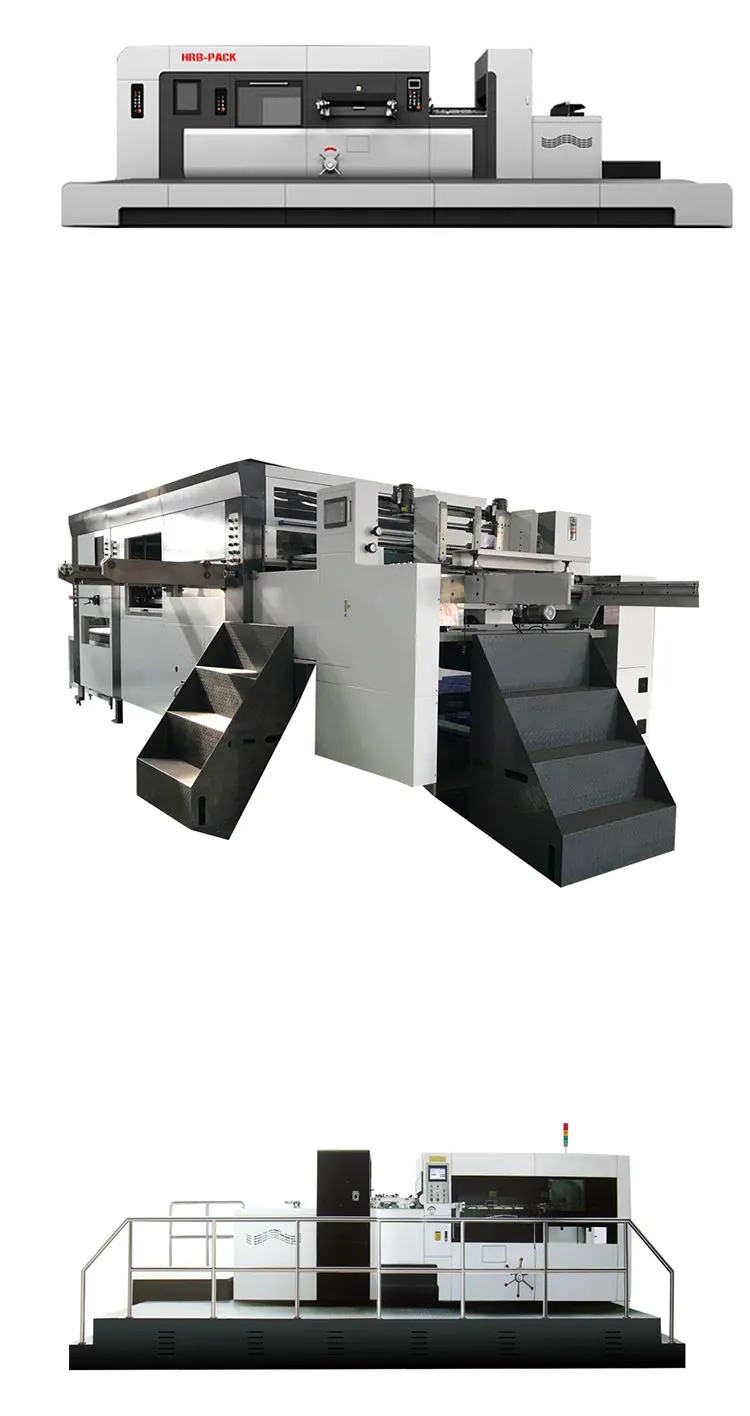

The MY-1300 Automatic Die Cutting and Creasing Machine is the main equipment for making high-grade color box, plug and different shapes of ink cartons.
| Item | Parameters | Parameters |
| Model | MY-1300 | MY-1500 |
| Die cutting type |
Pressed flat die cutting (Lower side is movable while upper side is unmovable) |
Pressed flat die cutting (Lower side is movable while upper side is unmovable) |
| Max paper transmitting size | 1320*940mm | 1510*1120mm |
| Min paper transmitting size | 400*500mm | 400*550mm |
| Max die cutting size | 1300*920mm | 1490*1100mm |
| Min gripper size | 8mm | 8mm |
| Max die cutting pressure | 320N/cm² | 320N/cm² |
| Die cutting precision | ±0.1mm | ±0.1mm |
| Max die cutting speed | 6500 sheets/h | 6500 sheets/h |
| Total power | 17.5kw | 20.5kw |
| Total weight | 17.5T | 18.5T |
| Overall size |
6200*2200*2250mm (Not including the pedal) |
6200*2400*2250mm (Not including the pedal) |

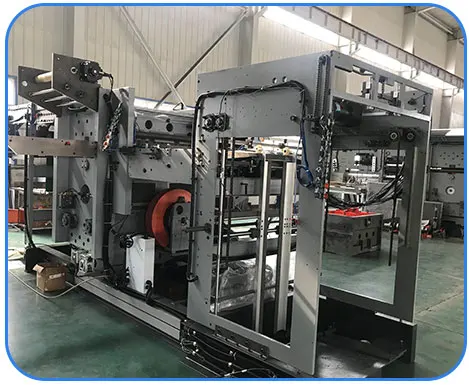

The machine adopts Anchuan servo system, Gogol four axes motion controller, non-pressure feeding system, high strength gripper teeth row, whole swing front guide, automatic pushing guide, high precision interval structure, pneumatic locking plate.
Pneumatic clutch, overload protector, automatic paper collecting, makes our machine has a short paper feeding distance, positioning correctly, paper collecting in order, can also do non-gripper die cutting.
Computer control makes the whole machine running automatically, man-machine interface display the working condition and trouble dealing method. Key components, control systems and many sensors and protection devices to ensure machine working and workers safety.
Rubber roller mechanical spiral commutation 40mm move about horizontal structure.Die-cutter phase, computer and electric digital control. Horizontal phase, computer and electric digital control, range ±5mm.
Rubber roller and die roller gap use computer and electric digital control. Adjust the transfer roller use computer and electric digital control. The rubber roller compensated by motor-driven,control the speed of thr rubber roller, range ±3mm.

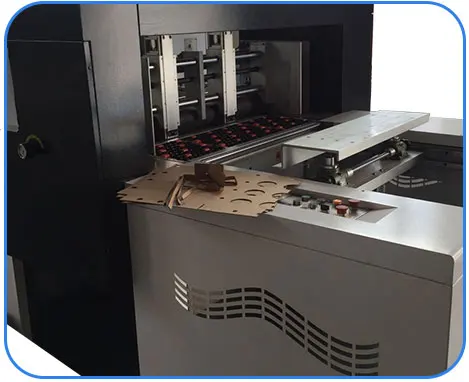

Paper collecting part: Collecting paper automatically and quantitatively. Back aligning paper, side aligning paper to ensure the automatic paper feeding orderly, the structure of paper collecting machine is simple
