Automatic Flat Bed Creasing And Die Cutting Machine
US$ 110000 - 130000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HRB PACK
Place of Origin:
China
Model Number:
HRB-1060T
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN
Delivery Detail:
2 days
Related Products
-
Semi-auto Flat Bed Creasing And Die Cutting MachineUS$ 65000 - 75000MOQ: 1 Set -
Automatic Flat Bed Creasing Die-Cutting Machine In DongguangUS$ 110000 - 130000MOQ: 1 Set
-
Corrugated Board Flat Bed Die Cutting MachineUS$ 130000 - 140000MOQ: 1 Set
-
Wholesale China Goods Semi-Auto Flat Bed Paper Die Cutting Machine / Creasing And Die Cutting MachineUS$ 65000 - 75000MOQ: 1 Set
-
CE Standard ML Series Manual Die Cutting And Creasing Machine For Making Carton BoxUS$ 9000 - 10000MOQ: 1 Set
Brand Name
HRB PACK
Place of Origin
China
Model Number
HRB-1060T
Certification
CE ISO
Type
Die-cutting Machine
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 Year
Weight
16T
Dimension(L*W*H)
7690mm*3800mm*2330m
Condition
New
Voltage
HRB-PACK
Power(W)
11KW
Computerized
Yes
Product Parameter
| Model | HRB-1060T | HRB-1200T |
| Max. paper size | 1060mmx760mm | 1200mmx780mm |
| Min. paper size | 400mmx370mm | 400mmx370mm |
| Max. die cutting size | 1050mmx750mm | 1190mmx710mm |
| Paper thickness | paperboard:0.12-2.0mm corrugated paper:≤4mm | paperboard:0.12-2.0mm corrugated paper:≤4mm |
| paper feeding height | 1500mm | 1500mm |
| Paper delivering height | 1220mm | 1220mm |
| Die cutting precise | ≤±0.10mm | ≤±0.15mm |
| Min. gripper | Min. Gripper:7mm Max. Gripper:12mm | Min. Gripper:7mm Max. Gripper:12mm |
| Max. speed | 7000S/H | 7000S/H |
| Pressure | 300T | 300T |
| Power | 17KW | 15KW |
| Main motor power | 11KW | 11KW |
| Dimension (length*wide*height) | 7690mm*3800mm*2330mm | 7690mm*3900mm*2330mm |
| Weight | 16T | 17T |
Product show
German technology precise feeder,cardboard and corrugated paper. Four suction and sending can adjust angle and height according.Advanced push and pull side gauge, adopts end face cam device, little wear, high stability, accurate paper position, push and pull functions are easy to switch.Feeding table fine-tuning device, can adjust at any time according to the paper.
Unique paper receiving device, suitable for different deformation paper.The sampling device can check the quality of the working parts at any time, reduce the waste.Attached 1 set of gripper, 1 pcs of steel plate, 1 set of plate frame, 1 set of hand wrench.

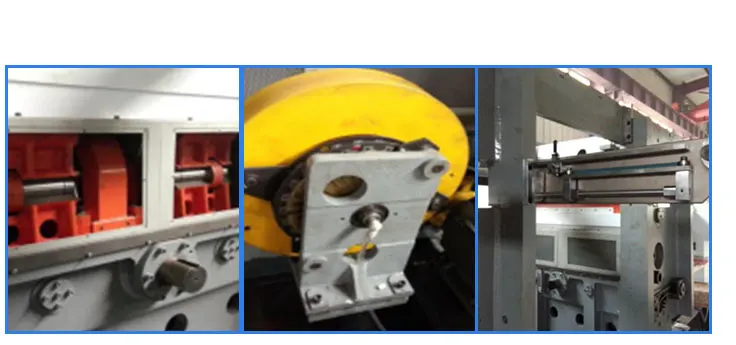

product details
German SEW manufacturing super abrasion worm, worm gear.Accurate pressure regulating system, easy to adjust under the condition of machine running.Four elbow linkage design(Rocker shaft Φ70*240), large pressure, little wear.
Finished product dis
