Home > Packaging & Printing > Packing Machinery > Laminating Machine > HRB-1450F AUTOMATIC 5 PLY FLUTE LAMINATOR MACHINE

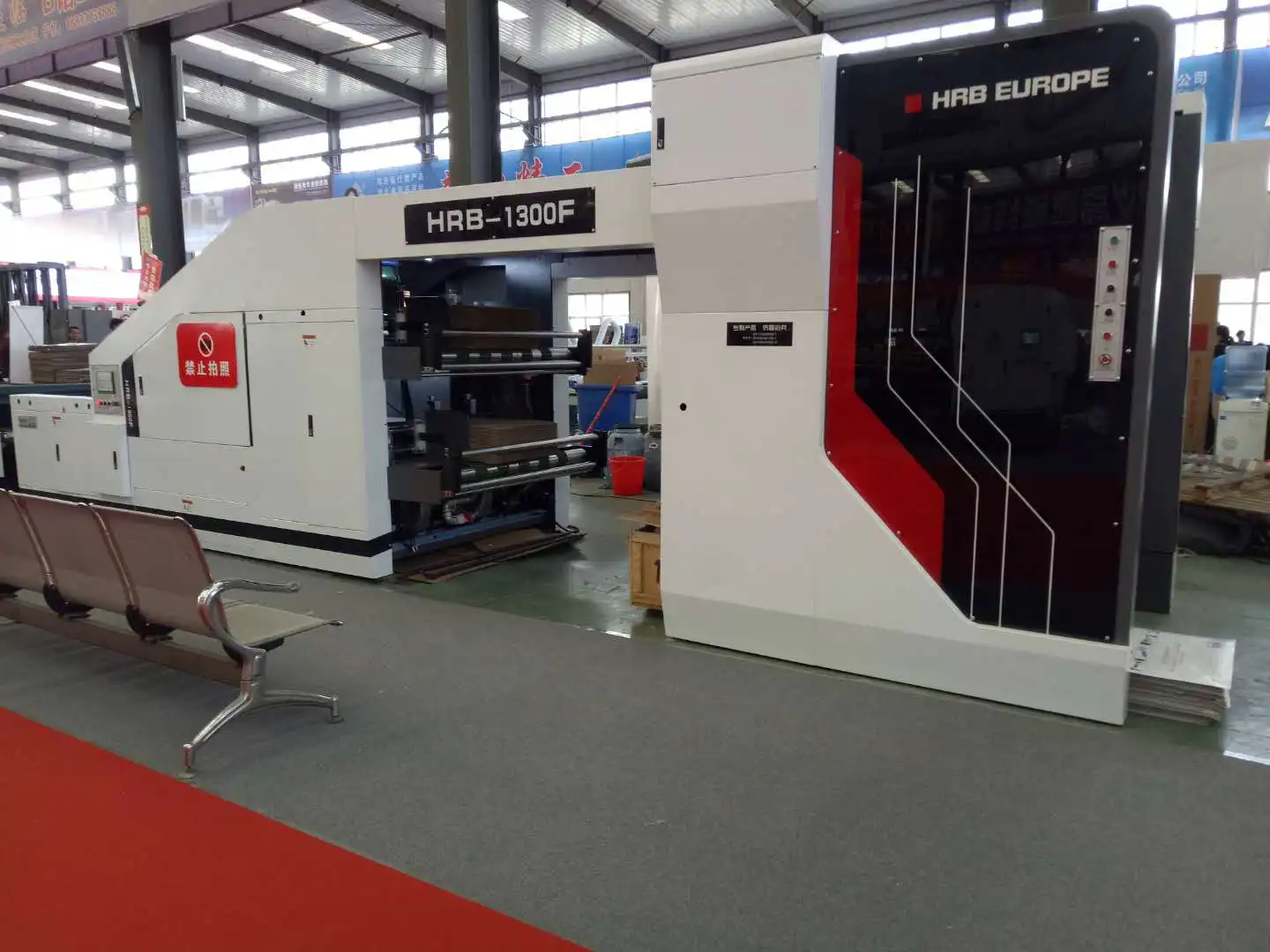

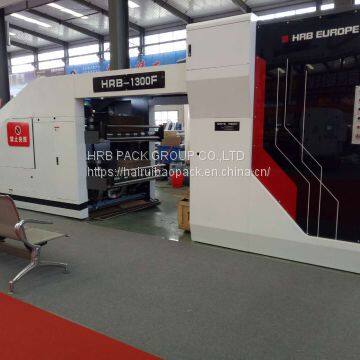

HRB-1450F AUTOMATIC 5 PLY FLUTE LAMINATOR MACHINE
US$ 54000 - 56000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HRB-PACK
Place of Origin:
China
Model Number:
HRB-1450F
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN
Delivery Detail:
60 days
Related Products
-
HRB-PACK 1600A Automatic Flute LaminatorUS$ 20000 - 30000MOQ: 1 Set -
HRB-PACK Fully Automatic Flute Laminating Machine Flute Laminator MachineUS$ 25750 - 31240MOQ: 1 Set
-
HRB-PACK 1300A Laminating Box Making Machine for Corrugated CardboardNegotiableMOQ: 1 Set
-
HRB-PACK Fully Automatic Corrugated Cardboard B Flute Paper Laminating MachineUS$ 25750 - 31240MOQ: 1 Set
-
HRB-1300H/1600H Semi-Auto Flute Laminator for Carton Box Machine HRB-PACK in ChinaUS$ 10650 - 10700MOQ: 1 Set
Brand Name
HRB-PACK
Place of Origin
China
Model Number
HRB-1450F
Certification
CE,ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
Weight
5500kg
Dimension(L*W*H)
15*2.4*2.5m
Voltage
380V
Power
22KW
Condition
New
Automatic Grade
Automatic
Driven Type
Electric
Packaging Material
Plastic
Packaging Type
Film

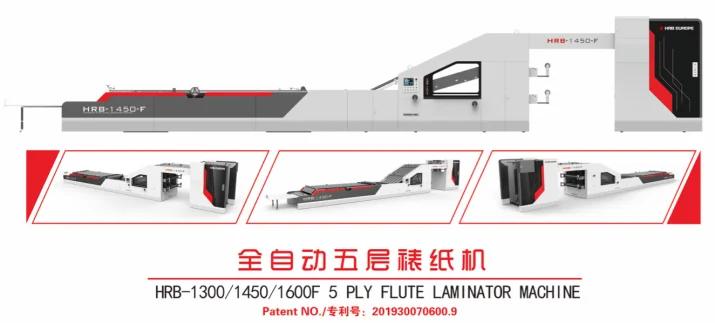

HRB-1450F AUTOMATIC 5 PLY FLUTE LAMINATOR MACHINE
Product Description
HRB-F series fully automatic multilayer flute laminator is consists of automatic face paper lifting section, face paper conveying section, double bottom paper synchronized or asynchronized conveying section, double bottom paper positioning section, cyclic gluing section, pressing section, delivering section and automatic collecting section.
Specification Table
| Model | HRB-1300F | HRB-1450F | HRB-1600F |
| Max.Paper size (W*L) | 1300*1300mm | 1450*1300mm | 1600*1300mm |
| Min.paper size (W*L) | 600*600mm | ||
| face paper thickness | 180-600g/m²(standard paper board) | ||
| Bottom paper | A B C E F Less than or equal to10mm | ||
| Precision | ±1.5mm | ||
| Speed | 4000-6000pcs/h | ||
| Height of face paper pile | 1600mm | ||
| Face paper table capacity | 1500KG | ||
| Height of bottom paper pile | 400mm | ||
| Total Power | 20KW | 22KW | |
| Dimension (L*W*H) | 15*2.2*2.5m | 15*2.4*2.5m | 15*2.5*2.5m |
| Machine Weight | 5000kg | 5500kg | 6000kg |
Detailed Images

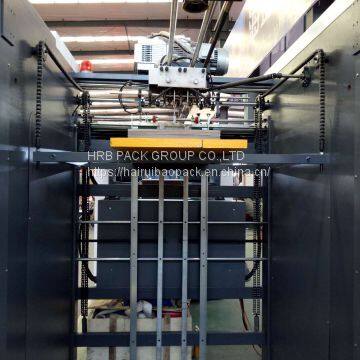

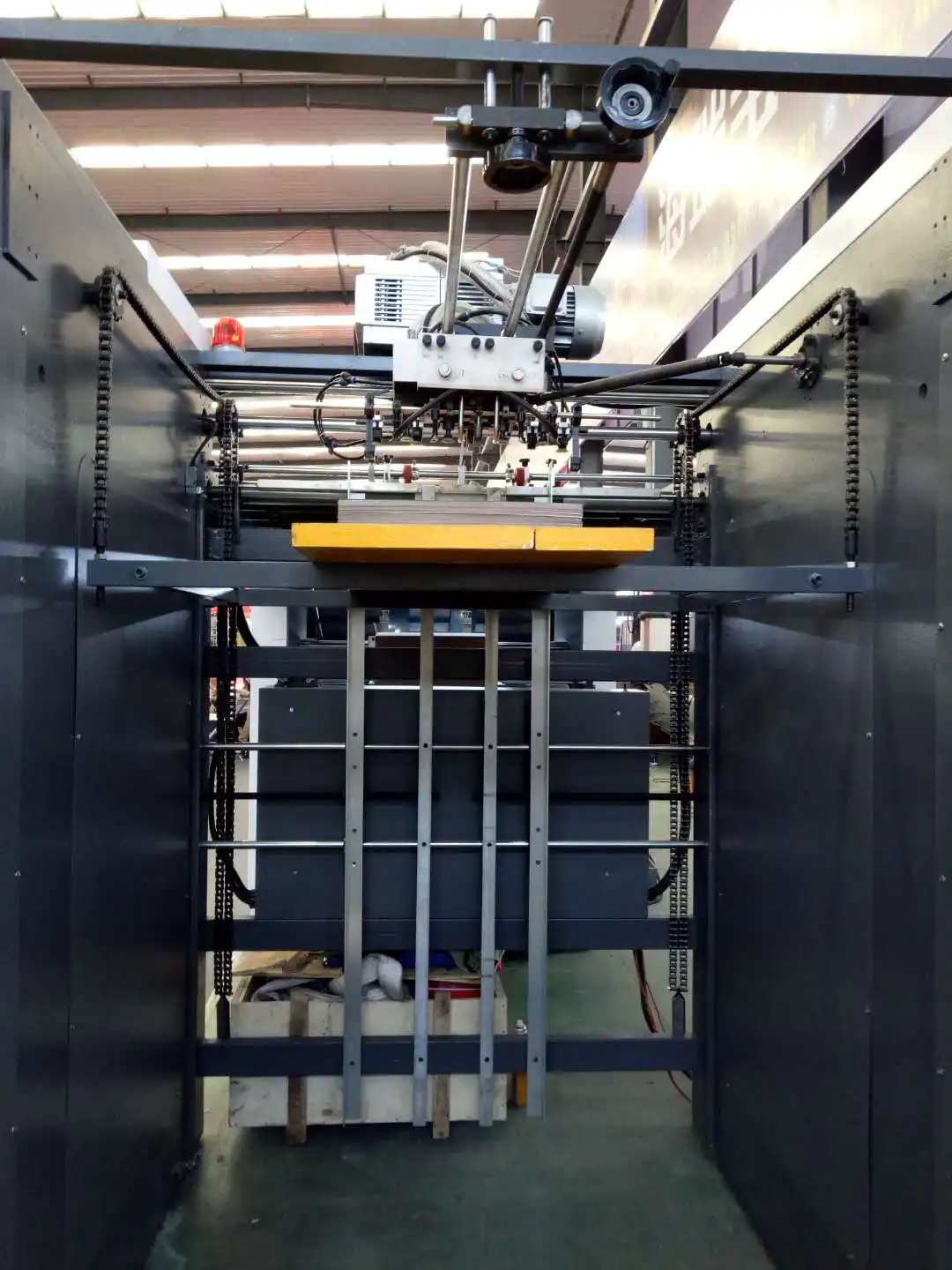

1.Automatic face paper lifting section
2.Face paper conveying section

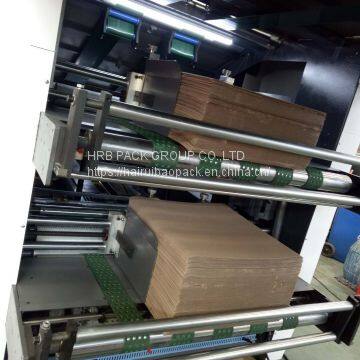

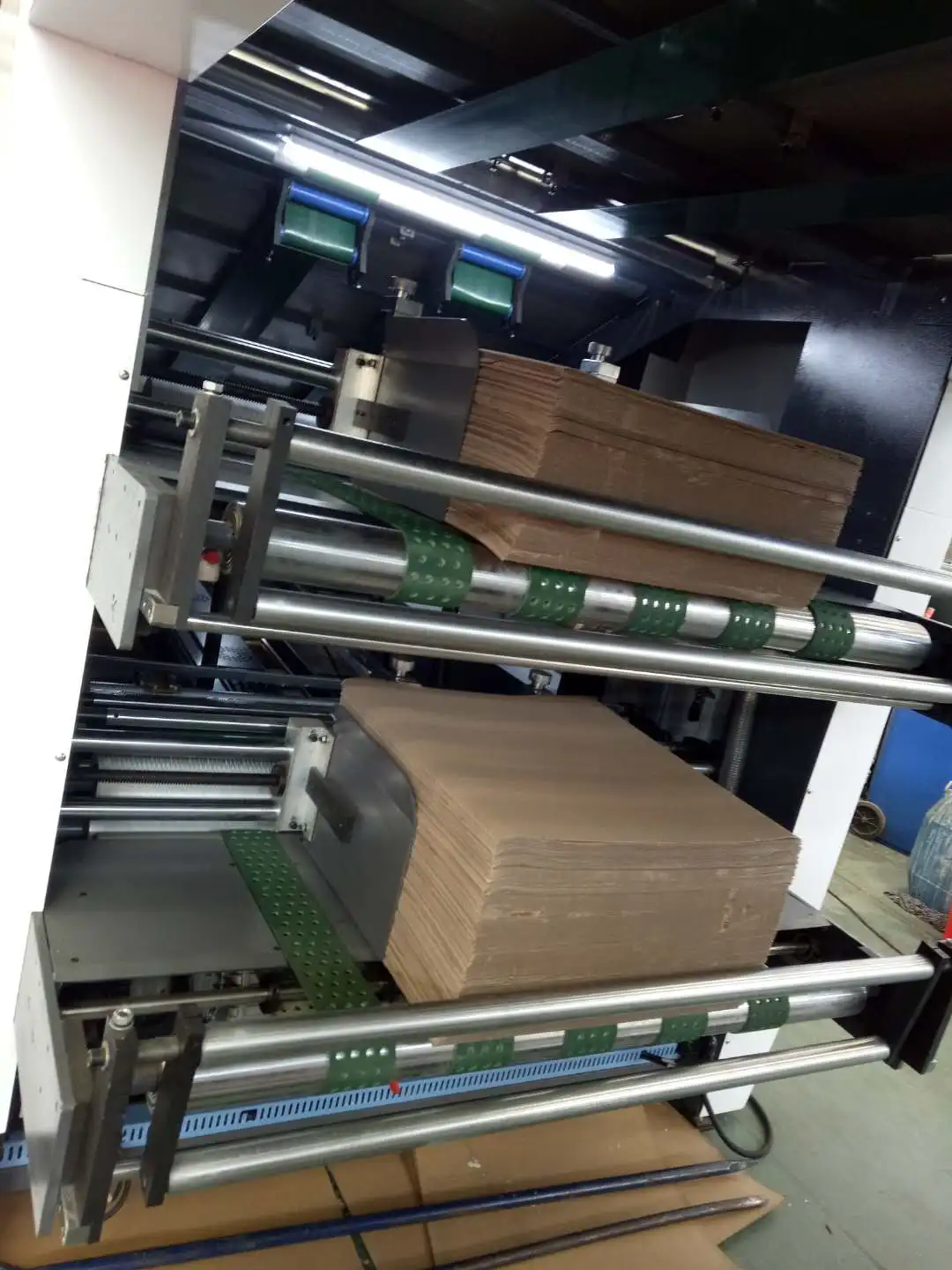

3.Double bottom paper synchronized or asynchronized conveying section

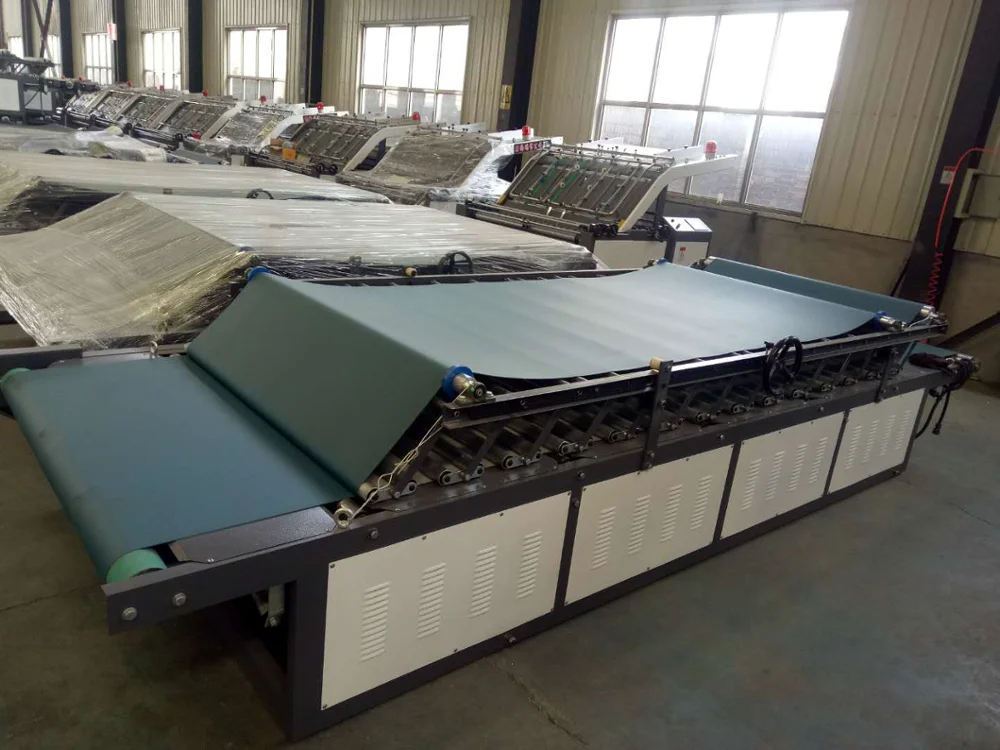

4.Pressing section
Product characterist

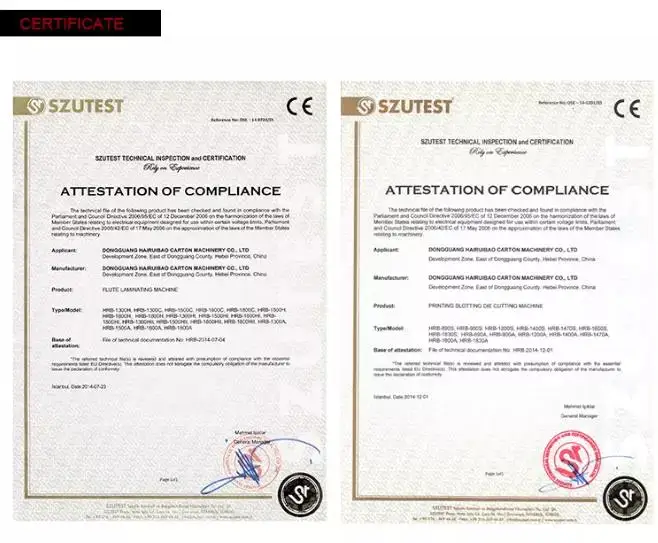

Certifications

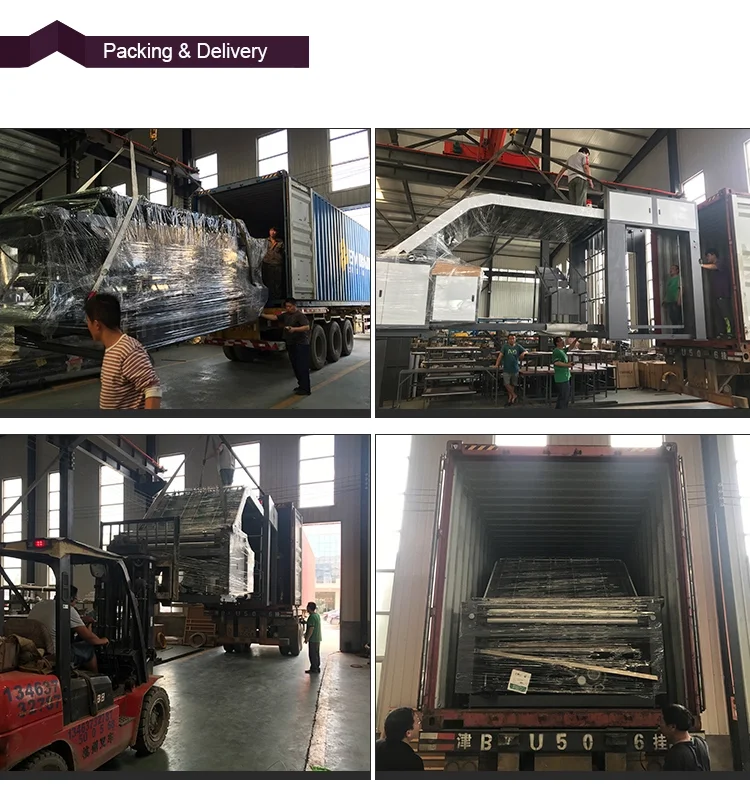

Packaging & Shipping
Company Information
FAQ
