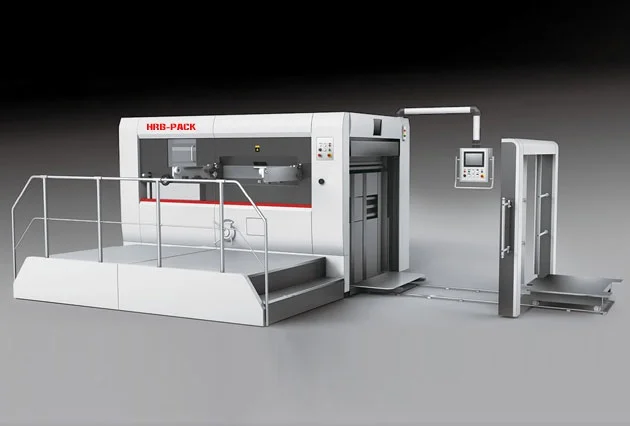

Help CenterSemi-Automatic Corrugated Cardboard Flat Die Cutting Machine
Related Products
-
Automatic Flat Bed Creasing And Die Cutting MachineUS$ 110000 - 130000MOQ: 1 Set -
Semi-auto Flat Bed Creasing And Die Cutting MachineUS$ 65000 - 75000MOQ: 1 Set
-
Automatic Flat Bed Creasing Die-Cutting Machine In DongguangUS$ 110000 - 130000MOQ: 1 Set
-
Corrugated Board Flat Bed Die Cutting MachineUS$ 130000 - 140000MOQ: 1 Set
-
Wholesale China Goods Semi-Auto Flat Bed Paper Die Cutting Machine / Creasing And Die Cutting MachineUS$ 65000 - 75000MOQ: 1 Set
Technical Parameter:
Item |
Parameters |
|
Model |
BMY-1500 |
|
Die cutting way |
Platen press |
|
Max paper transmitting size |
1510*1120mm |
|
Min paper transmitting size |
450*550mm |
|
Max die cutting size |
1490*1100mm |
|
Min gripper size |
8mm |
|
Max die cutting pressure |
320N/cm² |
|
Paper processed |
Ivory board |
200-2000g/ m² |
Corrugated board |
8mm(max thickness) |
|
Die cutting precision |
±0.1mm |
|
Max die cutting speed |
4500 sheets/h |
|
Max feeding pile height |
1400mm(above the level) |
|
Min feeding pile height |
1250mm(above the level) |
|
Total power |
13.5kw |
|
Total weight |
17.5T |
|
Overall size |
4200*2300*2250mm(Not Including Pedal) |
|
Feeding and Collecting Part:
1. Whole machine is risen making the maximum front pile height up to 1400mm and the back pile height up to 1250mm
2. At the middle of head install the monitor ,worker can easily see the back
3. Pre-paper pile design and special pneumatic bench can save much time
4. The non-stop sampling system can check the board accurate without stop the machine
Diecutting part and Delivery system:
1. Diecutting chase fixed accurately by pneumatic lock system
2. Diecutting plate is putted in and out by air floating device
3. Electric clutch system of main chain can assure the chain steady when it is stopped at high speed
4. Main chain and assist chain is lubricated periodically controlled by PLC
5. Protection window of diecutting can hold the main body clean
6. Lightweight and durable aluminum alloy 9-piece gripper bars with chain of Renold UK ensure accurate
Electric Part:
PLC adopts electronic control system.There are various safe guarding devices that when accident occurs,it will give an alarm by sound and light and shut down automatically to protect sfety of man and machine.

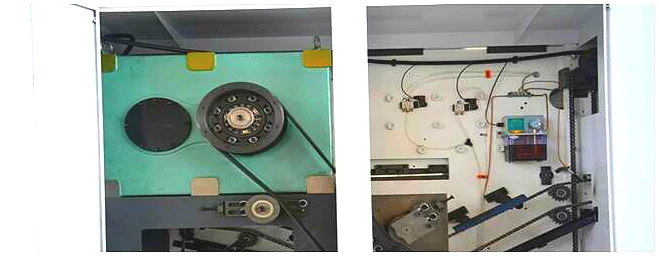

Taiwan Intermittence and Renold Chain:
1.Adopt automatic centralized lubricating system and setting main chain lubricating system by HMI
2.Patented design shock absorption system can prolong the life of main body and increase the pressure
3.The intermittent gearbox made in Taiwan can assure the accurate registration and decrease the gripper attack

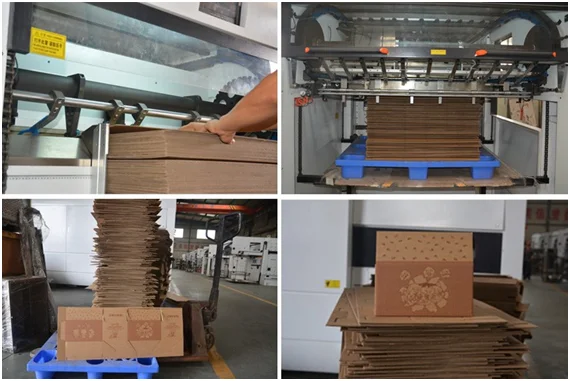

product processing:

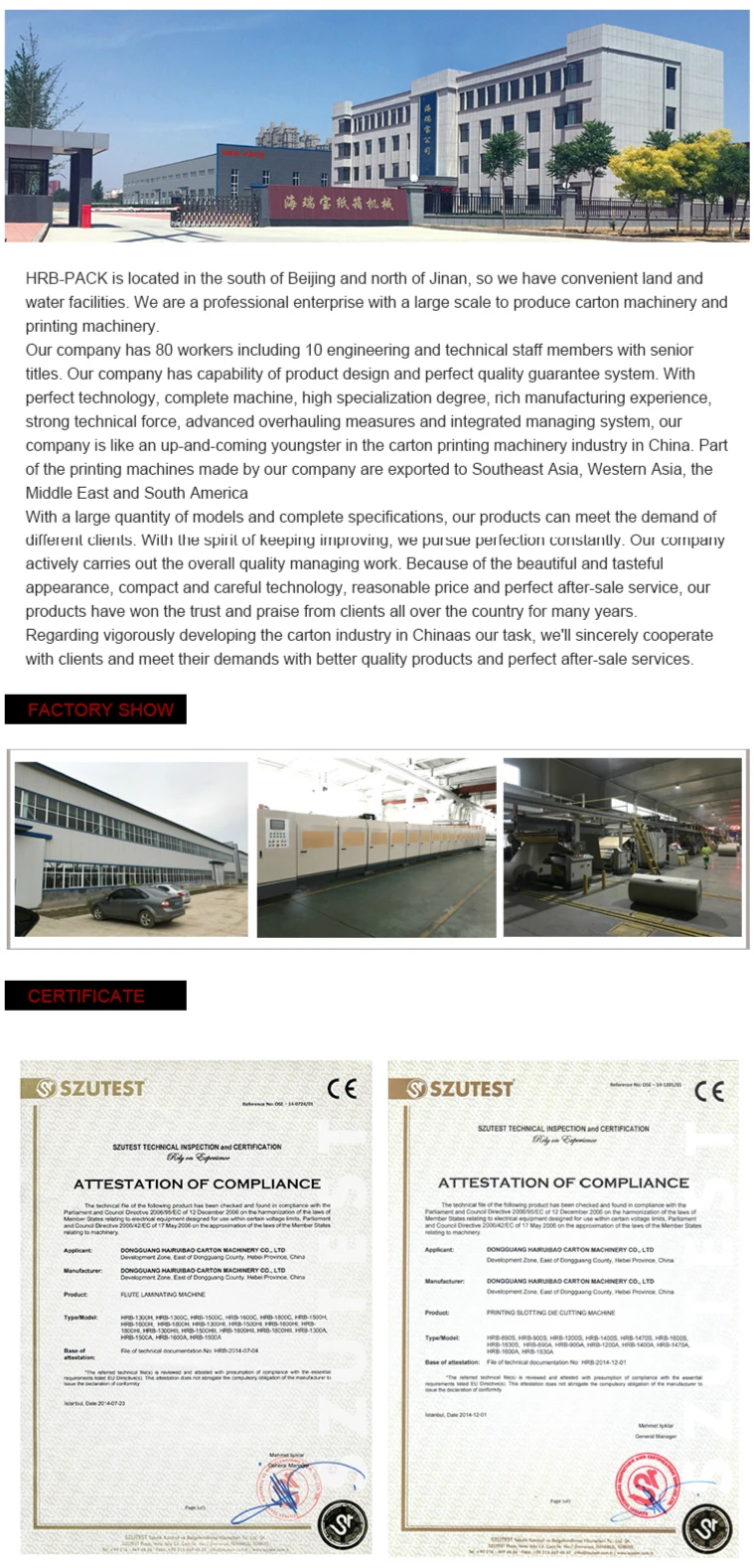

I: Are you a factory or trading company? Do you have your own brand?
We are a manufacture which is specialized in the production of various kind of carton equipments.(with export license); HRB PACK Is our Brand, We can do OEM For Foreign manufacturer.
II: Where is your factory located? How can I visit here?
Our factory is located in Dongguang City Hebei Province China. We can pick you up From Jinan airport or Beijing airport.
III: What is your product?
3ply, 5ply, 7ply automatic corrugated cardboard production line, high speed flexo printing slotting die
cutting machine, flexo printer slotter with folder gluer in line, auto folder and gluer machine, auto
flute laminator machine, single facer rotary die cutter and other corrugated
cardboard production equipments.
IV: How does your factory do Control quality controlling?
“the quality first, integrity-based” as our sole purpose, providing the products with excellent quality, professional technology. Pay great attention to control quality from the beginning to the end.
Certificate: ISO & CE
V: How is the evaluation of the products?
Agent & End users located in Euro, Hongkong, Africa, Thailand, Russia, Pakistan, India, and so on.
