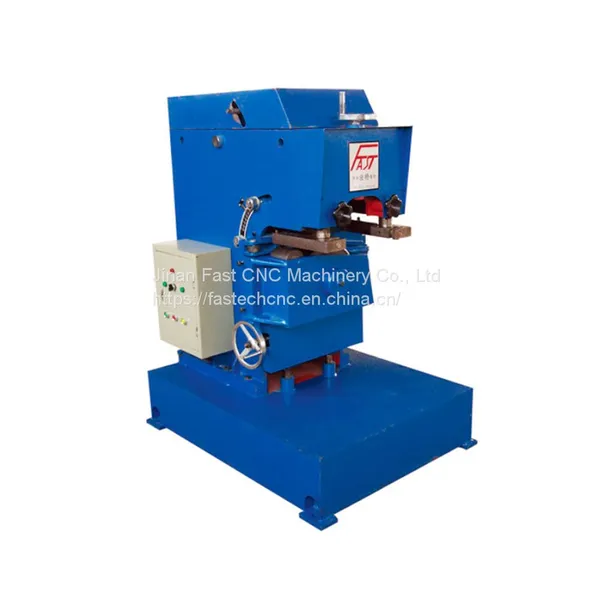

Beveling/Chamfering Machine Model JD20 For Q235 Steel, Corrosion Resistant Plate And 16Mn Steel
APPLICATION
This machine is used to meet the beveling requirements of Q235 steel, corrosion resistant plate and 16Mn steel etc
FEATURES
The machine utilizes the inclined wedge type rolling shear principle, which realizes plate going forward by hob rotating so as to cut the chamfer of plate to meet the beveling requirements of Q235 steel, Stainless steel and 16Mn steel, with accurate beveling size, clean surface.
Compared to flame cutting, beveling machine has well advantages such as low energy consumption, quick beveling speed (more than times of flame cutting), unnecessary to clean bur. No need to clamp the workpiece while beveling, easy using & high efficiency. The machine is the best ideal beveling machine before plate is welded, and length and width of equipped carriage can not be limited.
TECHNICAL DATA
| STRENGTH OF TENSION(N/mm2) | ＜400 | 400-500 | ＞500-600 |
| Steel Plates | Q235 steel | 16Mn steel | Stainless steel plate |
| Max. Width Of Sloped Edge(mm) | 20 | 16 | 12 |
| Feeding Speed(m/Min) | ～2.9 | ～3.1 | ～3.4 |
| Max. Thickness Of Plate(mm) | 45 | ||
| Scope Of Beveling Angle(°) | 25～55 | ||
| Min. Straight Edge(mm) | 2 | ||
| Power Of Motor(kW) | 4 | ||
| Rotation Speed Of Spindle(r/Min) | 7.7 | ||
| Diameter Of Hob(mm) | 200 | ||
| Outline Dimension (mm) | 1240*940*1500 | ||
★ All of these models can be customized according to customer requirements.
