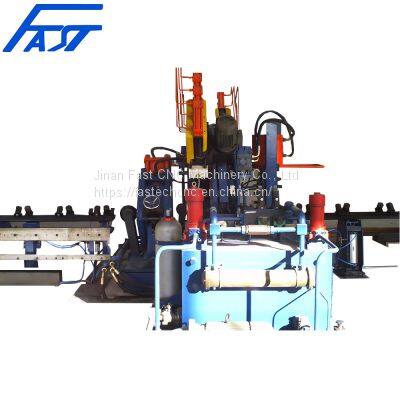

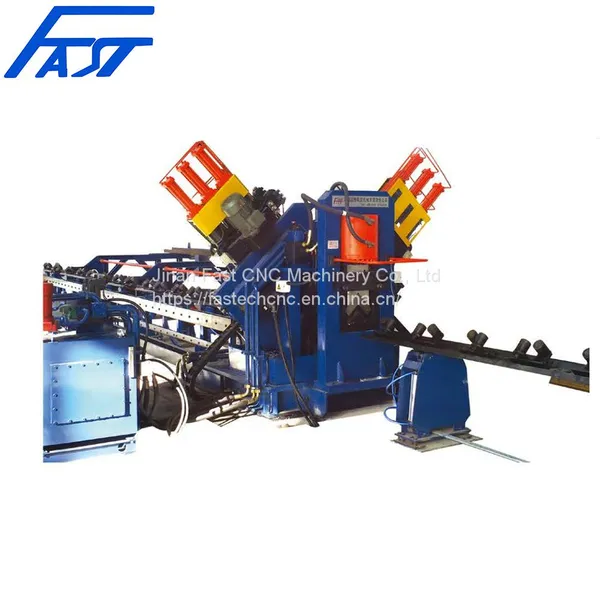

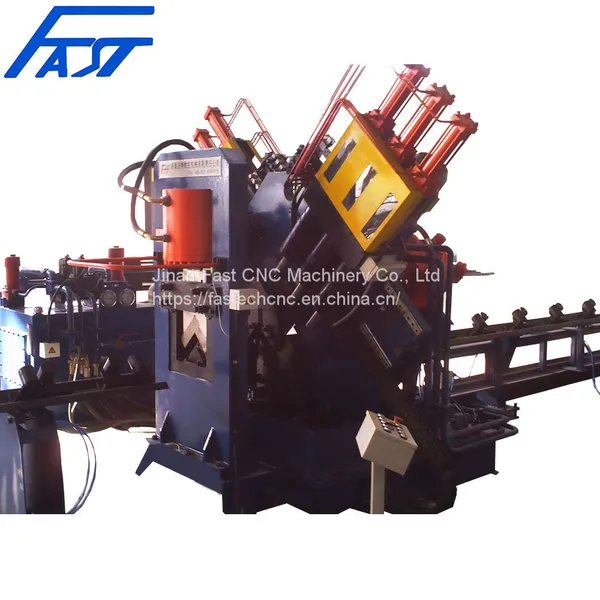

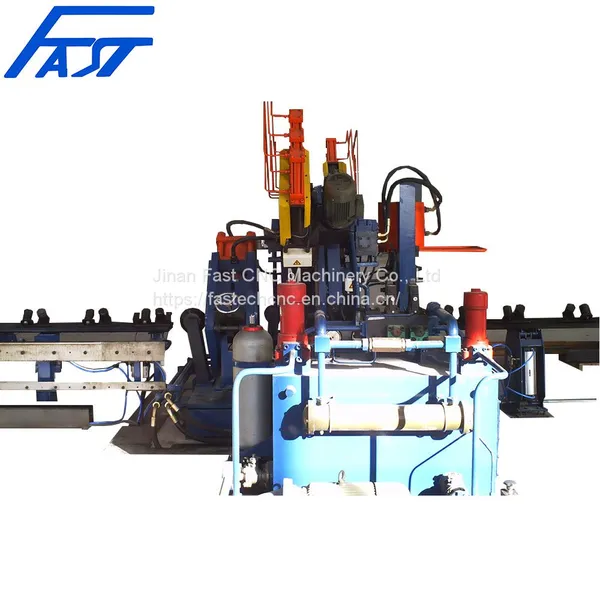

Jinan FAST CNC Angle Drilling Line With Marking 2532 For Power Transmission Tower

CNC Angle Drilling Line With Marking 2532 For Power Transmission Tower

APPLICATION

This machine is used for drilling and marking large-size iron towers and high-strength angle steel in transmission lines. All the holes on the angle steel can be drilled in one pass, and the hole quality and position accuracy are high. It is a special machine for fully automated production.

FEATURES

• Integrated machine with mechanical, electrical and hydraulic elements;

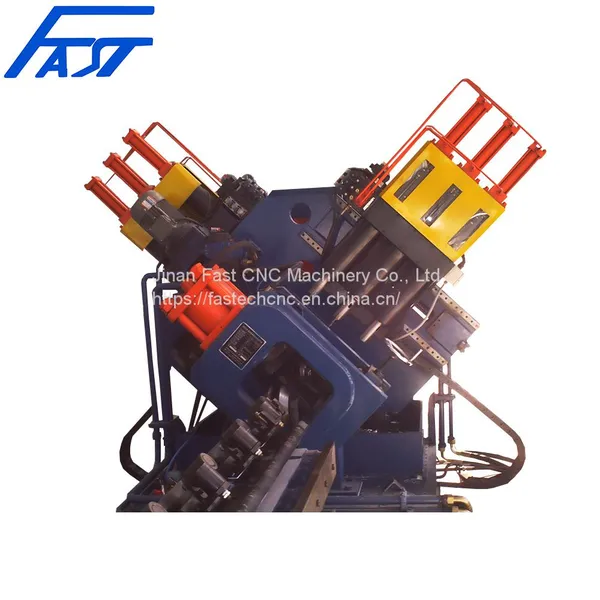

• There is a drilling power head on each of the two wings of the angle steel. Each power head has a tool magazine. The tool magazine is equipped with 4 tools. The tool magazine is optional. All holes on the two wings of the angle steel can be processed in one pass;

• The drilling spindle adopts high-precision BT40 spindle;

• The drilling spindle can be used to clamp twist drills or hard alloy drills, which has a wide range of applications;

• The quasi-distance can be set arbitrarily, and the number of punching rows is not limited;

• The drilling spindle adopts BT40 precision spindle;

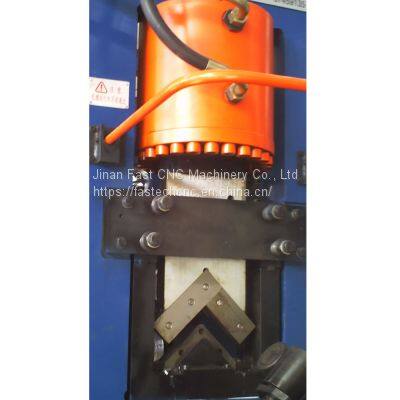

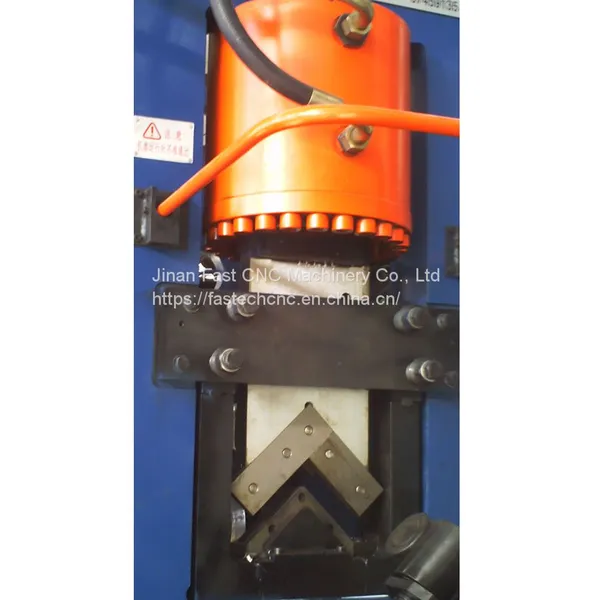

• The marking unit adopts a closed bed structure, which has good rigidity. Four groups of selected programming on the upper marking box. The marking distance can be set at will;

• The control system is composed of a host computer, servo motor, PLC, external detection sensor, etc.;

• The CNC feeding trolley is driven by a servo motor with high positioning accuracy;

• There are various input methods, such as keyboard and mouse input, USB interface input, network interface input.The data generated directly by the 3D or 2D software.

• The main electrical control components and hydraulic and pneumatic components are imported accessories;

• Providing G-code software program that can directly convert CAD graphics into executable machine ;

• Graph display of processed parts;

• With fault self-diagnosis function.
