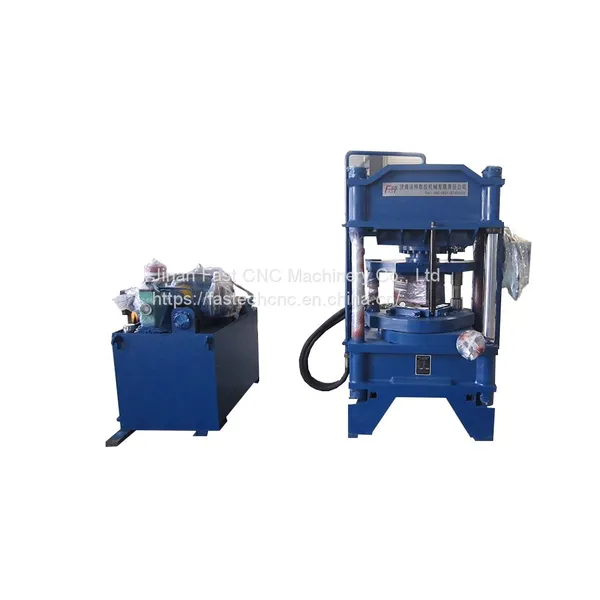

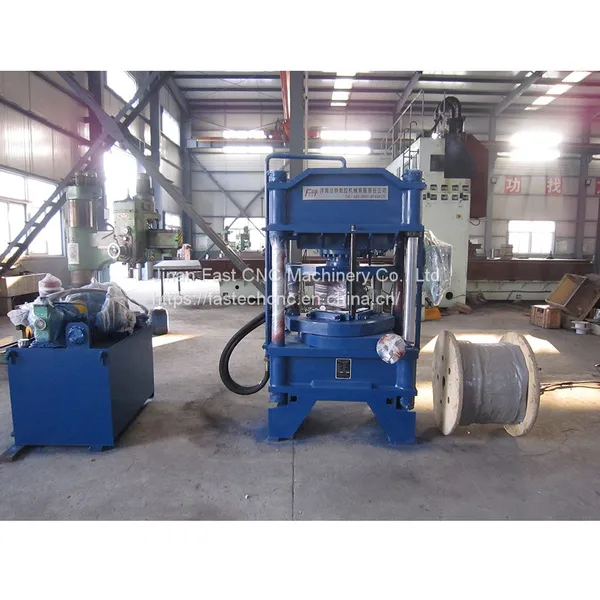

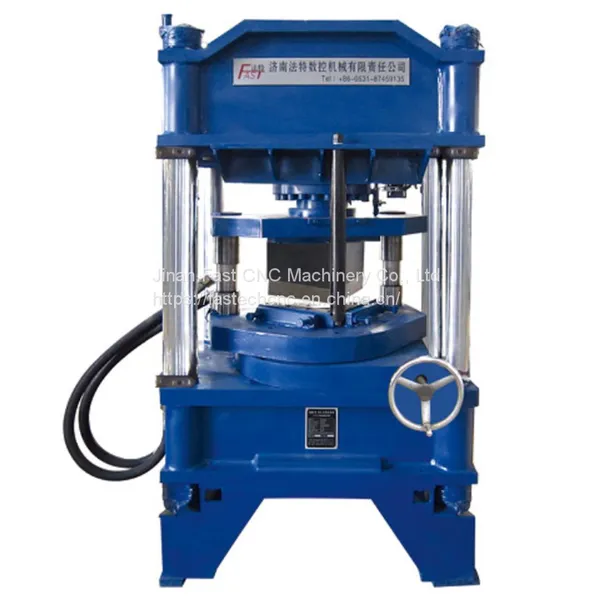

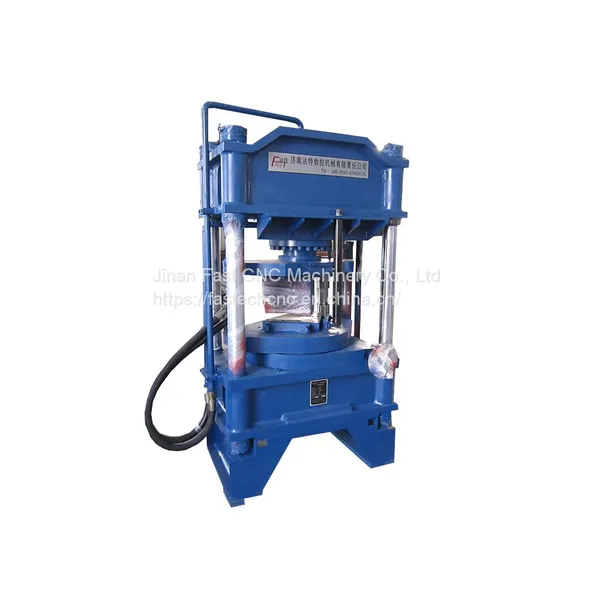

Hydraulic Notching Machine For Angles,Hydraulic Angles Notching Machine,Hydraulic Angles Cutting Machine Manual Rotary QJ200
APPLICATION
The machine is used for cutting corner of angles. By changing the mold, this machine can also do marking function. This machine is used in steel tower industry.
ADVANTAGES
● The machine is with opening C-type structure.
● Its cutting mold is rectangular double-blade mode.
● Multi-directions rotational corner cutting mold can cut out different angle of angles.
● Only need to adjust rotation die-carrier, no need to rotate the angles. so corner cutting with little error only need
● Small working area with little error.
● By changing the mold, this machine can also do marking function.
TECHNICAL DATA
| Model | QJ140 | QJ160 | QJ200 (Four Column) |
| Nominal Force (kN) | 1000 | 1400 | 1600 |
| Stoke of Oil Cylinder (mm) | 50 | 50 | 80 |
| Times of Stoke (Time/min) | 25 | 25 | 20 |
| Motor Power (kW) | 15 | 15 | 15/22 |
| Scope of Angles (mm) | 40*40*3~140*140*12 | 40*40*3~160*160*16 | 40*40*3~200*200*16 |
| Rotary Angles of Corner Cutting Mold | ±360° Electrical OR Manual | ||
| Overall Dimension of Cutting mold(mm) | 650*650*500 | 700*700*500 | 830*700*600 |
| Overall Dimension of Machine (mm) | 1270*1020*1800 | 1300*1020*1880 | 1370*1120*1900 |
★ All of these models can be customized according to customer requirements.
