Jinan FAST CNC Horizontal Drilling Machine Model HZ900 For Drilling On Ring Workpieces.
US$ 10000 - 20000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
FAST
Place of Origin:
China
Model Number:
HZ900
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
40 days
Related Products
-
Pcmc Plate and Cabinet Machining Center, Plate and Cabinet/Box Machining CenterUS$ 40000 - 50000MOQ: 1 Set -
Good Quality CNC Double-Worktable Drilling Plane Machine For Plates Model PZ1610/PZ2016 For SaleUS$ 25000 - 28000MOQ: 1 Set
-
High Performance Paper Machinery Drilling And Milling T Slot Special Equipment PZ4016US$ 40000 - 50000MOQ: 1 Set
-
Jinan FAST Three Coordinates Deep Hole CNC Drilling Machine With Good Accuracy Model PZ2020US$ 35000 - 38000MOQ: 1 Set
-
High Quality PZ3030 Gantry Movable Dual Spindle CNC Plate Drilling Machine In Petrochemical, Boiler, Wind Power IndustyUS$ 50000 - 56000MOQ: 1 Set
Brand Name
FAST
Place of Origin
China
Model Number
HZ900
Jinan FAST CNC Horizontal Drilling Machine Model HZ900 For Drilling On Ring Workpieces
APPLICATION
The machine is used for drilling on ring workpieces.
FEATURES

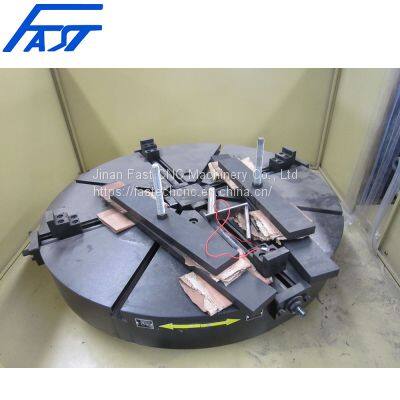

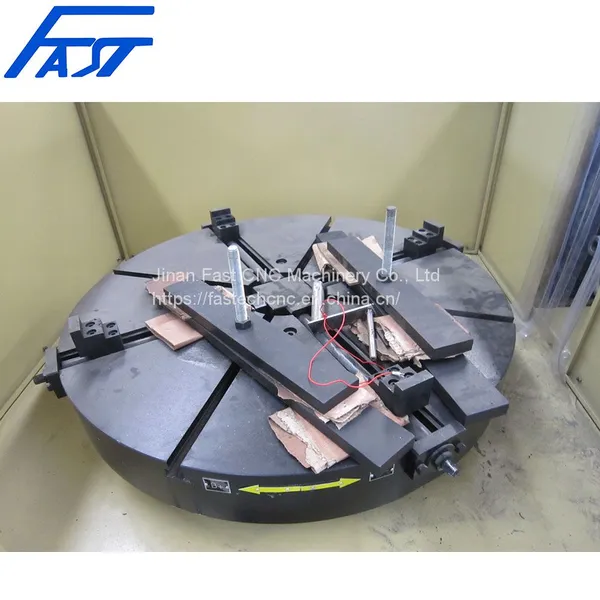

This machine has central chucks on work table in horizon position. The chuck has four claws fixed manually.
Servomotor.
CNC controlling system.
Cooling liquid automatic circulation.
Only inputting the dimension of the workpiece. It can be used repeatedly.
TECHNICAL DATA
| Model | HZ900 |
|
Inner Diameter: φ280~φ880 |
| Outer Diameter: φ300~φ900 | |
| Height: ≤400 | |
| Max. Drilling Diameter (mm) | φ30 |
| Morse Taper | Morse #3 |
| Infeeding Length(mm) | 320 |
| Rotation Speed of Spindle (rpm) | 100~760 |
| Drilling Speed (mm/min) | 30~160 |
| Frequency Converter Stepless Speed Adjustable. | |
| Spindle Power (kW) | 3 |
| Infeeding Servo Motor Power (kW) | 1.5 |
| Rotation Servo Motor Power (kW) | 1.5 |
| Processing Position Accuracy | Circular Direction: ±30 |
★ All of these models can be customized according to customer requirements.
