Hydraulic Linking and Straightening Machine For Formed Steel Pipe Model HX1500 And CS Conveyor Chain Machine
APPLICATION
The machine is used for coiling or bending, pressing & linking of formed steel pipes in order to weld steel pipes easily. Also, it is used for linking and welding of round pipes, taper pipes and prism pipes. The machine has wide application in the petrochemical industry , electric power industry , shipbuilding industry and chemical industry, etc.
DETAILS

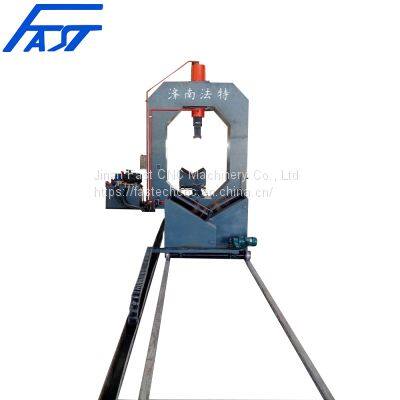

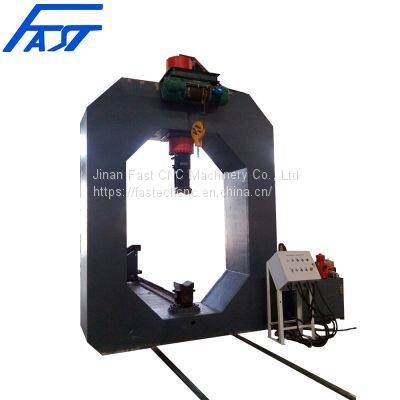

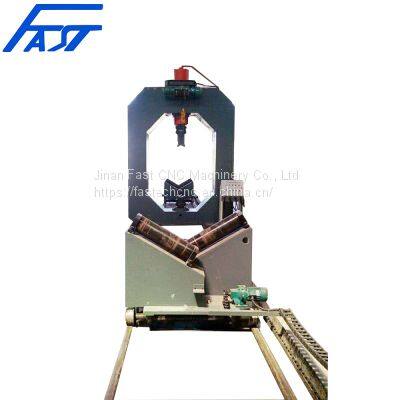

● This machine has main-cylinder on the top and equips one clamping cylinder on both sides. The clamping cylinder can go up and down. This can link various steel pipe with diameter between Ø500mm ~Ø1600mm.
● V-type worktable.
● Electric driving roller in the front and back of the machine. This dismisses the labors.
● The machine can straighten steel pipes by adding supports.
● Machine Body is A closed-frame Structure.
TECHNICAL DATA
| Model | XH150 |
| Pressure of Upper Cylinder (kN) | 1000/2500 (Used for alignment) |
| Stroke of Upper Cylinder (mm) | 500 |
| Pressure of Side Cylinder (kN) | 250 |
| Stroke of Side Sylinder (mm) | 450 |
| Scope of Steelpipe (mm) | Φ500~Φ1500 |
| Up & Down Position of Side Cylinder | Auto adjustment |
| Adjustable Stroke (mm) | 600 |
| Adjustable Way of Steelpipe (mm) | Manual or mechanical |
| Total Power of Motor (kW) | 11/18.5 |
| Overall dimensions L×W×H (m) | 28×6×6 |
★ All of these models can be customized according to customer requirements.
DETAIL IMAGES
