7300 Serious, Ball Bearings, Customized Beaings ,Single Row Angular Contact Ball Bearings,

7300 Serious, Ball Bearings, Customized Beaings ,Single Row Angular Contact Ball Bearings, thumbnail-1
7300 Serious, Ball Bearings, Customized Beaings ,Single Row Angular Contact Ball Bearings, photo-1
US$ 15 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
monton
Place of Origin:
China
Model Number:
7307BEGAP
Contact Supplier Request Quote Chat Now
Luoyang Monton Bearing Science & Technology Co.,ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Beijing
Delivery Detail:
1 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name monton
Place of Origin China
Model Number 7307BEGAP
Number of Row Single Row
Seals Type open or sealed
Precision Rating 50000r/min
Outside Diameter 10, 300
Bore Size 5, 200

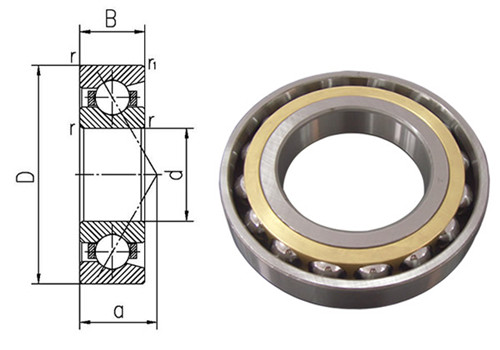

The Single Row Angular Contact Ball Bearings are non-separable and the bearing rings have one high and one low shoulder. The low shoulder enables a large number of balls to be incorporated in the bearing, giving it a relatively high load carrying capacity.

Some large size bearings are available with a flanged outer ring.

In addition, Huihao's single row angular contact ball bearings are available in many other designs, dimension series, and sizes.


low price 3 row roller slewing bearings

low price ball/roller combination slewing bearing

low price bearing with crossed roller

low price bucket wheel excavator slewing bearing

low price combined cylindrical roller/ball slewing bearings

low price crb cross roller bearing crb

low price crb thin-section crossed roller bearings

low price cross roller bearings

low price cross roller slewing bearings

low price cross roller slewing rings

low price crossed roller bearing

low price cylindrical roller and ball combination slewing rings

low price cylindrical roller slewing ring bearings

low price dividing head bearing

low price double axial slewing bearing

low price double row ball slewing bearing

low price double row ball slewing bearings

low price double row ball slewing rings

low price eight-stage basic tandem thrust bearings

low price enclosed slewing drive

low price four point contact slewing rings

low price four-stage tandem bearing

low price hcpv slewing drive

low price ina tandem bearings ina

low price industrial positioners slewing bearing

low price machine tool slewing rings

low price manipulator cross roller bearing

low price medical equipment cross roller bearing

low price offshore turbine slewing bearing

low price precision roller slewing rings

low price ra-c series crossed roller bearing

low price roller slewing rings

low price rotary table bearings

low price slewing ring bearings

low price thin section cross roller bearing

low price thin wall crossed roller bearing

low price three row roller slewing rings

low price three stage tandem thrust bearings

low price tracking bracket slewing drive

low price tri row cylindrical roller slewing bearing

low price turntables slewing rings

low price two stage tandem bearing

low price wind turbine slewing bearings

machine elements in mechanical design pdf

machine tool bearing factory

machine tool bearing in stock

machine tool bearing manufacturers

machine tool bearing suppliers

machine tool bearings

machine tool bearings & accessories inc

machine tool slewing rings

machine tool spindle

machine tool spindle bearing

machine tool spindle bearing manufacturers

machine tool spindle bearings

machine tool spindle factory

machine tool spindle units

machine tool spindles

magnetic ball bearings

main shaft bearing wind turbine

main shaft wind turbine

maintenance wind turbine

manipulator cross roller bearing factory

manipulator cross roller bearing in stock

manipulator cross roller bearing made in china



7300 serious, ball bearings, customized beaings ,Single Row Angular Contact Ball Bearings,
BASIC BORE(d) O.D.(D) WIDTH
WEIGHT
BEARING NUMBER

B 2B

mm mm mm mm kg

inch inch inch inch lb
7300 10 35 11 22 0.04

0.3937 1.378 0.4331 0.8661 0.088
7301 12 37 12 24 0.044

0.4724 1.4567 0.4724 0.9449 0.097
7302 15 42 13 26 0.055

0.5906 1.6535 0.5118 1.0236 0.121
7303 17 47 14 28 0.107

0.6693 1.8504 0.5512 1.1024 0.235
7304 20 52 15 30 0.138

0.7874 2.0472 0.5906 1.1811 0.304
7305 25 62 17 34 0.23

0.9843 2.4409 0.6693 1.3386 0.506
7306 30 72 19 38 0.345

1.1811 2.8346 0.748 1.4961 0.759
7307 35 80 21 42 0.462

1.378 3.1496 0.8268 1.6535 1.016
7308 40 90 23 46 0.625

1.5748 3.5433 0.9055 1.811 1.375
7309 45 100 25 50 0.837

1.7717 3.937 0.9843 1.9685 1.841
7310 50 110 27 54 1.09

1.9685 4.3307 1.063 2.126 2.398
7311 55 120 29 58 1.39

2.1654 4.7244 1.1417 2.2835 3.058
7312 60 130 31 62 1.74

2.3622 5.1181 1.2205 2.4409 3.828
7313 65 140 33 66 2.11

2.5591 5.5118 1.2992 2.5984 4.642
7314 70 150 35 70 2.56

2.7559 5.9055 1.378 2.7559 5.632
7315 75 160 37 74 3.07

2.9528 6.2992 1.4567 2.9134 6.754
7316 80 170 39 78 3.65

3.1496 6.6929 1.5354 3.0709 8.03
7317 85 180 41 82 4.34

3.3465 7.0866 1.6142 3.2283 9.548
7318 90 190 43 86 5.06

3.5433 7.4803 1.6929 3.3858 11.132
7319 95 200 45 90 5.89

3.7402 7.874 1.7717 3.5433 12.958
7320 100 215 47 94 7.18

3.937 8.4646 1.8504 3.7008 15.796
7321 105 225 49 98 8.2

4.1339 8.8583 1.9291 3.8583 18.04
7322 110 240 50 100 9.6

4.3307 9.4488 1.9685 3.937 21.12
7324 120 260 55 110 14.7

4.7244 10.2362 2.1654 4.3307 32.34
7326 130 280 58 116 17.6

5.1181 11.0236 2.2835 4.5669 38.72
7328 140 300 62 124 21.5

5.5118 11.811 2.4409 4.8819 47.3
7330 150 320 65 130 25.1

5.9055 12.5984 2.5591 5.1181 55.22
7332 160 340 68 136 29.8

6.2992 13.3858 2.6772 5.3543 65.56
7334 170 360 72 144 35.3

6.6929 14.1732 2.8346 5.6693 77.66
7336 180 380 75 150 40.9

7.0866 14.9606 2.9528 5.9055 89.98
7338 190 400 78 156 47

7.4803 15.748 3.0709 6.1417 103.4
7340 200 420 80 160 53.1

7.874 16.5354 3.1496 6.2992 116.82
