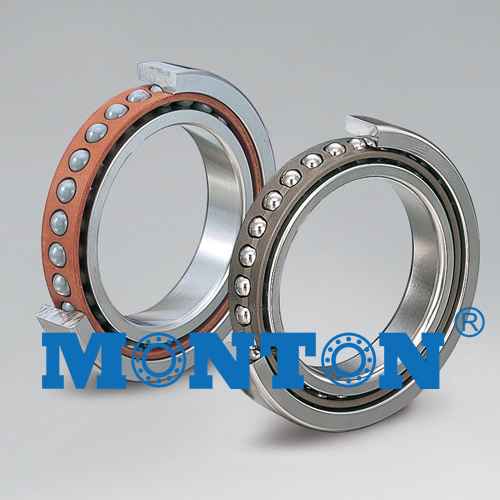

7026ACP5 Brass Cage Combined Angular Contact Ball Bearing With High Speed

7026ACP5 Brass Cage Combined Angular Contact Ball Bearing With High Speed thumbnail-1
7026ACP5 Brass Cage Combined Angular Contact Ball Bearing With High Speed photo-1
US$ 15 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
monton
Place of Origin:
China
Model Number:
7026ACP5
Contact Supplier Request Quote Chat Now
Luoyang Monton Bearing Science & Technology Co.,ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Beijing
Delivery Detail:
1 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name monton
Place of Origin China
Model Number 7026ACP5
Number of Row Single Row
Seals Type open or sealed
Precision Rating 50000r/min
Outside Diameter 10, 300
Bore Size 5, 200

7026ACP5 Brass Cage Combined Angular Contact Ball Bearing With High Speed

Specifications:



Model Number 7026 P5
Brand Name  Montonor OEM
Dimension 130×200×33mm
Weight 3.43KG
Basic Load Rating Dynamic:129KN ;
Static: 137KN
Limiting Speed Grease:4800rpm
Oil:6400rpm
Type Angular Contact Ball Bearing
Seals Type OPEN
Material Chrome Steel ,Carbon Steel, Stainless Steel
Cage material Metal/Brass
Clearance C0,C2,C3,C4,C5
Vibration Z1V1,Z2V2 and Z3V3
Precision Level P0,P6,P5,P4,P2(ABEC1, ABEC3, ABEC5, ABEC7, ABEC9)
Number of Row Single Row
Guarantee One year.
Certifications ISO 9001:2008
Package Box, Carton, Wooden Case, Plastic Tube or Per buyers requierment .
Place of Origin China (Mainland)
MOQ 5PCS
Service (1) Prompt Delivery
(2) OEM
(3) Buyer Label accepted
(4) Follow up and maintainance
Payment Term TT or L/C or Western Union
Port Shanghai/Shenzhen



Description:



Angular contact ball bearings: 7000C-type (α = 15 °), 7000AC-type (α = 25 °) and 7000B (α = 40 °) of several types. The kinds of bearings in the outer ring lock port, the general separation of inside and outside the ring can not be combined radial and axial load and axial load in one direction. Axial load capacity of the decision by the contact angle, contact angle is greater, the ability to withstand high axial loads. This kind of bearing shaft or housing to limit axial displacement in one direction.



1 single row (open type) 70, 72, 73, 718, 719 Series
2 double row (open or sealed) 50, 52, 53, 54 series,


32, 33 series
3 Four-point contact QJ series


1)Single row and combined angular contact ball bearing

The more contact angle is, the larger axial load bearing capacity is,the smaller contact surface is,themuch more convenient high speed rotary is.

Pretension is made on angular contact ball bearing to increase rididity and accuracy of bearing.

This bearing creates axial thrust load when being forced by radial load,thus it is configured(or combined) face to face or back to back.

2)Double row angular contact ball bearing

Double row angular contact ball bearing can be subinitted radial and acial louding limit speed is quite high, it is non-separated type of bearing has high rigid can be submitted doubk direetion of axial load,the bearing could apply with the four row cylindrical bearing together to limit the working roll to move in axial diretion the double row angular contact ball bearing could apply with other bearings as a position bearing.

3)Four point contact ball bearing

Standard structure is that its inner ring is equally divided in axial direction,which is applicable to axial load or combined load,among which acial load is major composition.

Single bearing can bear double row axial load and certain extent radial load.According to different direction of axial load,ring and sphere always contact at two points of linear

Applications:



•Excellent alignment compensation

•Suitable for large radial loads

•Low to medium speed ratings

•Application examples:

1)Agriculture,

2)Light textile,

3)Mining,

4)Food &beverage,

5)Pharmaceutical,

6)Chemical processing,

7)Printing,

8)Dyeing,

9)Airport,

10)Air-conditioning,

11)Various kinds of conveying and rolling devices.



Pictures:



7007c

7007c bearing

7008c

7013 bearing

7018 bearing

air compressor cage

airborne sensors

aislamiento electrico

alignement axial radial

all type bearing

allineamento assiale e radiale

aluminiumfabrik

aluminum factory

anel de rolamento

anello con ingranaggi

angle contact ball bearing factory

angular ac

angular contact ball bearing suppliers

angular contact ball bearings factory

angular contact bearing assembly

angular contact bearings

angular contact bearings factory

angular contact roller bearing

angular contact thin section bearings

angulares de acero

arduino dual axis solar tracker

aslagers

astronomy instrumentation

asverbindingen

atarraxamento

autometrica

axail

axe pour roulement a bille

axe roulement a bille

axial and radial bearing

axial and radial load

axial and radial load bearing

axial and radial loads

axial angular contact ball bearings

axial arrangement

axial arrangement in architecture

bearing 30205

bearing 51101

bearing 6202

bearing 6220

bearing 7013

bearing a cross

caterpillar bearings

caterpillar excavator

caterpillar pl 87

caterpillar products

caterpillar swing

cement mixer bearings

centering bearing

centering material suppliers

cer rodamientos

ceramic angular contact ball bearings factory

ceramic angular contact ball bearings manufacturers

ceramic angular contact ball bearings suppliers

ceramic angular contact bearings





Related Model:



Model Number d D B C C0 limiting speed mass

mm mm mm kn kn r/min kg
7308 BECAP 40 90 23 50 32,5 10000 0,61
7308 BECBJ 40 90 23 49,4 33,5 9000 0,66
7308 BECBM 40 90 23 50 32,5 10000 0,68
7308 BECBP 40 90 23 50 32,5 10000 0,61
7308 BECBPH 40 90 23 50 32,5 10000 0,61
7308 BECBY 40 90 23 49,4 33,5 9000 0,64
7308 BECCY 40 90 23 49,4 33,5 9000 0,64
7308 BEGAF 40 90 23 49,4 33,5 9000 0,68
7308 BEGAM 40 90 23 50 32,5 10000 0,68
7308 BEGAP 40 90 23 50 32,5 10000 0,61
7308 BEGBM 40 90 23 50 32,5 10000 0,68
7308 BEGBP 40 90 23 50 32,5 10000 0,61
7308 BEGBY 40 90 23 49,4 33,5 9000 0,64
7308 BEP 40 90 23 46,2 30,5 9000 0,61
7308 BEY 40 90 23 49,4 33,5 9000 0,64
7408 BCBM 40 110 27 70,2 45 8000 1,40
7408 BGBM 40 110 27 70,2 45 8000 1,40
7408 BM 40 110 27 70,2 45 8000 1,40
7209 BECBJ 45 85 19 37,7 28 9000 0,43
7209 BECBM 45 85 19 38 28,5 10000 0,44
7209 BECBP 45 85 19 38 28,5 10000 0,42
7209 BECBY 45 85 19 37,7 28 9000 0,43
7209 BEGAP 45 85 19 38 28,5 10000 0,42
7209 BEGAY 45 85 19 37,7 28 9000 0,43
7209 BEGBY 45 85 19 37,7 28 9000 0,43
7209 BEP 45 85 19 35,8 26 9000 0,42
7209 BEY 45 85 19 37,7 28 9000 0,43
7309 BECAP 45 100 25 61 40,5 9000 0,82
7309 BECBJ 45 100 25 60,5 41,5 8000 0,86
7309 BECBM 45 100 25 61 40,5 9000 0,90
7309 BECBP 45 100 25 61 40,5 9000 0,82
7309 BECBPH 45 100 25 61 40,5 9000 0,82
