7301BEA 7201BE AHigh Speed Angular Contact Ball Bearing For Undertaking Radial - Axial Union Load
Specifications of Matched Angular Contact Ball Bearing :
■Specifications of Matched Angular Contact Ball Bearings
Matched bearings are used for undertaking radial-axial union load, and also for pure radial load, matched bearings are consist of single row angular contact ball bearings of same standard which mounted in different form, specific forms as following shown:
We can provide universal matching bearing.
Characteristic
1. Bearings with general assembly
Universal matched bearings are specially processed. When the bearings are installed close to each other, any combination can achieve the established internal clearance or preloading, as well as the average load distribution, without using gaskets or similar devices.
Matched bearings are used when the load carrying capacity of a single bearing is insufficient (using channeling configuration) or when combined loads or axial loads acting in two directions (using back-to-back or face-to-face configuration).
2. Basic design of bearings (not for general assembly) for single bearing configuration
The basic design of single row angular contact ball bearings is mainly used in each position with only one bearing configuration. Its width and prominence are ordinary tolerances. Therefore, it is not suitable to install two single row angular contact ball bearings close to each other.
| Model NO. | d(mm) | D(mm) | B(mm) | Weight(kg) |
| 7305C/DB | 25 | 62 | 34 | 0.46 |
| 7305AC/DB | 25 | 62 | 34 | 0.46 |
| 7305B/DB | 25 | 62 | 34 | 0.46 |
| 7006C/DB | 30 | 55 | 26 | 0.22 |
| 7006AC/DB | 30 | 55 | 26 | 0.22 |

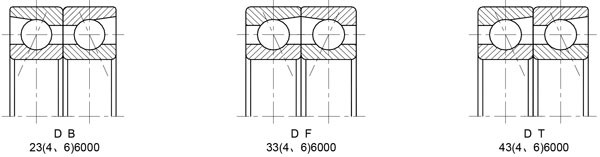

Paired with a group

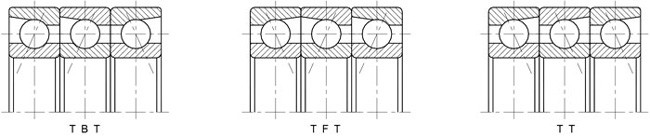

Triple group with

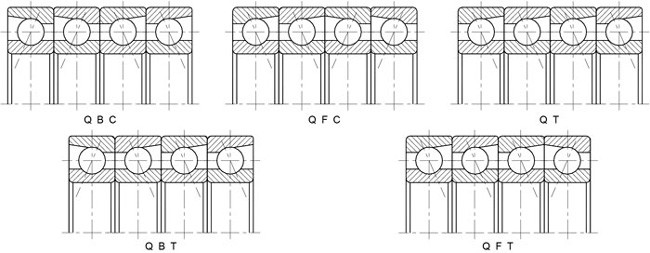

Quadruplet Hotels
Bearing arrangement:
SU: Individual bearing,suitable for any arrangement
DU Duplex set, universal bearings
TU Triplex set, universal bearings
QU Quadruplex set,universal bearings
PU Quintuplex set,universal bearings
