High precision Angular Contact Ball Bearing71816C/ 71816AC SUL P4 Bearing is one kind of ball bearings design. Its dimension is 20×47×14mm , weight is 0.11kg , the material are adopt high quality chrome steel , Angular contact ball bearings have raceways in the inner and outer rings that are displaced with respect to each other in the direction of the bearing axis. This means that they are designed to accommodate combined loads , i.e. simultaneously acting radial and axial loads.
Angular contact ball bearing 71816C/ 71816AC SUL P4 Bearing have raceways in the inner and outer rings that are displaced with respect to each other in the direction of the bearing axis . This means that they are designed to accommodate combined loads, i .e . simultaneously acting radial and axial loads .

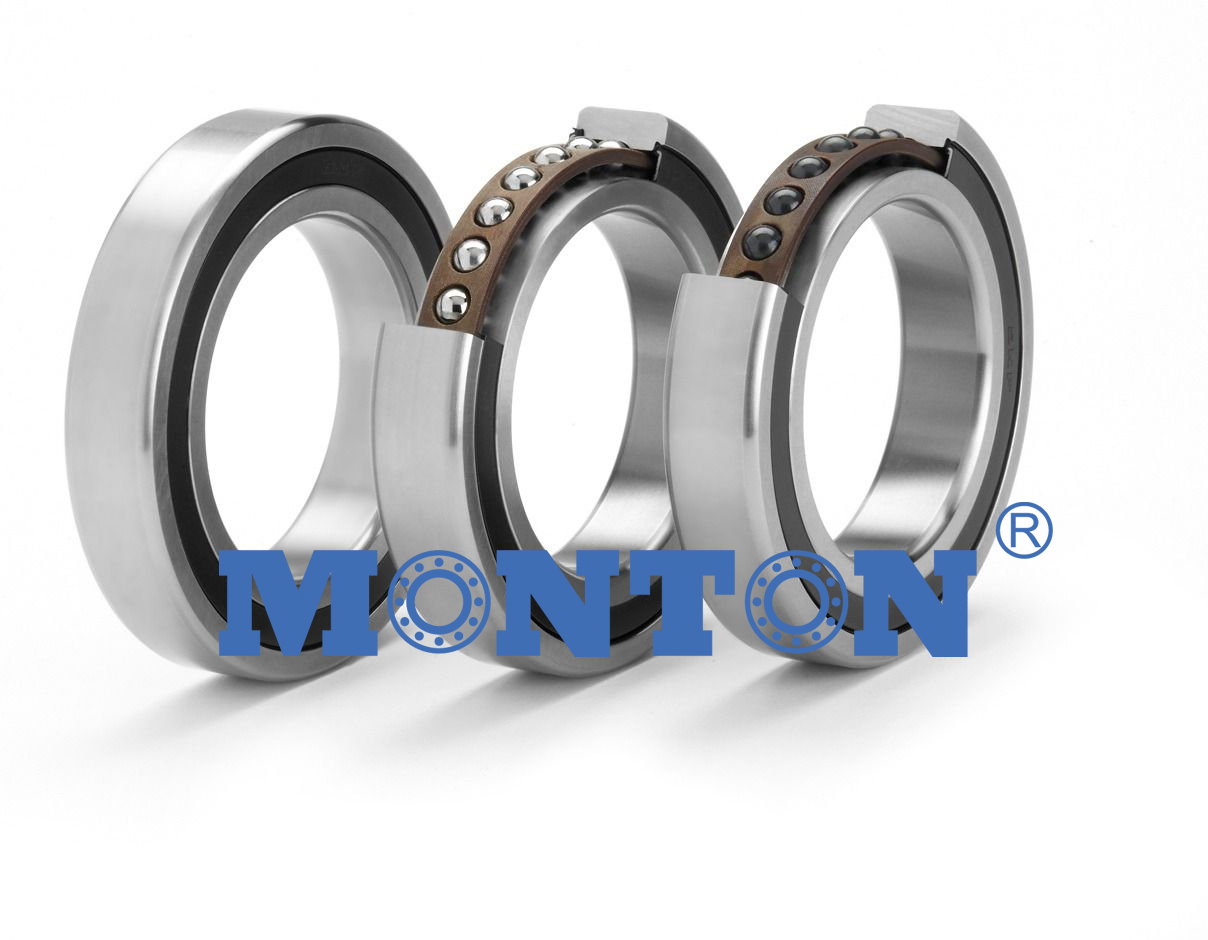

71816C/ 71816AC SUL P4 Angular Contact Ball Bearing 80x100x10mmBall bearing High Speed miniature ball bearing
manlift platform slewing bearing
manlift platform slewing bearing factory
manual worm gear screw jack
marine slewing bearing made in china
marine slewing bearing manufacturers china
material handling equipment slewing rings made in china
material used for machine tool spindle
medical bearing manufacturers
medical equipment bearing made in china
medical equipment cross roller bearing
medical equipment cross roller bearing factory
medical equipment cross roller bearing made in china
medical equipment made in china
medical equipment slewing bearing made in china
medium size slewing bearing in stock
medium size slewing bearing made in china
mobile crane slewing rings made in china
mobile phone exploded view
moment de renversement
montagem de rolamentos de rolos conicos
montagem de rolamentos em x
non standard ball bearings factory
non standard ball bearings manufacturers
non standard bearing factory
non standard bearing manufacturers
non standard bearing suppliers
non standard bearings factory
non standard bearings manufacturer
non standard bearings supplier
non-gear double row bearing made in china
non-geared slewing bearing
non-geared slewing bearing factory
non-geared slewing bearing in stock
non-geared slewing bearing made in china
non-standard bearing manufacturers
offshore turbine slewing bearing
offshore turbine slewing bearing factory
offshore turbine slewing bearing made in china
one spindle one cutter wood lathe china
one spindle one cutter wood lathe factory
one spindle one cutter wood lathe manufacturers
one spindle one cutter wood lathe suppliers
one spindle wood lathe china
one spindle wood lathe factory
one spindle wood lathe machine china
one spindle wood lathe machine factory
one spindle wood lathe machine manufacturers
one spindle wood lathe machine suppliers
precision angular contact ball bearing
precision angular contact ball bearings
precision angular contact bearings
precision ball slewing rings made in china
precision cross roller bearing factory
precision cross roller bearing made in china
precision cross roller slewing ring
precision crossed cylindrical roller slewing bearings
precision crossed roller bearing
precision crossed roller bearing factory
precision crossed roller bearing made in china
precision crossed roller slewing bearings
precision crossed tapered roller bearings
precision cylindrical roller bearings
precision double direction angular contact thrust ball bearings
precision machine tool bearing
precision machine tool bearing factory
precision machine tool bearing in stock
precision spindle bearings
precision spindle bearings size
precision spindle bearings suppliers
precision tapered roller bearings
precision three row cylindrical roller slewing bearing
precision triple row cylindrical roller slewing bearing
ra series crossed cylindrical roller bearing china
ra series crossed cylindrical roller bearing made in china
ra series crossed cylindrical roller bearing manufacturers china
ra series crossed cylindrical roller bearing price
ra series crossed cylindrical roller bearing suppliers china
ra series crossed roller bearings
ra series crossed roller bearings factory
ra series crossed roller bearings for sale
ra series crossed roller bearings in stock
ra series crossed roller bearings manufacturers
ra series crossed roller bearings price
ra-c series crossed roller bearing
ra-c series crossed roller bearing factory
ra-c series crossed roller bearing in stock
ra-c series crossed roller bearing made in china
radar slewing bearings factory
radar slewing bearings in stock
radar slewing bearings made in china
radial spherical plain bearing non-standard
radial spherical plain bearing non-standard manufacturer
radial spherical plain bearing non-standard supplier
radial spherical plain bearings
rb cross cylindrical roller bearing
rb crossed cylindrical roller bearing
rb series crossed cylindrical roller bearing
rb series crossed cylindrical roller bearing china
rb series crossed cylindrical roller bearing made in china
rb series crossed cylindrical roller bearing manufacturers china
rb series crossed cylindrical roller bearing price
rb series crossed cylindrical roller bearing suppliers china
|
718 series of thin wall angular contact ball bearings |
|||||||||
| Model | Outer size | 〆15º | 〆25º | Cage material | |||||
| Extreme speed | Extreme speed | ||||||||
| internal diameter | external diameter | height | Rated load | Leaf fat | Rated load | Leaf fat | |||
| Cr Cor | Grease Oil | Cr Cor | Grease Oil | ||||||
| 71800C | 10 | 19 | 5 | 1.8 1.1 | 74000 119000 | 1.7 1.1 | 69000 109000 | Bakelite | |
| 71801C | 12 | 21 | 5 | 2.0 1.4 | 69000 109000 | 1.9 1.3 | 62000 94000 | Bakelite | |
| 71802C | 15 | 24 | 5 | 2.2 1.8 | 59000 89000 | 2.1 1.7 | 53000 79000 | Bakelite | |
| 71803C | 17 | 25 | 5 | 2.3 1.9 | 52000 79000 | 2.1 1.8 | 49000 74000 | Bakelite | |
| 71804C | 20 | 32 | 7 | 3.9 3.4 | 44000 66000 | 3.7 3.2 | 39000 59000 | Bakelite | |
| 71805C | 25 | 37 | 7 | 4.2 4.1 | 37000 55000 | 3.9 3.9 | 33000 49000 | Bakelite | |
| 71806C | 30 | 42 | 7 | 4.4 4.8 | 31000 47000 | 4.1 4.5 | 27000 42000 | Bakelite | |
| 71807C | 35 | 47 | 7 | 4.6 5.5 | 25000 39000 | 4.3 5.2 | 23000 37000 | ||
| 71808C | 40 | 52 | 7 | 4.8 6.2 | 23000 37000 | 4.5 5.8 | 19000 33000 | Bakelite | |
| 71809C | 45 | 58 | 7 | 4.9 6.7 | 19000 33000 | 4.6 6.3 | 17000 29000 | Bakelite | |
| 71810C | 50 | 65 | 7 | 7.4 10.0 | 17000 29000 | 6.9 9.5 | 15000 25000B | ||
| 71811C | 55 | 72 | 9 | 10.2 13.8 | 15000 25000 | 9.6 13.1 | 14000 23000 | Bakelite | |
| 71812C | 60 | 78 | 10 | 13.4 18.0 | 14000 23000 | 12.6 17.0 | 13000 21000 | Bakelite | |
| 71813C | 65 | 85 | 10 | 13.4 18.8 | 13000 21000 | 12.6 17.8 | 12000 19000 | Bakelite | |
| 71814C | 70 | 90 | 10 | 13.8 20.3 | 12000 19000 | 13.0 19.1 | 11000 18000 | Bakelite | |
| 71815C | 75 | 95 | 10 | 14.2 21.7 | 11000 18000 | 13.3 20.5 | 10000 17000 | Bakelite | |
| 71816C | 80 | 100 | 10 | 14.5 23.1 | 10000 17000 | 13.6 21.8 | 85000 15000 | Bakelite | |
| 71817C | 85 | 110 | 13 | 21.5 32.2 | 9000 16000 | 20.2 30.5 | 8000 14000 | Bakelite | |
| 71818C | 90 | 115 | 13 | 21.7 33.5 | 8500 15000 | 20.4 31.6 | 7500 13000 | Bakelite | |
| 71819C | 95 | 120 | 13 | 21.9 34.7 | 8000 14000 | 20.6 32.8 | 7500 13000 | Bakelite | |
| 71820C | 100 | 125 | 13 | 22.5 37.0 | 7500 13000 | 21.2 34.9 | 7000 12000 | Bakelite | |
| 71821C | 105 | 130 | 13 | 22.7 38.3 | 7500 13000 | 21.3 36.1 | 7000 12000 | Bakelite | |
| 71822C | 110 | 140 | 16 | 31.8 51.6 | 7000 12000 | 29.9 48.7 | 6500 11000 | Bakelite | |
| 71824C | 120 | 150 | 16 | 33.1 56.9 | 60000 10000 | 31.3 53.7 | 5700 9000 | Bakelite | |
| 71826C | 130 | 165 | 18 | 38.7 67.6 | 5700 9000 | 36.3 63.8 | 5000 8000 | Bakelite | |
| 71828C | 140 | 175 | 18 | 44.8 79.2 | 5000 8000 | 42.0 74.7 | 4600 7500 | Bakelite | |
| 71830C | 150 | 190 | 20 | 51.2 92.0 | 4600 7500 | 48.0 86.8 | 4000 6500 | Bakelite | |
| 71832C | 160 | 200 | 20 | 52.4 97.7 | 4000 6500 | 49.2 92.2 | 3800 6000 | Bakelite | |
| 71834C | 170 | 215 | 22 | 66.5 123.4 | 3800 6000 | 62.4 116.5 | 3300 5300 | Bakelite | |
| 71836C | 180 | 225 | 22 | 159.7 249.1 | 3500 5700 | 150.6 235.9 | 3000 5000 | Bakelite | |
| 71838C | 190 | 240 | 24 | 159.7 249.2 | 3501 5700 | 150.6 235.10 | 3001 5000 | Bakelite | |
| 71840C | 200 | 250 | 24 | 159.7 249.3 | 3502 5700 | 150.6 235.11 | 3002 5000 | Bakelite | |
| 71844C | 220 | 270 | 24 | 159.7 249.4 | 3503 5700 | 150.6 235.12 | 3003 5000 | Bakelite | |
| 71848C | 240 | 300 | 28 | 159.7 249.5 | 3504 5700 | 150.6 235.13 | 3004 5000 | Bakelite | |
| 71852C | 260 | 320 | 28 | 159.7 249.6 | 3505 5700 | 150.6 235.14 | 3005 5000 | Bakelite | |
| 71856C | 280 | 350 | 33 | 159.7 249.7 | 3506 5700 | 150.6 235.15 | 3006 5000 | Bakelite | |
| 71860C | 300 | 380 | 38 | 159.7 249.8 | 3507 5700 | 150.6 235.16 | 3007 5000 | copper | |
| 71864C | 320 | 400 | 38 | 159.7 249.9 | 3508 5700 | 150.6 235.17 | 3008 5000 | copper | |
| 71868C | 340 | 420 | 38 | 159.7 249.10 | 3509 5700 | 150.6 235.18 | 3009 5000 | copper | |
| 71872C | 360 | 440 | 38 | 159.7 249.11 | 3510 5700 | 150.6 235.19 | 3010 5000 | copper | |
| 71876C | 380 | 480 | 46 | 159.7 249.12 | 3511 5700 | 150.6 235.20 | 3011 5000 | copper | |
| 71880C | 400 | 500 | 46 | 159.7 249.13 | 3512 5700 | ||||
