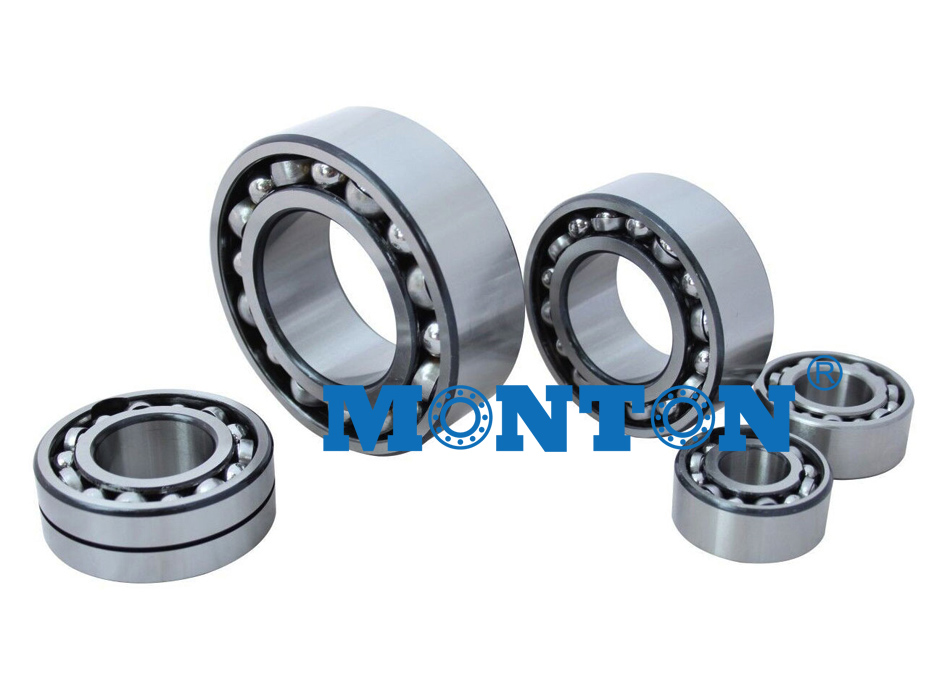

Help Center7207ACP4/DBB Angular Contact Ball Bearing 7207AC 46207 Radial Axial Bearing Single Row
Related Products
-
7026ACP5 Brass Cage Combined Angular Contact Ball Bearing With High SpeedUS$ 15 - 100MOQ: 1 Piece -
71816CP5 Thin Wall High Speed Angular Contact Ball Bearing Spindle Bearing for Machine ToolUS$ 15 - 100MOQ: 1 Piece
-
7004CTRDULP4Y With 15° Contact Angle Super Precision Angular Contact Ball Bearing for Machine Tool SpindleUS$ 15 - 100MOQ: 1 Piece
-
Angular Contact Ball Bearing 7306C Single Row Bearing 30*72*19mm Ceramic Angular Contact Ball Bearing ManufacturersUS$ 15 - 100MOQ: 1 Piece
-
7312ACP4DBB Stainless Steel High Precision Angular Contact Ball Bearing Single Row Single Spindle Wood Lathe MachineUS$ 15 - 100MOQ: 1 Piece
Radial Axial Bearing 7207 Angular Contact Ball Bearing 7207AC, 46207 Single Row Ball Bearing, 35×72×17mm
Radial Axial Bearing 7207 Description:
Suffix meaning:
A: 15 degree contact angle
AC: 25 degree contact angle
C: 30 degree contact angle
B: 40 degree contact angle
The greater the contact angle, the higher the ability to withstand the axial load.
For 7207AC bearing, it is 25 degree contace angle angular contact ball bearing
| Product Model: | 7207AC, 7207, 46207 |
| Structure: | Angular contact ball bearing, single row |
| Inside Diameter: | 35 mm |
| Outside Diameter: | 72 mm |
| Thickness: | 17 mm |
| Seals Type: | Open |
| Material: | Chrome steel, Gcr15 |
| Precision Rating: | P0, P6, P5 (ABEC1, ABEC3, ABEC5) |
| Brand: | TOPE or Neutral or OEM |
| Weight: | 0.305 KG |
| Payment term: | T/T, L/C, Western Union, PayPal |
| Delivery time: | 3-7 days for small amout, 10-30 days for big amount |
Angular Contact Ball Bearing 7207AC Max Load:
In general, maximum load on angular contact ball bearing 7207AC is proportional to outer diameter of the bearing times the width of the bearing (where width is measured in direction of axle).
46207 single row ball bearings have static load ratings. These are based on not exceeding a certain amount of plastic deformation in the raceway. These ratings may be exceeded by a large amount for certain applications.
Related Angular Contact Ball Bearing Model List:
| Model Number | Old Model | Size (mm) | Weight (kg) |
| 7207AC | 46207 | 35×72×17 | 0.305 |
| 7207AC | 46207J | 35×72×17 | 0.305 |
| 7207ACJ | 46207 | 35×72×17 | 0.31 |
| 7207ACN2J | 46207K | 35×72×17 | 0.344 |
| 7208AC | 46208 | 40×80×18 | 0.361 |
| 7208AC | 46208J | 40×80×18 | 0.361 |
| 7208ACJ | 46208K | 40×80×18 | - |
| 7208ACJ | 46208 | 40×80×18 | 0.37 |
| 7209AC | 46209 | 45×85×19 | 0.41 |
| 7209AC | 46209J | 45×85×19 | 0.42 |
| 7209ACTN1 | 46209A | 45×85×19 | 0.41 |
| 7209ACM | 46209M | 45×85×19 | 0.414 |
| 7209ACJ | 46209 | 45×85×19 | 0.42 |
| 7209ACJ | 46209F | 45×85×19 | 0.41 |
| 7210AC | 46210 | 50×90×20 | 0.45 |
| 7210AC | 46210J | 50×90×20 | 0.572 |
| 7210ACJ | 46210 | 50×90×20 | 0.47 |
| 7210ACJ | 46210F | 50×90×20 | 0.47 |
| 7210ACM | 46210H | 50×90×20 | 0.572 |
Angular Contact Ball Bearing Precision:
The accuracy grade of angular contact ball bearing includes dimension tolerance and rotation accuracy. The accuracy from low to high is expressed as P0 (normal), P6 (P6X), P5, P4 and P2. In addition, European and American brands also use P3, P7 and P9 to express accuracy level. P3 is equivalent to P6 level of ISO and JIS standard, P7 is equivalent to P4 level, P9 is equivalent to P2 level.
Angular Contact Ball Bearing 7207AC Package:
For Radial Axial Bearing 7207 Angular Contact Ball Bearing 7207AC, 46207 Single Row Ball Bearing, you can choose from below shipping methods.
1. Individual package: individual paper box + paper carton + wooden pallet
2. Industrial package: plastic tube + paper carton + wooden pallet
craft paper + paper carton + wooden pallet
If you use bearings by yourself, we suggest industrial pacakge, because this pacakge is cheaper compared with industrial pacakge.
3. As customer's demand
