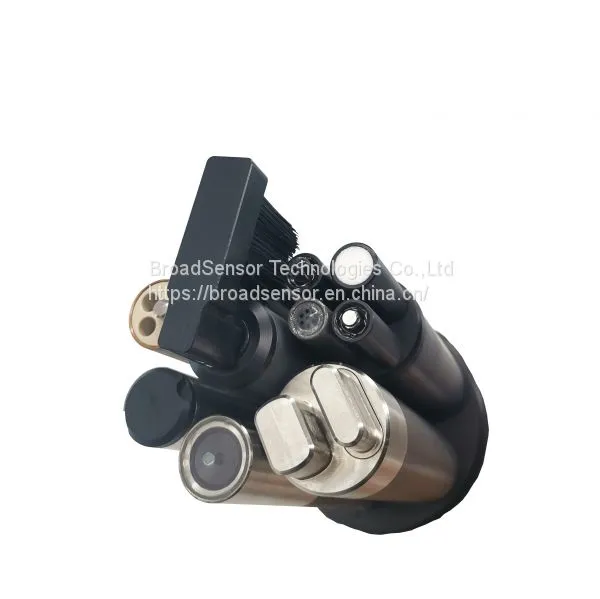

Help CenterOnline Ammonium With pH Sensor, ORP Sensor, NH4-N, NH4+, K+
Related Products
-
Online Multiparameter Water Quality Sonde ODO, UV254 COD,OIW, PH, Ammonium, Conductivity, Turbidity, ChlorophyllUS$ 8 - 8MOQ: 1 Piece -
Online Multiparameter Water Quality Sonde ODO, UV254 COD,OIW, PH, Ammonium, Conductivity, Turbidity, ChlorophyllUS$ 8 - 8MOQ: 1 Piece
-
Online Turbidity Sensor, RS485 Output, NTU, Water Quality Monitoring Sensor, MLSS, SSUS$ 8 - 8MOQ: 1 Piece
-
Online Turbidity Sensor, RS485 Output, Multi-parameter Sonde, NTUUS$ 8 - 8MOQ: 1 Piece
-
Online Optical DO Sensor One Sonde of Multiparameter Sensor, Temperature Compensation, RS485 OutputUS$ 8 - 8MOQ: 1 Piece
Broadsensor online ISE (NH4+ pH ORP/K+) sensor with integrated digital electronics for plug and play capability with Broadsensor multi-parameter sonde platform and IP68 connector to any PLC or RTU. It has a unique design that incorporates a user-replaceable electrode tip (module) and a reusable sensor base that houses the processing electronics. This allows users to reduce the costs and easy to maintain.
Key Advantage：
• Polymer membrane ISE ammonium and potassium electrode.
• a potassium chloride (KCl) solution reference.
• Isolator and NTC10K inside, easy to use.
• User-replaceable ammonium, potassium, pH, ORP, reference electrode,reusable sensor base.
• RS485 output, Modbus protocol.
• IP68 connector.
• All parts designed and made by Broadsensor including ISE.
Note: Freshwater application only.
| Item | Technical Specification |
|---|---|
Measurement Method |
Polymer membrane ISE electrode, glass pH, platinum ORP and KCL reference |
| Range |
0.5-1000ppm NH4 +/0-14 pH/-999~+999mV ORP/0.5-1000ppm K+ |
| Resolution |
0.01ppm/0.01pH/1mV/0.01ppm |
Accuracy |
5%FS /±0.2pH/±20mV/5%FS (freshwater, conductivity |
Operating temperature |
5~45℃ |
Storage Temperature |
-10~50℃
|
| Min. Detection Limit | 0.05ppm/NA/NA/0.05ppm |
Warranty |
1 year(sensor base and ORP), 3 months (electrode) |
Depth |
IP68, 10m Max |
Power |
DC 5V ±5%, 0.5W(normal) |
output |
RS485 and Modbus RTU |
Materials |
POM, TA |
Dimensions |
Length 186mm, diameter 35.3mm |
Flow rate |
|
Response time |
Minimum 45s T90 |
Field life* |
Sensor base 2 years or greater, NH4 +/K+ 6 months, pH/Ref electrode 12 months or greater |
Recommended Calibration
maintain Frequency *
|
NH4+/K+ 2-3 weeks, pH/Ref 4-8 weeks |
Note: *Field life and calibration frequency dependent on site conditions
